Steering Column Disassembly/Assembly: Notes

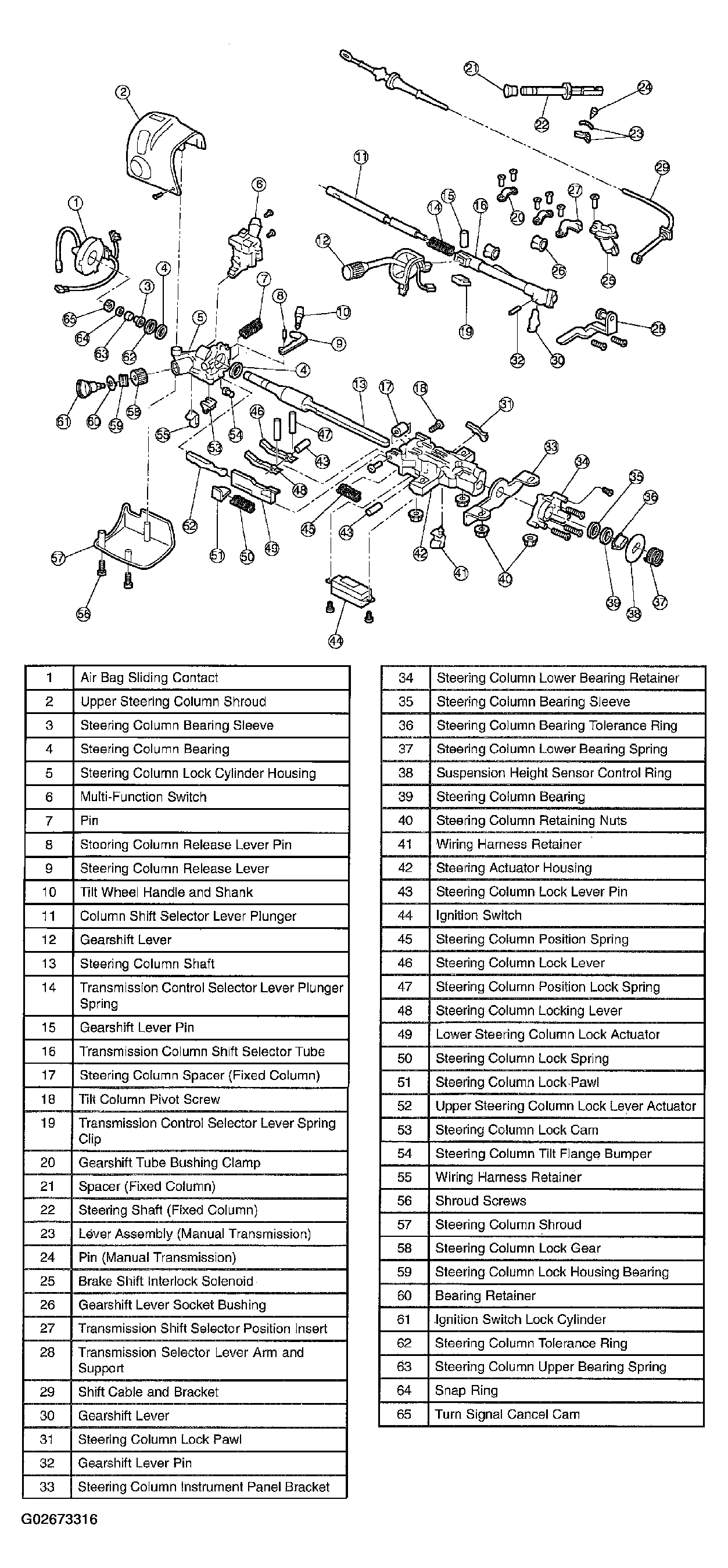

Fig 1: Exploded View Of Steering Column

G02673316

Courtesy of MAZDA MOTORS CORP.
