Ignition Switch Inspection

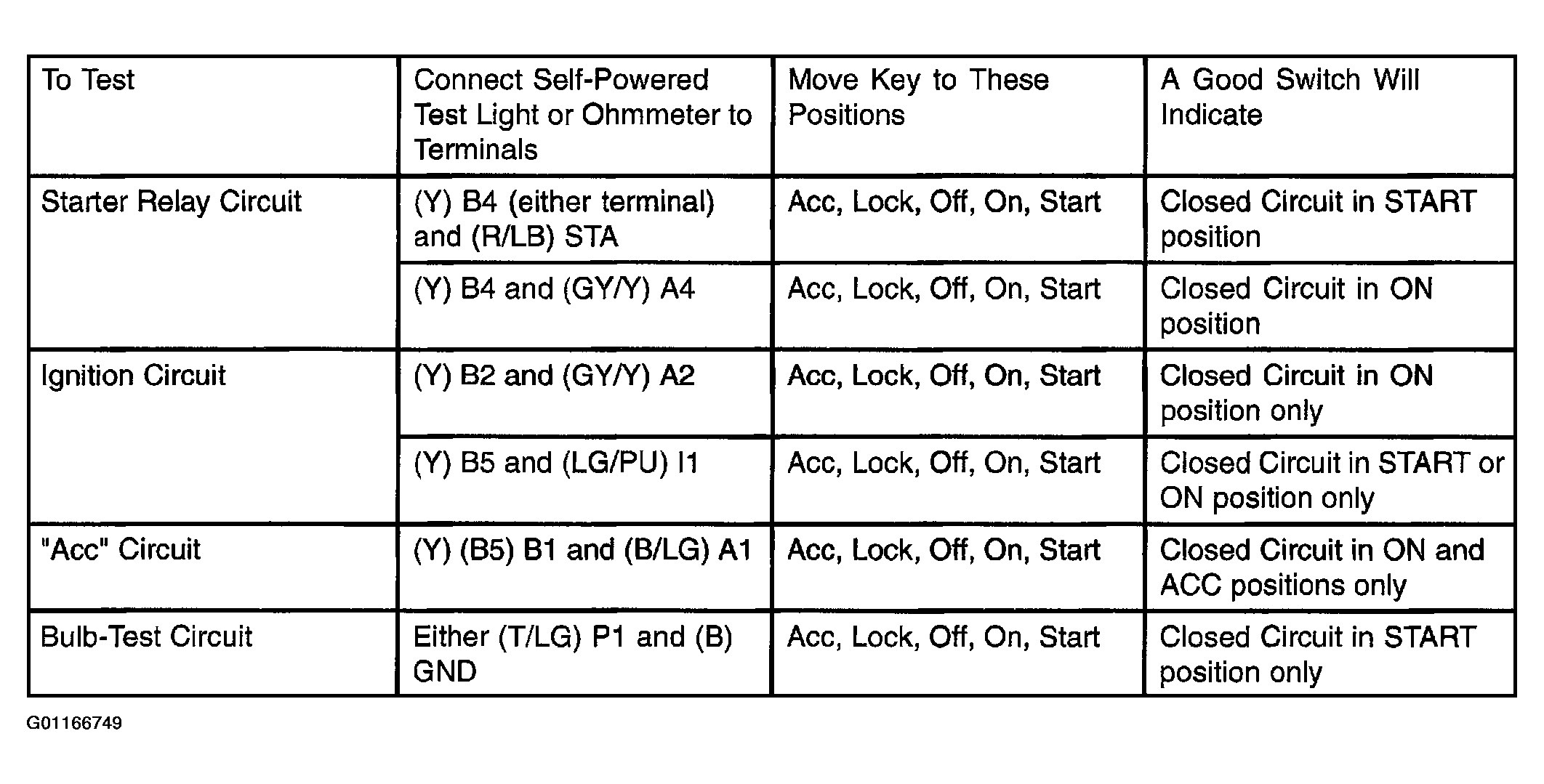

Fig 1: Inspection Ignition Switch
Courtesy of MAZDA MOTORS CORP.
Courtesy of MAZDA MOTORS CORP.
