Central Security Module Removal/Installation

CAUTION: Electronic modules are sensitive to electrical charges. If exposed to these charges, damage may result.
  1. Disconnect the negative battery cable.
  2. Remove the passenger air bag module. See PASSENGER-SIDE AIR BAG MODULE .
  3. Reposition the central security module.
    1. Remove the three screws.
    2. Pull the central security module straight out from the bracket.
  4. Disconnect the two electrical connectors.

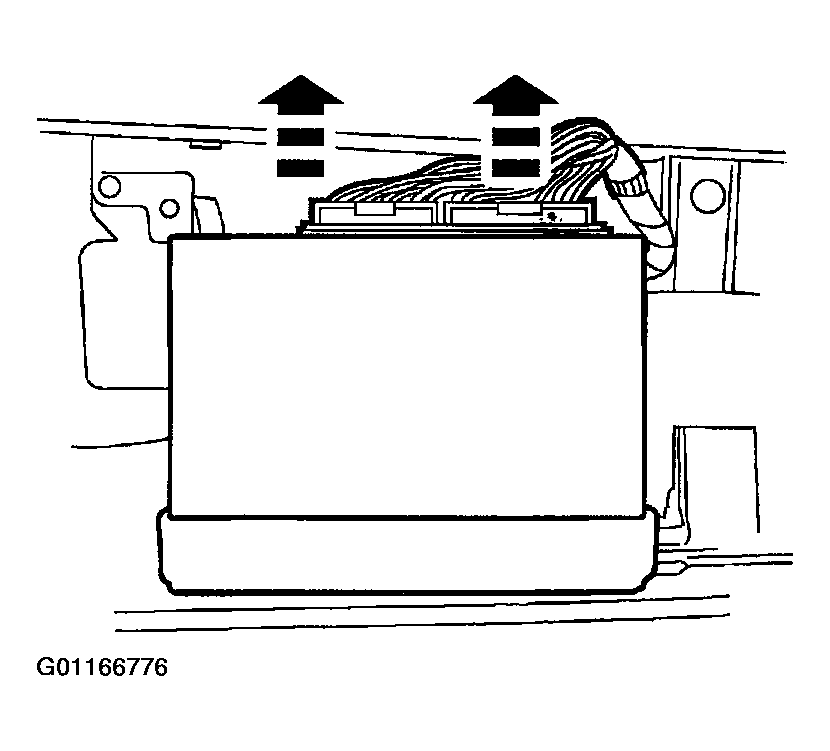

    Fig 1: Disconnecting Central Security Module Electrical Connectors
    G01166776Courtesy of MAZDA MOTORS CORP.
  5. Remove the bracket from the central security module.

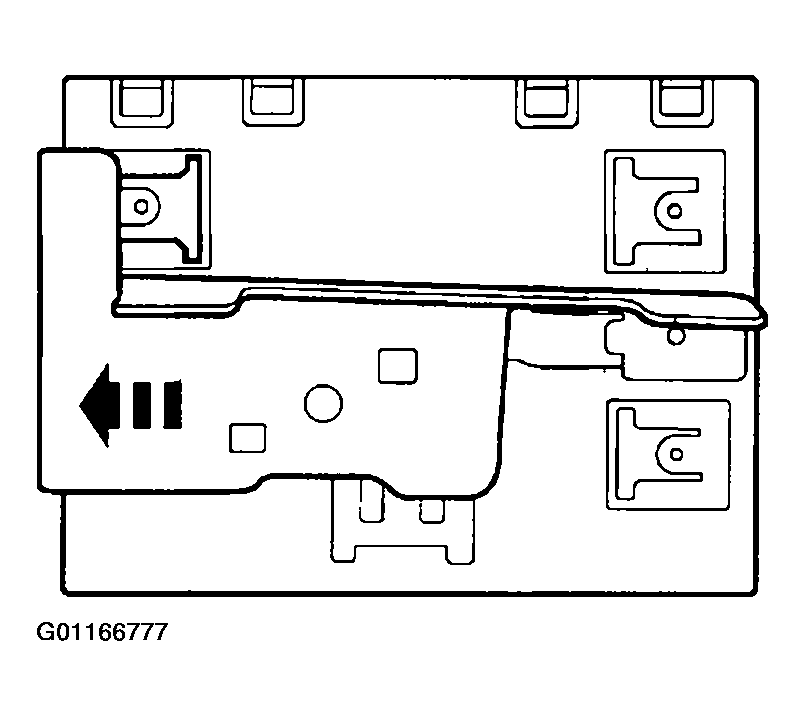

    Fig 2: Removing Bracket
    G01166777Courtesy of MAZDA MOTORS CORP.
  6. To install, reverse the removal procedure.
