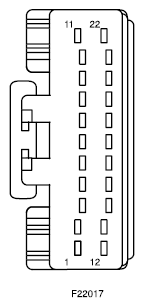

| 1 |
195 (TN/WH) |
Voltage supplied at all times (overload protected) |
| 2 |
14 (BN) |
Ground |
| 3 |
- |
not.used |
| 4 |
- |
not.used |
| 5 |
- |
not.used |
| 6 |
- |
not.used |
| 7 |
- |
not.used |
| 8 |
- |
not.used |
| 9 |
120 (PK/LG) |
Door unlock, control |
| 10 |
1013 (BN/LG) |
GEM/Central security module illumination, signal |
| 11 |
118 (PK/LG) |
Door unlock, output |
| 12 |
645 (WH/LB) |
Voltage supplied at all times (overload protected) |
| 13 |
570 (BK/WH) |
Ground |
| 14 |
- |
not used |
| 15 |
- |
not used |
| 16 |
- |
not used |
| 17 |
119 (PK/YE) |
Door lock, control |
| 18 |
- |
not used |
| 19 |
- |
not used |
| 20 |
- |
not used |
| 21 |
- |
not used |
| 22 |
117 (PK/BK) |
Door look, output |
