Multi-Function Switch Removal/Installation

Disconnect the negative battery cable.
Remove the ignition lock cylinder. See LOCK CYLINDER REMOVAL/INSTALLATION .
If equipped, remove the tilt wheel handle.
Remove the upper and lower steering column shrouds.
Remove in order shown in Fig 1 .
1. Screws
2. Connectors
3. Switch

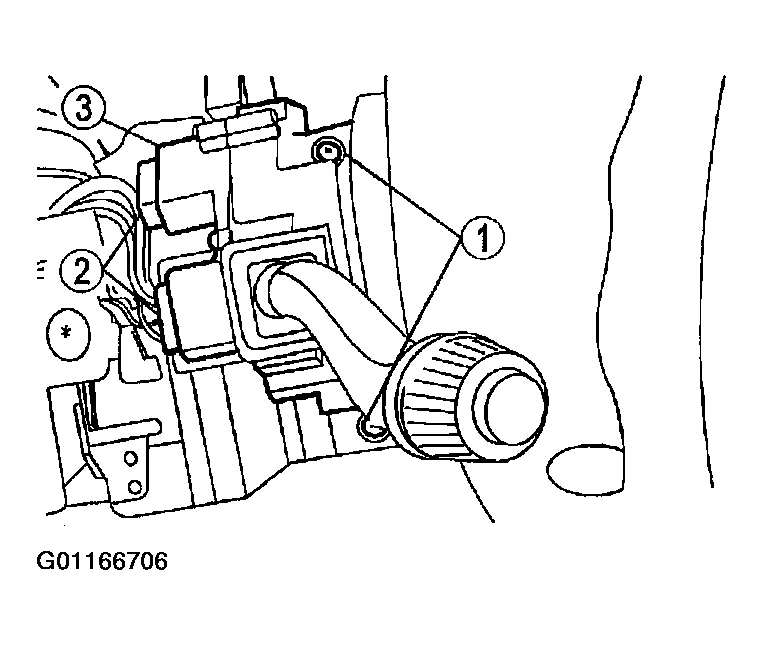

Fig 1: Removing Multifunction Switch
Courtesy of MAZDA MOTORS CORP.
Install in reverse order of removal.
1. Tightening Torque
2. 2-3 N.m {20-31 kgf.cm, 18-26 in.lbf}
