No Power In Run: Notes

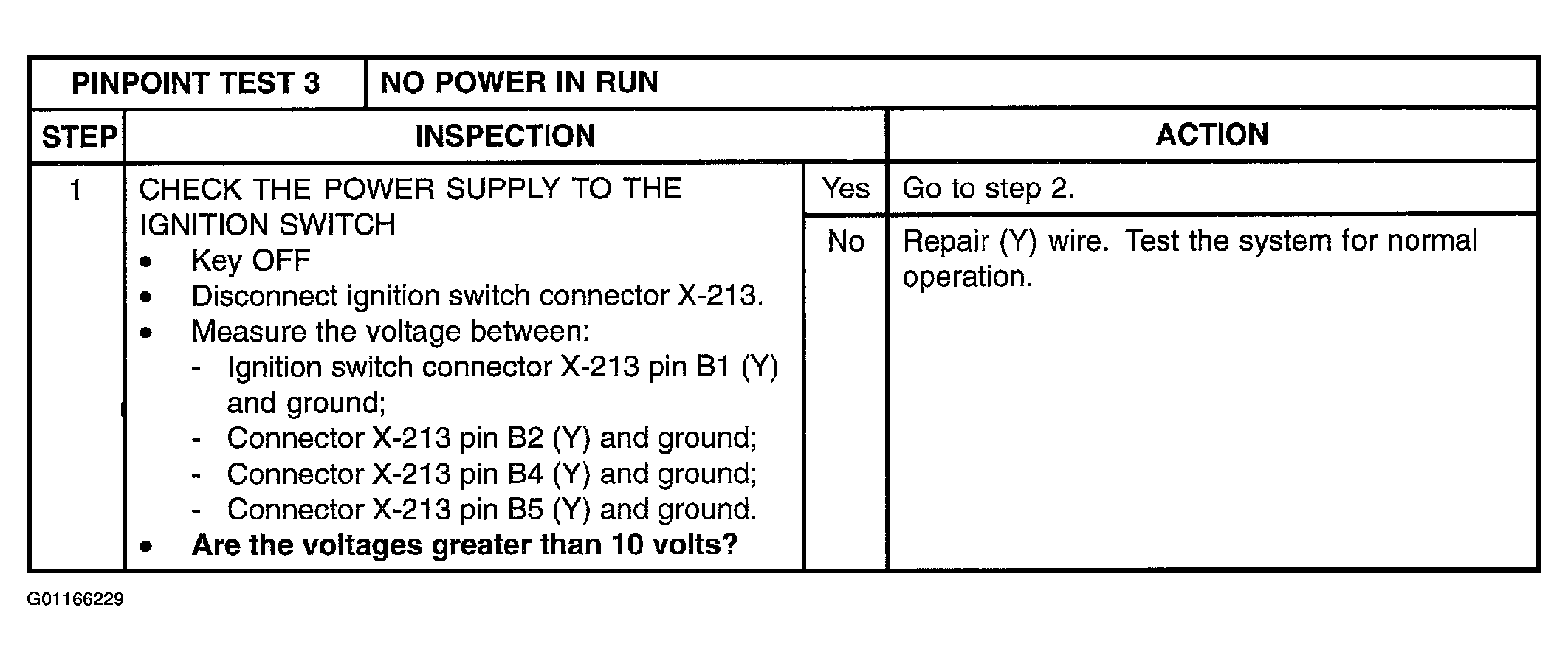

Fig 1: Pinpoint Test 3: No Power In Run (Step 1)
G01166229Courtesy of MAZDA MOTORS CORP.

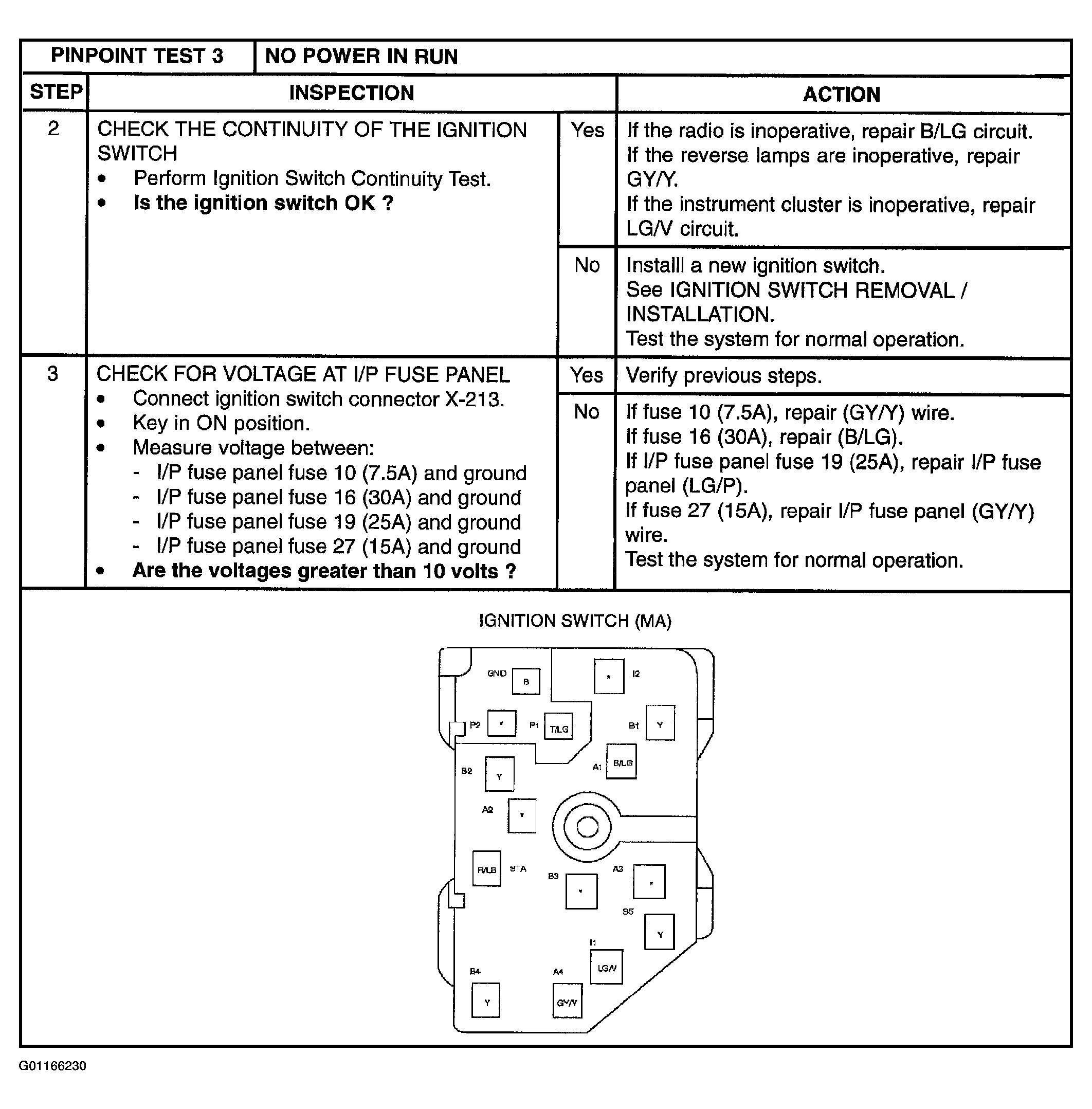

Fig 2: Pinpoint Test 3: No Power In Run (Steps 2-3)
G01166230Courtesy of MAZDA MOTORS CORP.
