Front Door Disassembly/Assembly: Notes

  1. Lower or raise the front door glass so that the distance from the top of the front door glass at the rear end to the upper part of the front belt line molding is 185 mm {7.3 in}.
  2. Disconnect the negative battery cable.
  3. Remove the front door trim. See FRONT DOOR TRIM REMOVAL/INSTALLATION .
  4. Disassemble in the order indicated in the illustration.
  5. Assemble in the reverse order of disassembly.
Fig 1: Setting Window Height
G01196278Courtesy of MAZDA MOTORS CORP.

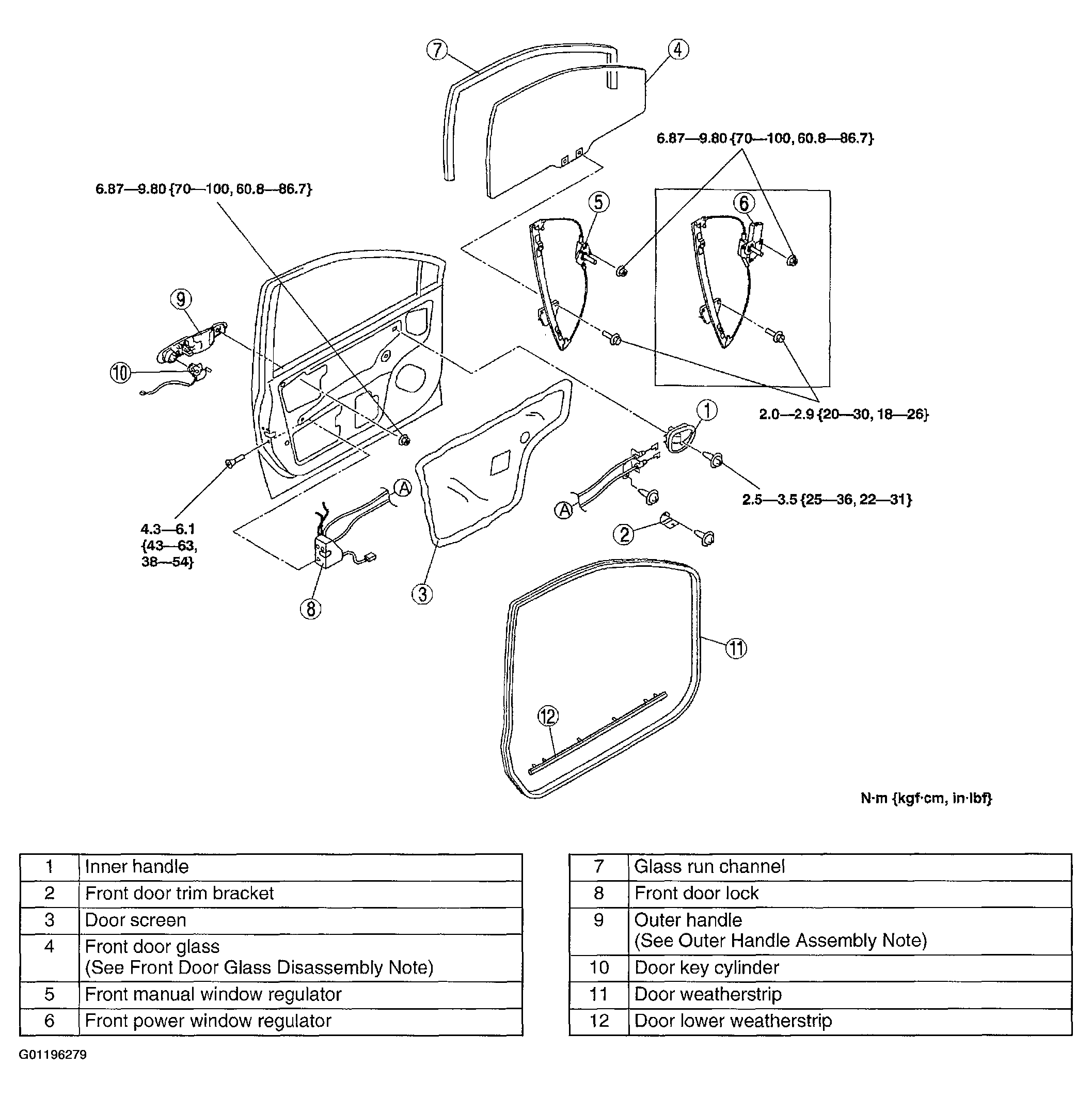

Fig 2: Exploded View Front Door
G01196279Courtesy of MAZDA MOTORS CORP.
