Outer Handle Assembly Note

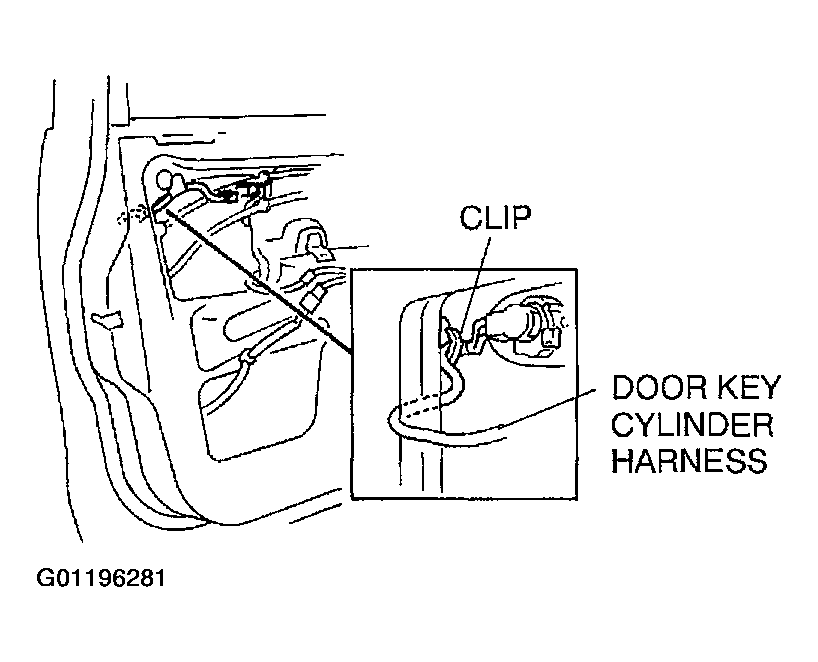

  1. Connect the door key cylinder harness of outer handle as shown.
Fig 1: Connecting Door Key Cylinder Harness
G01196281Courtesy of MAZDA MOTORS CORP.
