Front Scuff Plate Removal/Installation

  1. Pull the front scuff plate upward, then disengage clips A, pin B and hooks C from the body, and remove the front scuff plate.
  2. Install in the reverse order of removal.

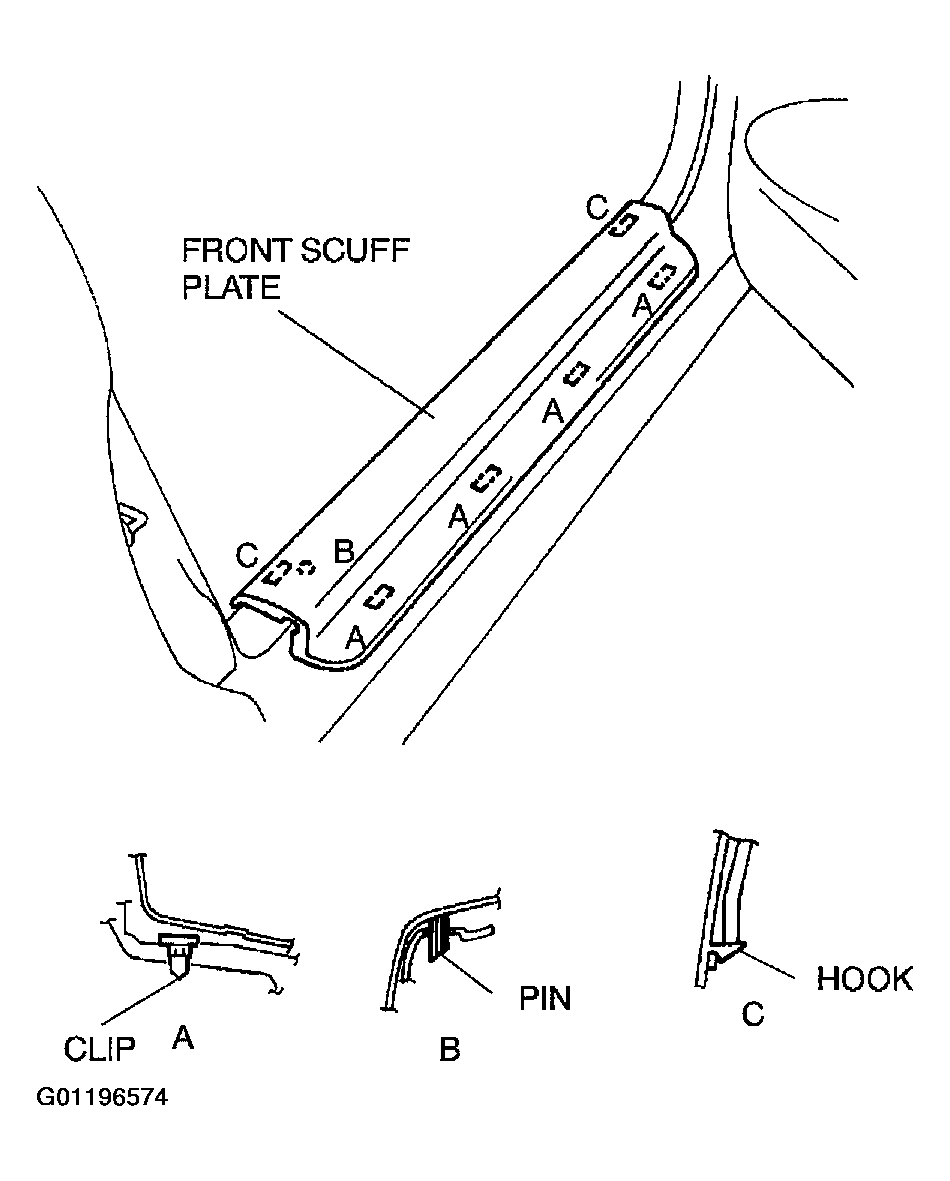

Fig 1: Removing Front Scuff Plate
G01196574Courtesy of MAZDA MOTORS CORP.
