Diagnostic Trouble Codes Reading Procedure Using WDS Or Equivalent: Notes
Connect WDS or equivalent to the vehicle DLC-2 16-pin connector located on the left side of the steering column.
Retrieve DTC by WDS or equivalent.

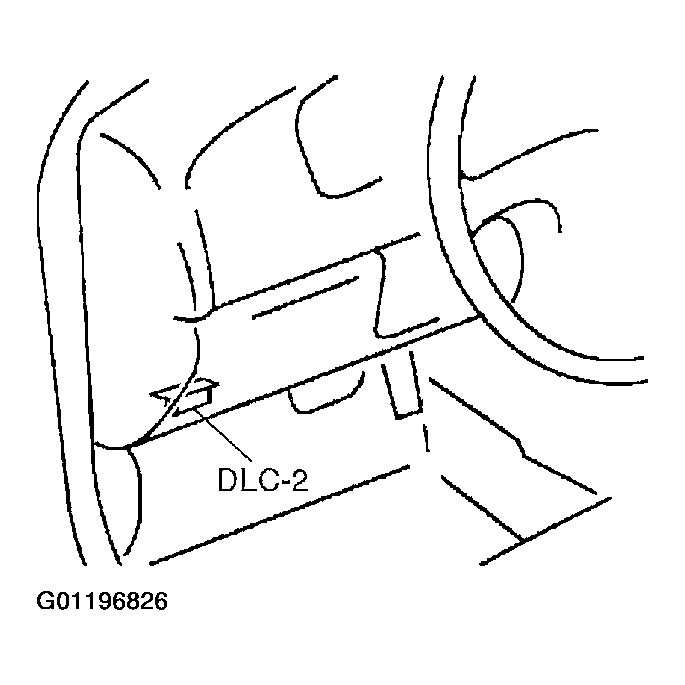

Fig 1: Locating DLC-2
Courtesy of MAZDA MOTORS CORP.
