Diagnostic Procedure

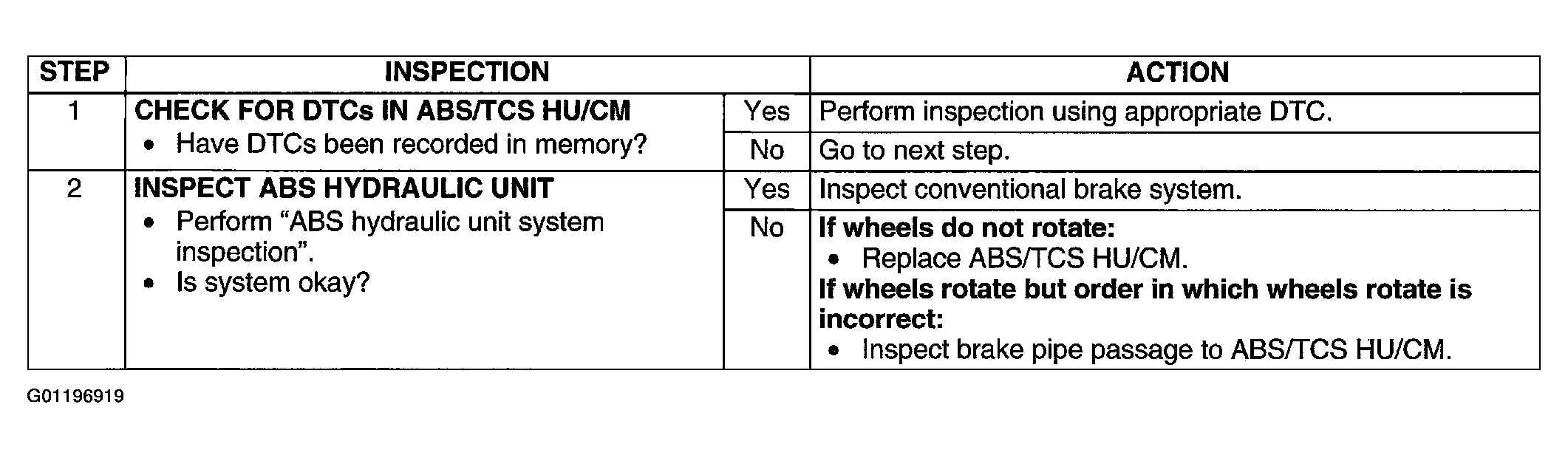

Fig 1: No. 12 Brake & TCS System Malfunction (With TCS) Diagnostic Procedure
G01196919Courtesy of MAZDA MOTORS CORP.
