Flasher Control Module Removal/Installation: Notes

WARNING: This page is about a different car, the 2003 Mazda 6. However, it is still accessible from the selected car via links, so may be relevant.

Disconnect the negative battery cable.
Remove the instrument cluster. (See INSTRUMENT CLUSTER REMOVAL/INSTALLATION .)
Remove in the order indicated in the figure(s).

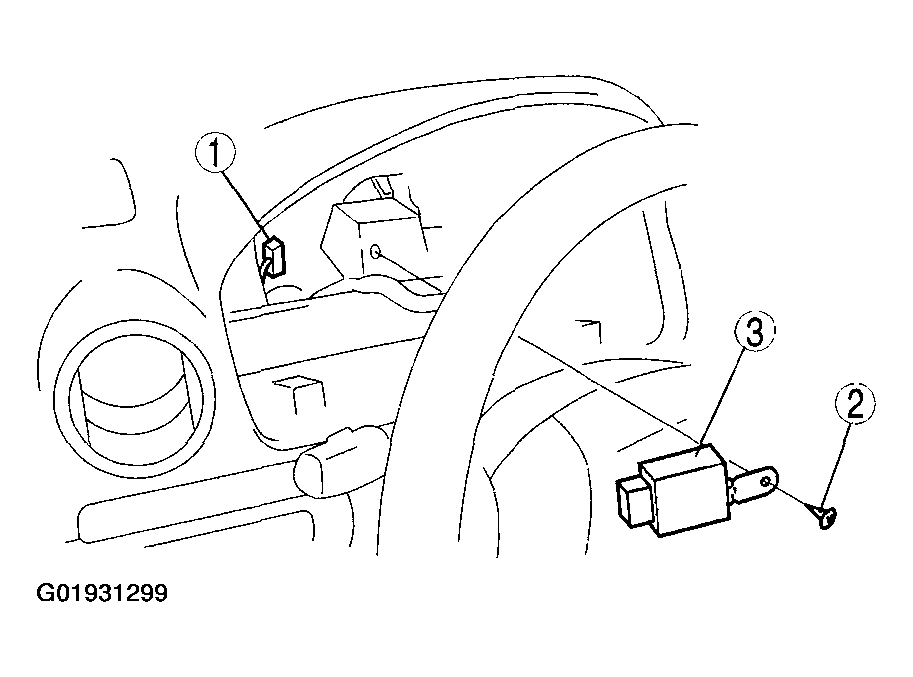

Fig 1: Removing Flasher Control Module
Courtesy of MAZDA MOTORS CORP.

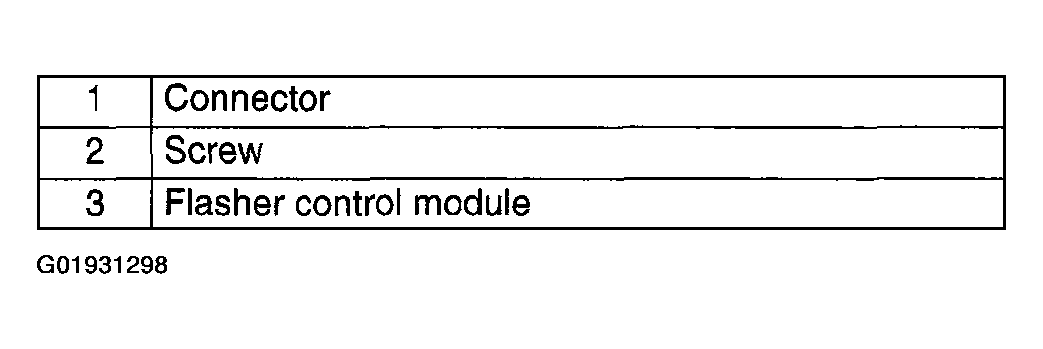

Fig 2: Flasher Control Module Removal Sequence
Courtesy of MAZDA MOTORS CORP.
Install in the reverse order of removal.
