Panel Light Control Switch Removal/Installation: Notes

WARNING: This page is about a different car, the 2003 Mazda 6. However, it is still accessible from the selected car via links, so may be relevant.

Disconnect the negative battery cable.
Remove in the order indicated in the figure(s).

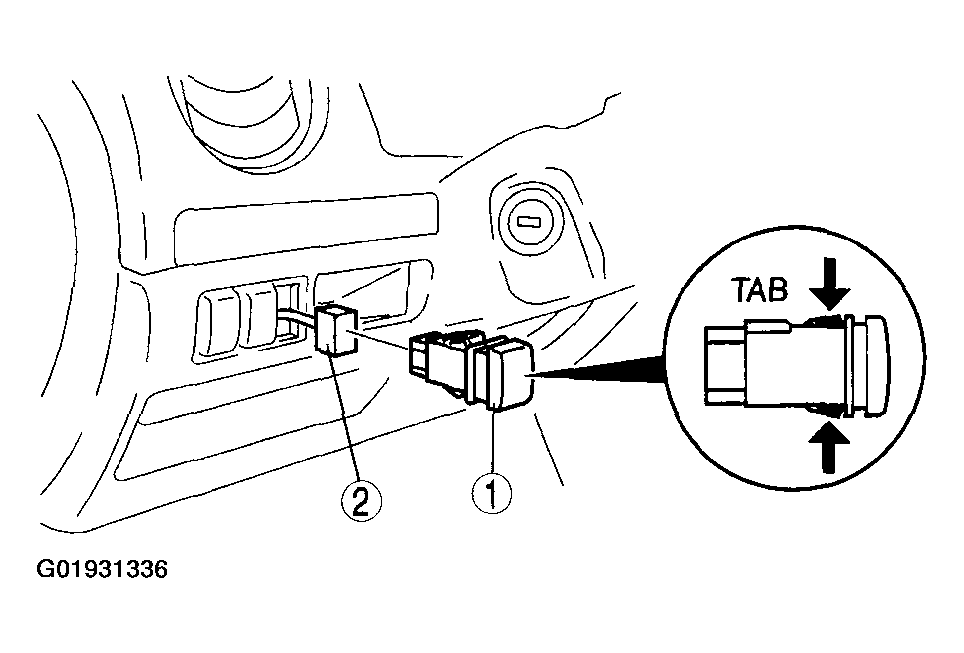

Fig 1: Removing Panel Light Control Switch
Courtesy of MAZDA MOTORS CORP.

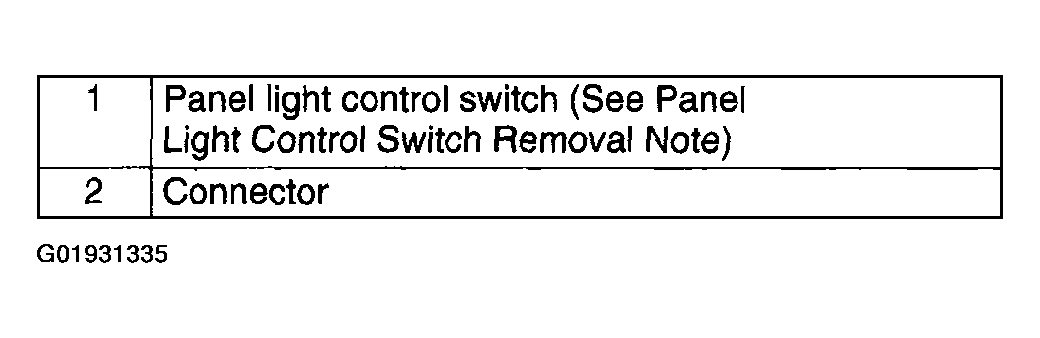

Fig 2: Panel Light Control Switch Removal Sequence
Courtesy of MAZDA MOTORS CORP.
Install in the reverse order of removal.
