HALFSHAFT - Front: Installation

WARNING: This page is about a different car, the 2004 Mazda Tribute and 2003 Mazda Tribute. However, it is still accessible from the selected car via links, so may be relevant.

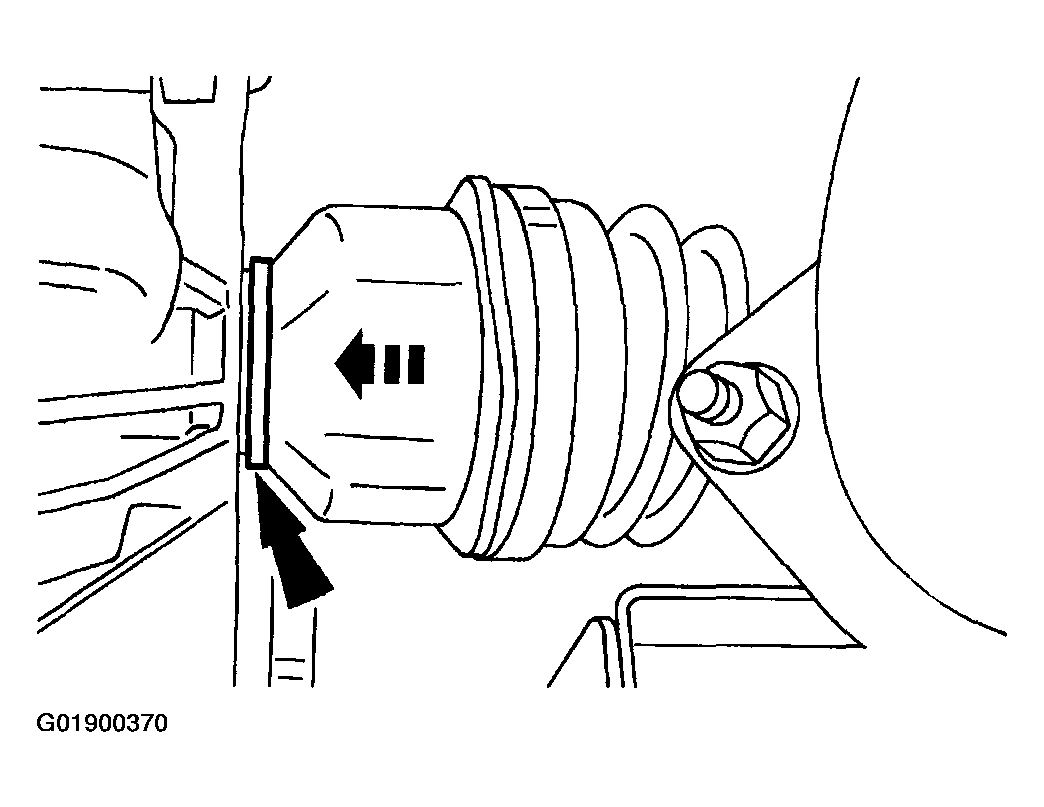

Fig 1: Positioning Front Wheel Driveshaft And Joint

Courtesy of MAZDA MOTORS CORP.

NOTE:

When seated correctly, the driveshaft bearing retainer circlip can be felt as it snaps into the differential side gear groove.

Position the front wheel driveshaft and joint so the splines line up with the differential side gear splines. Push the front wheel driveshaft and joint into the differential side gear.

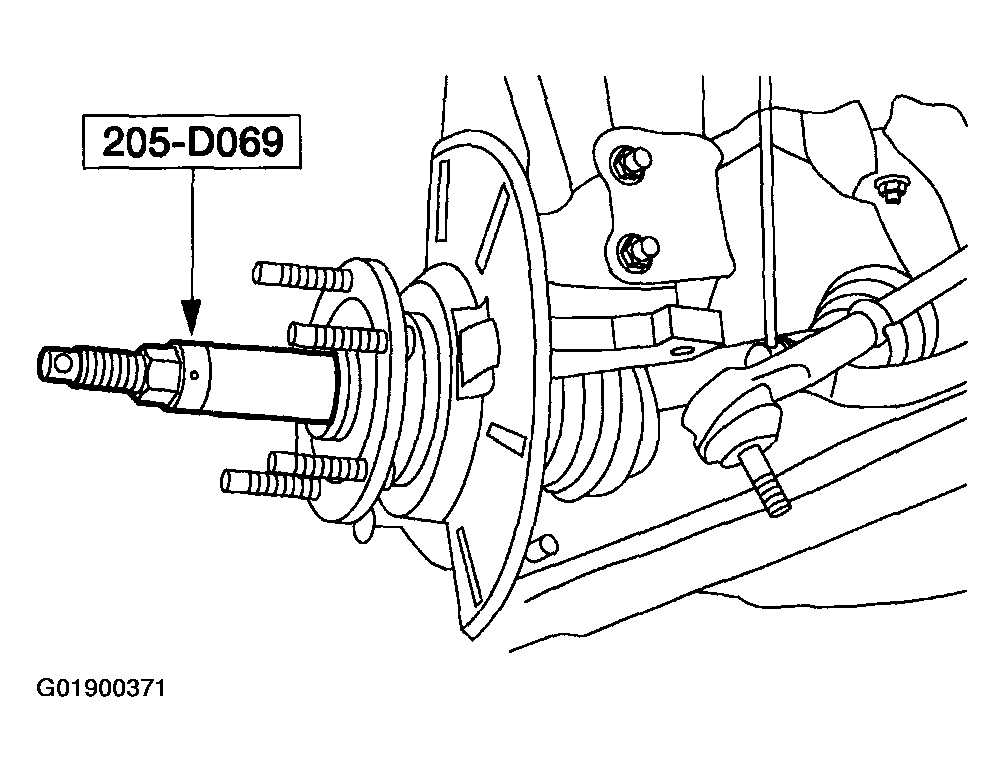

Fig 2: Positioning Halfshaft Into Front Wheel Knuckle Using Special Tool
Courtesy of MAZDA MOTORS CORP.
Using the special tool, position the halfshaft into the front wheel knuckle.

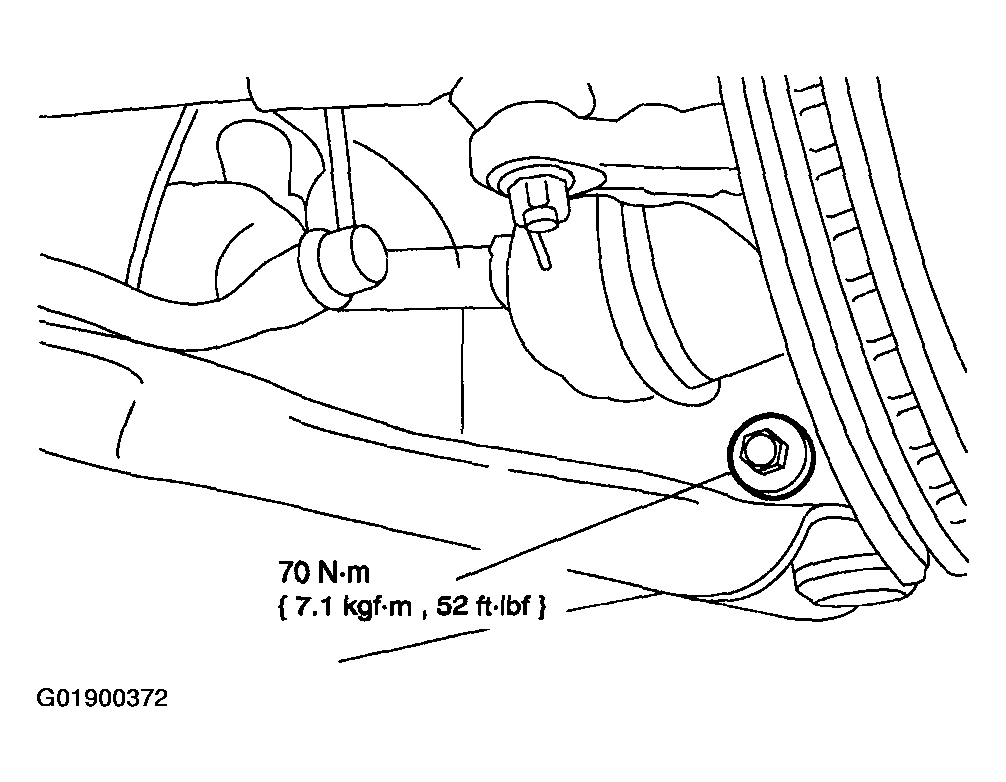

Fig 3: Installing Lower Control Arm And Ball Joint Pinch Bolt And Nut
Courtesy of MAZDA MOTORS CORP.
Install the lower control arm and the ball joint pinch bolt and nut.

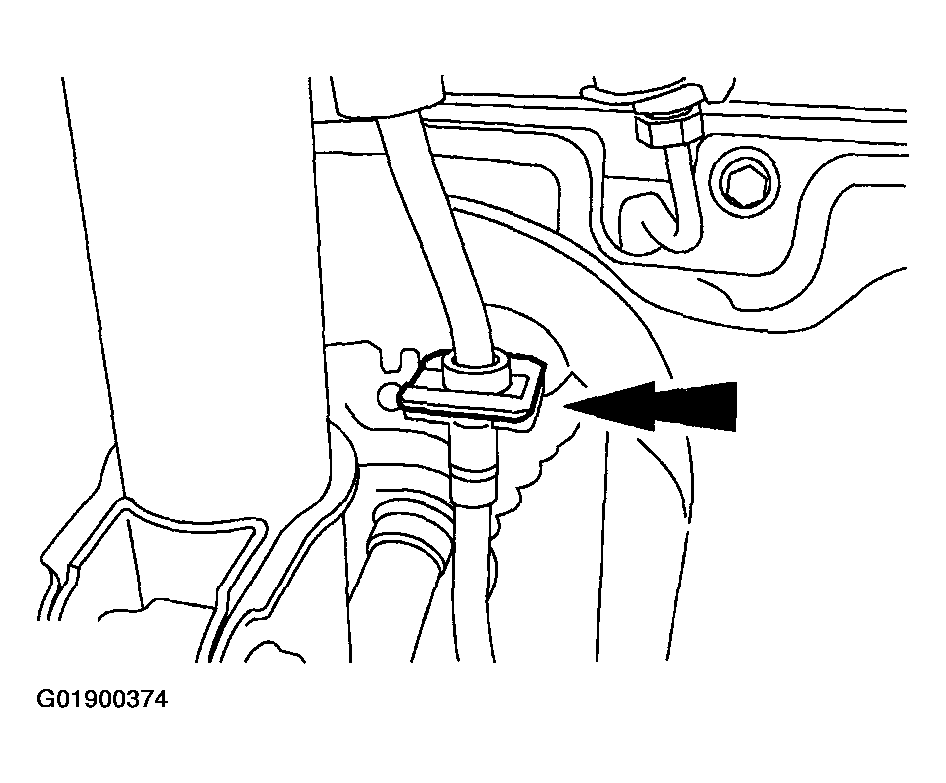

Fig 4: Installing Clip

Courtesy of MAZDA MOTORS CORP.

Install the clip.

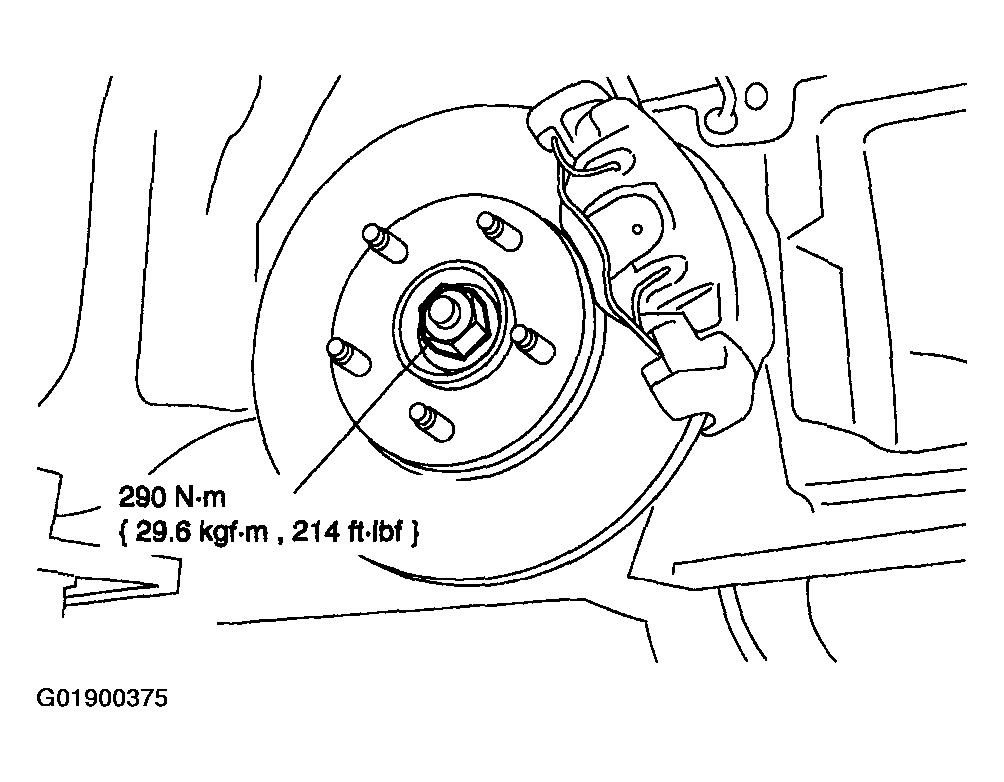

Fig 5: Installing New Front Axle Wheel Hub Nut

Courtesy of MAZDA MOTORS CORP.

Install a new front axle wheel hub nut.
Install the front wheels and tires. Refer to WHEEL AND TIRE .
Check and refill the transaxle fluid. Refer to TRANSAXLE FLUID DRAIN AND REFILL .
