Section 249 (Drive Shaft): HALFSHAFT: Assembly

WARNING: This page is about a different car, the 2004 Mazda Tribute and 2003 Mazda Tribute. However, it is still accessible from the selected car via links, so may be relevant.
NOTE:
  • Make sure all components are clean and free of foreign material.

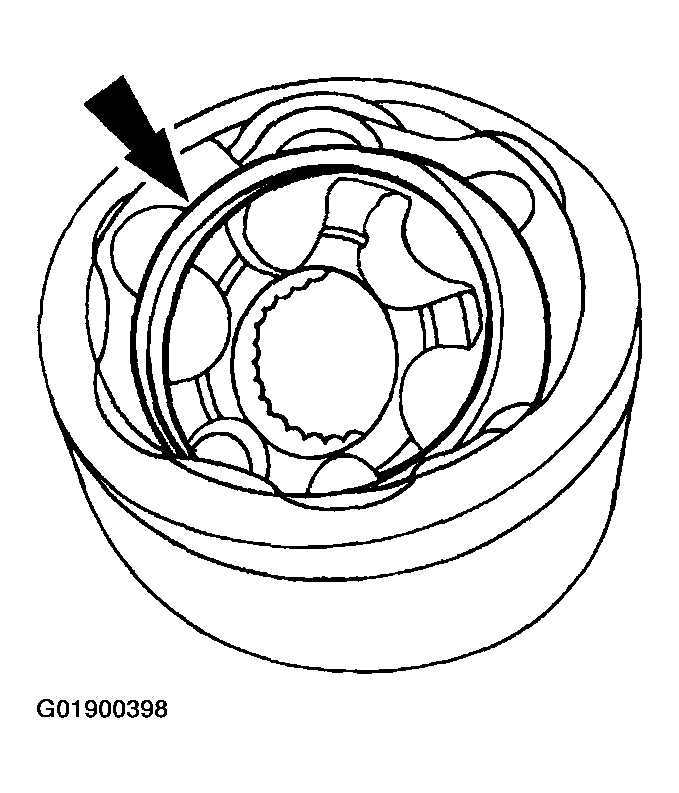

    Fig 1: Lubricating Outboard CV Joint
    G01900398Courtesy of MAZDA MOTORS CORP.
  1. Lubricate the outboard CV joint with high temperature constant velocity joint grease.

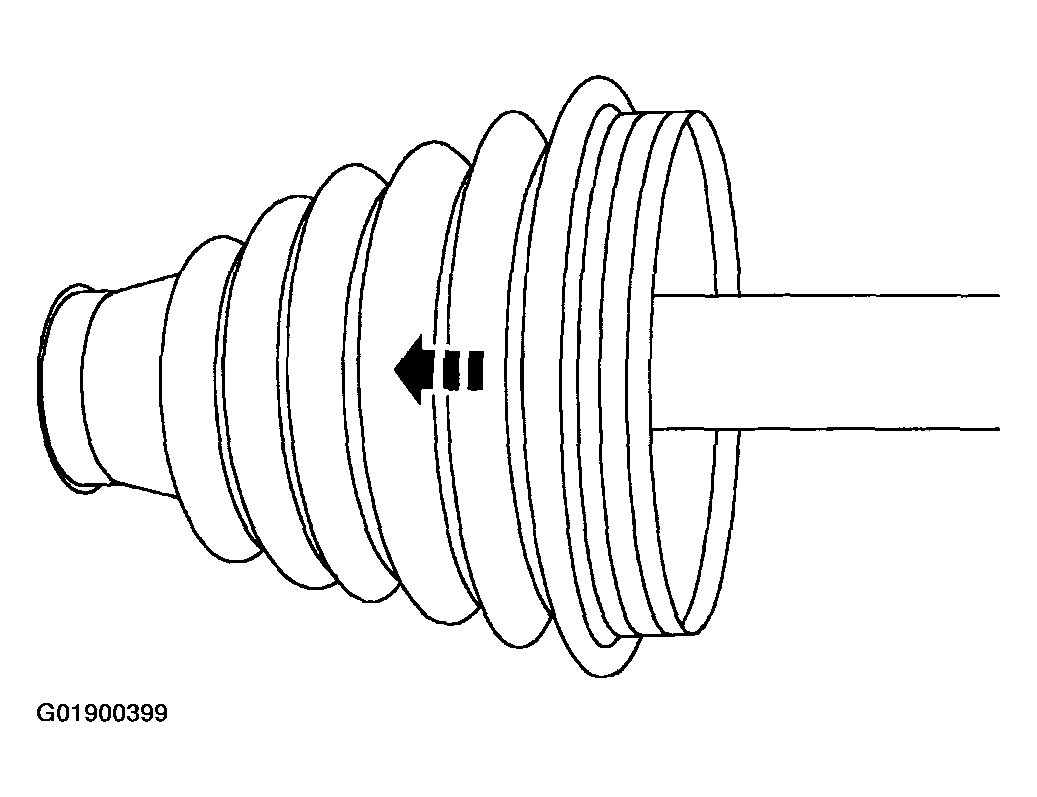

    Fig 2: Installing Outboard Halfshaft Boot
    G01900399Courtesy of MAZDA MOTORS CORP.
  2. Install the outboard halfshaft boot.

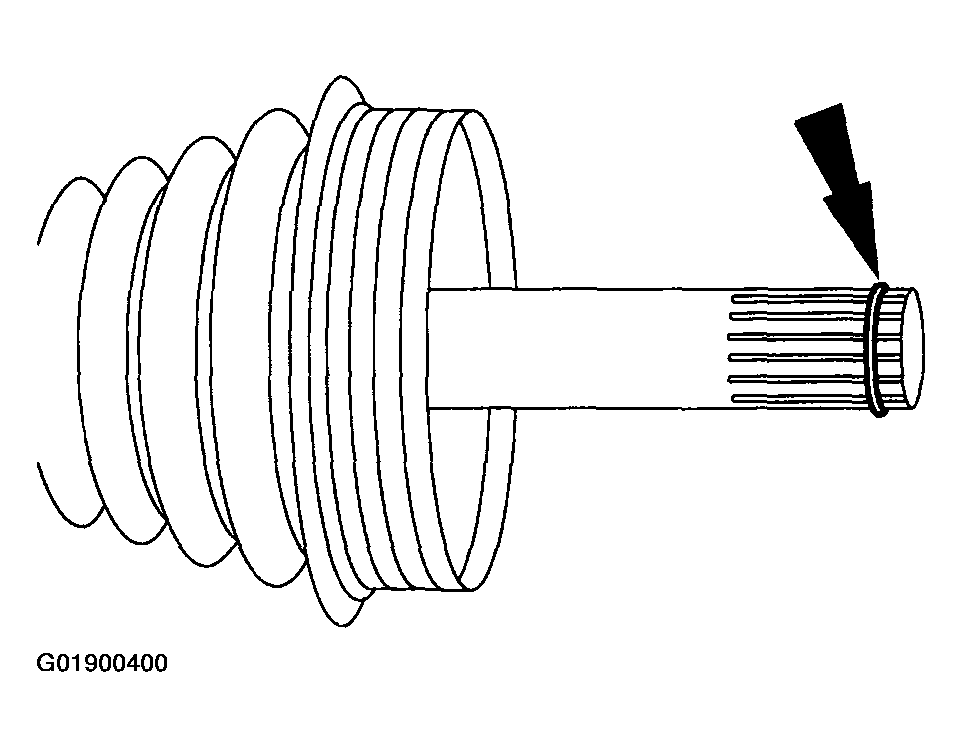

    Fig 3: Installing Halfshaft Shaft Bearing Retainer Circlip
    G01900400Courtesy of MAZDA MOTORS CORP.
  3. Install a new halfshaft shaft bearing retainer circlip.

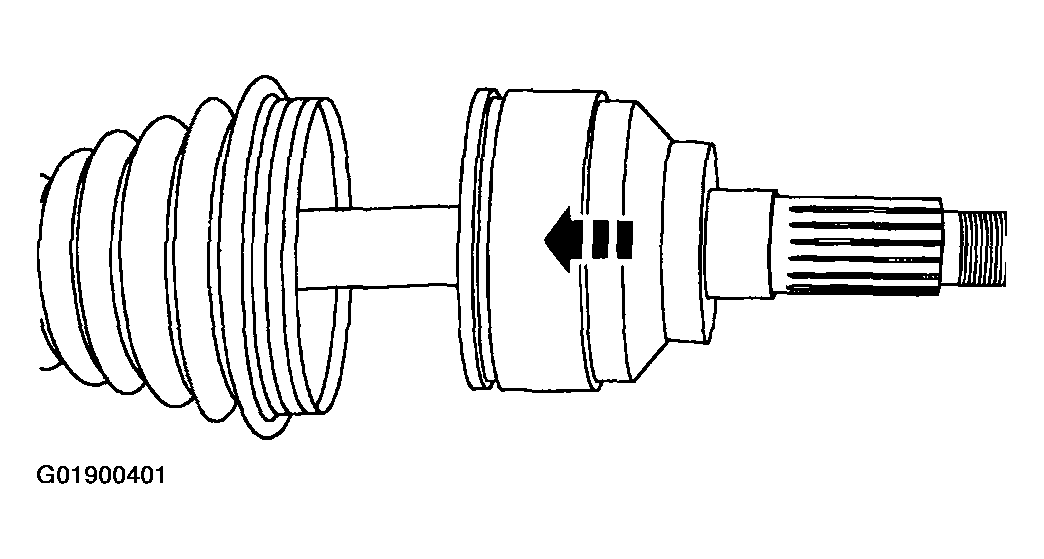

    Fig 4: Installing Inboard CV Joint
    G01900401Courtesy of MAZDA MOTORS CORP.
  4. Use a soft-face hammer to install the inboard CV joint by gently tapping it onto the halfshaft.

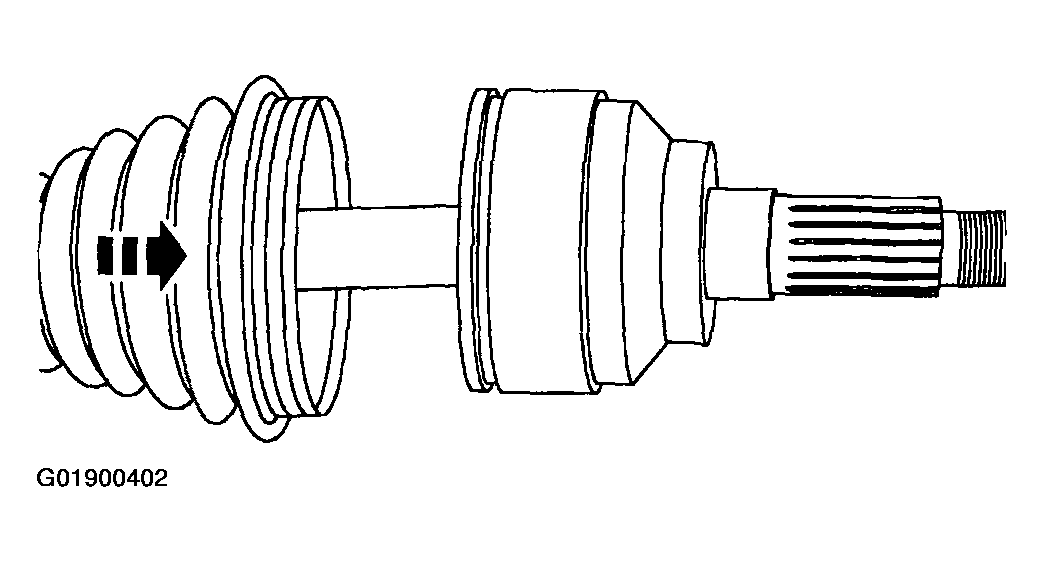

    Fig 5: Sliding Outboard Halfshaft Joint Boot Forward Onto Outboard CV Joint
    G01900402Courtesy of MAZDA MOTORS CORP.
  5. Remove any excess grease on the mating surfaces and slide the outboard halfshaft joint boot forward onto the outboard CV joint.

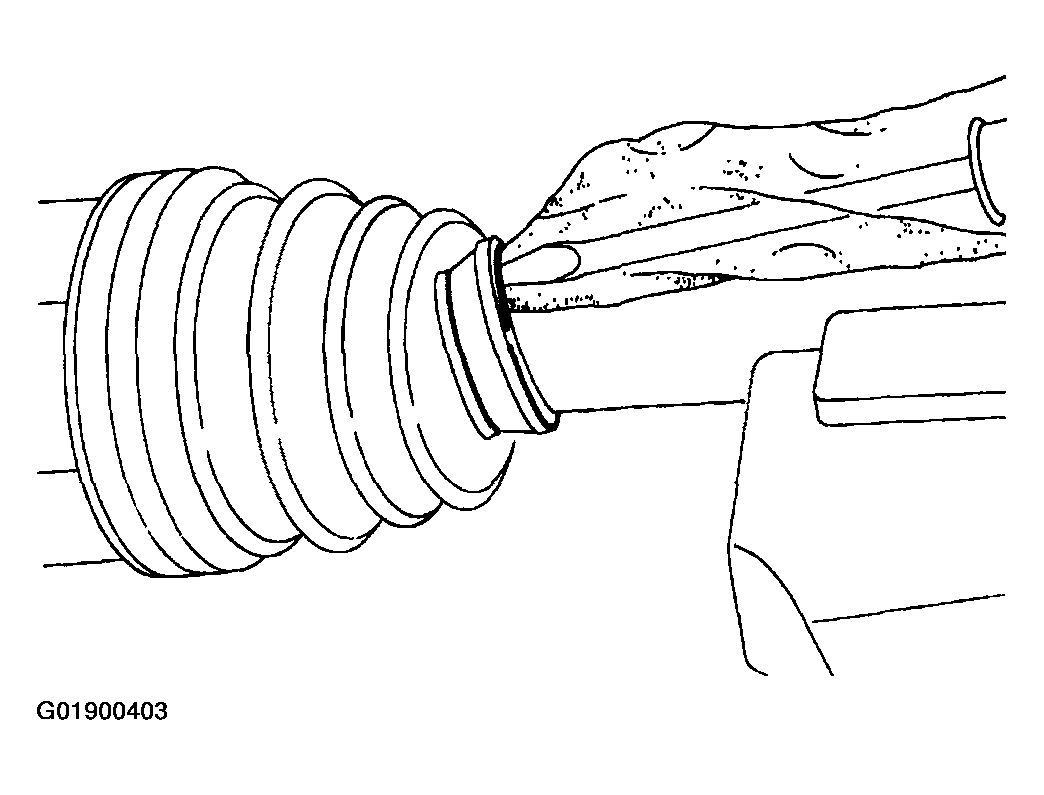

    Fig 6: Removing Excess Air Trapped In Outboard Halfshaft Boot
    G01900403Courtesy of MAZDA MOTORS CORP.
  6. Remove any excess air trapped in the outboard halfshaft boot using a cloth covered screwdriver after adjusting the outboard halfshaft boot spacing.

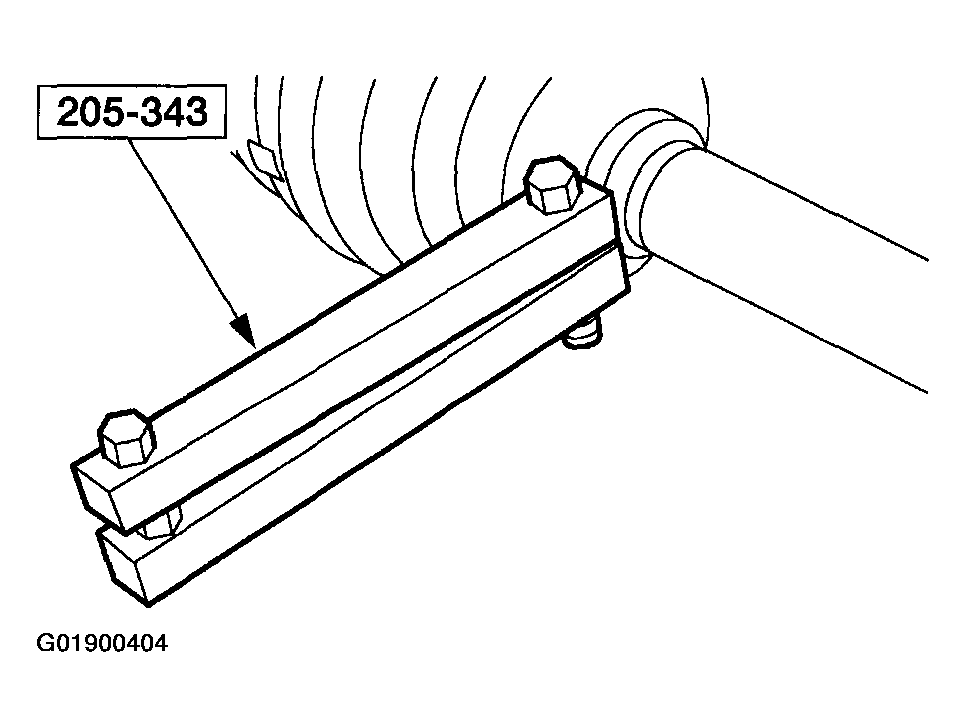

    Fig 7: Installing Outboard Halfshaft Boot Clamps Using Special Tool
    G01900404Courtesy of MAZDA MOTORS CORP.
  7. Using the special tool, install two new outboard halfshaft boot clamps.

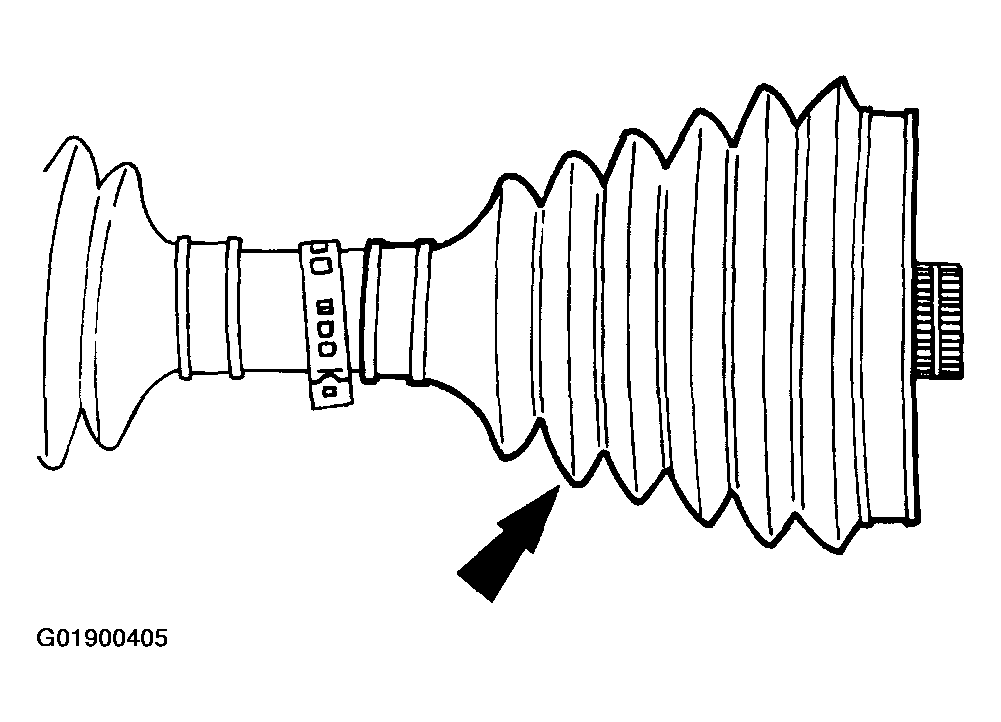

    Fig 8: Positioning Inboard Halfshaft Boot
    G01900405Courtesy of MAZDA MOTORS CORP.
  8. Position the inboard halfshaft boot.

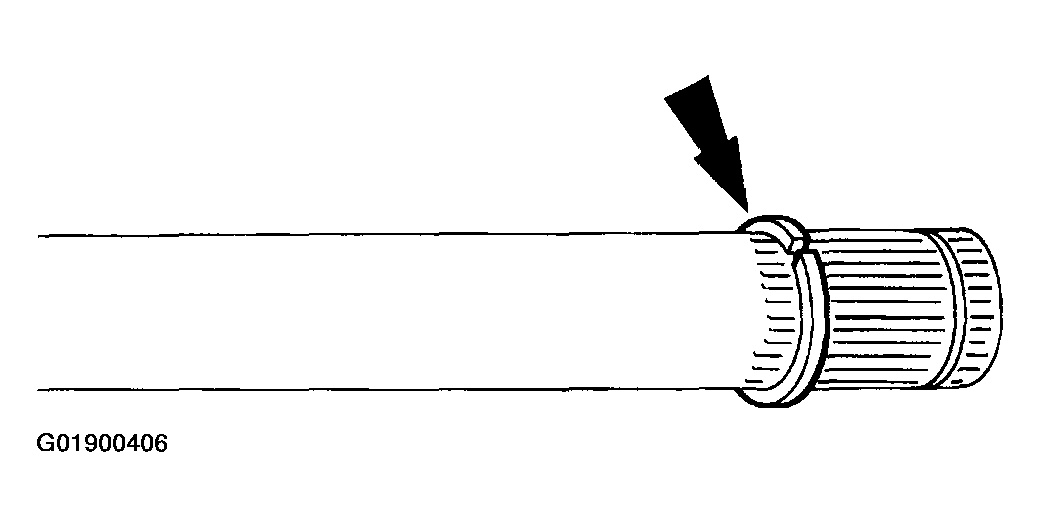

    Fig 9: Installing Snap Ring
    G01900406Courtesy of MAZDA MOTORS CORP.
  9. Install the snap ring.

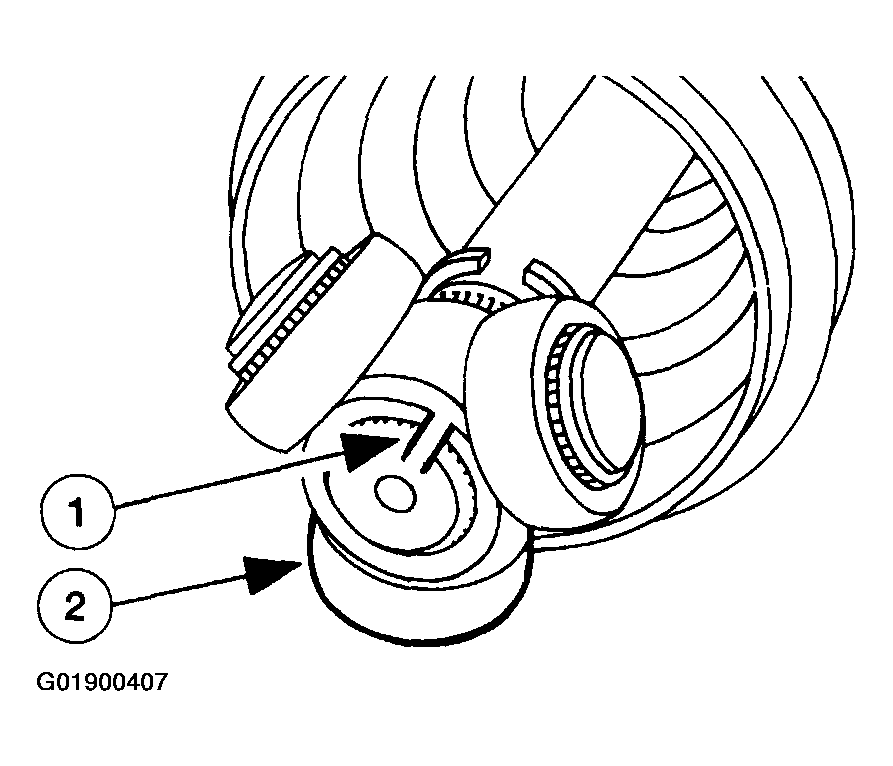

    Fig 10: Installing Tripod Joint On Halfshaft
    G01900407Courtesy of MAZDA MOTORS CORP.
  10. Install the tripod joint on the halfshaft.
    1. Line up the marks on the halfshaft and tripod joint.
    2. Install the tripod joint on the halfshaft.

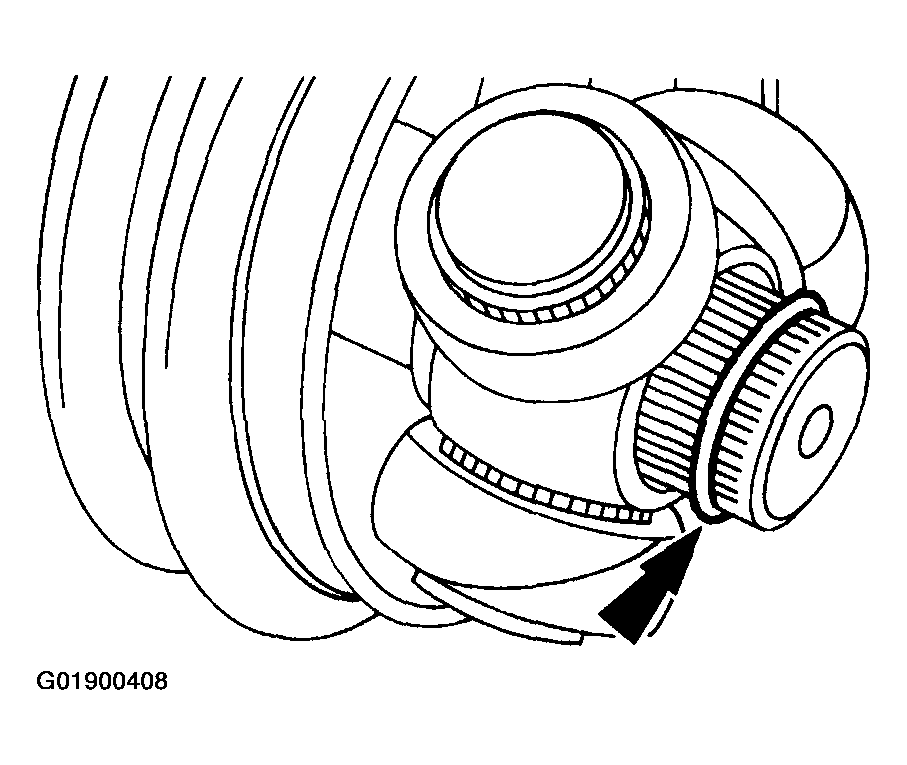

      Fig 11: Installing Snap Ring
      G01900408Courtesy of MAZDA MOTORS CORP.
  11. Install the snap ring.

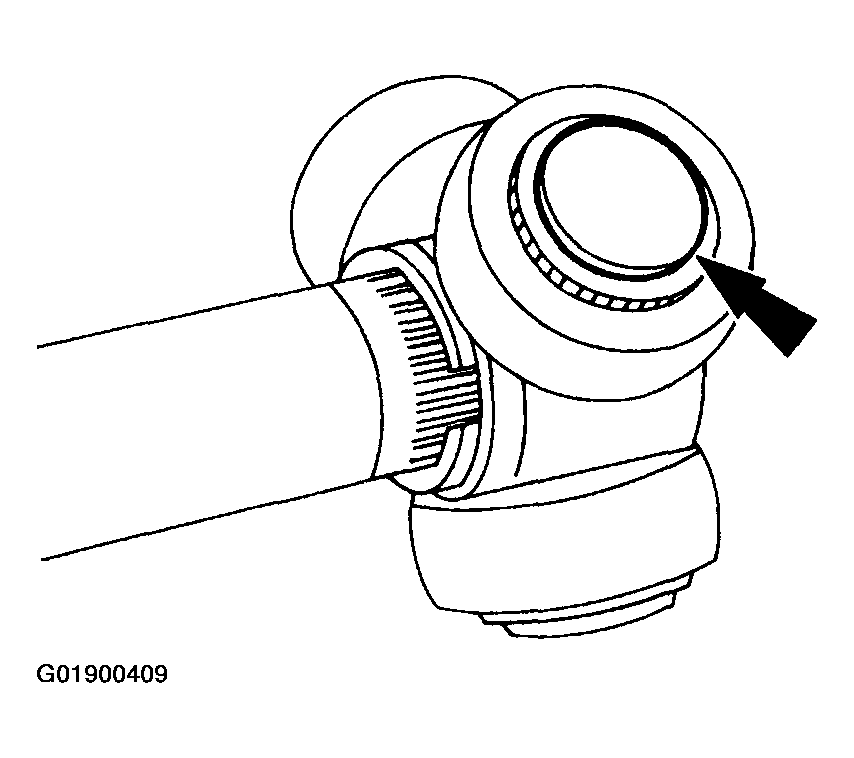

    Fig 12: Lubricating Three Tripod Joint Needle Bearings
    G01900409Courtesy of MAZDA MOTORS CORP.
  12. Lubricate the three tripod joint needle bearings.
    1. Use high temp constant velocity joint grease.

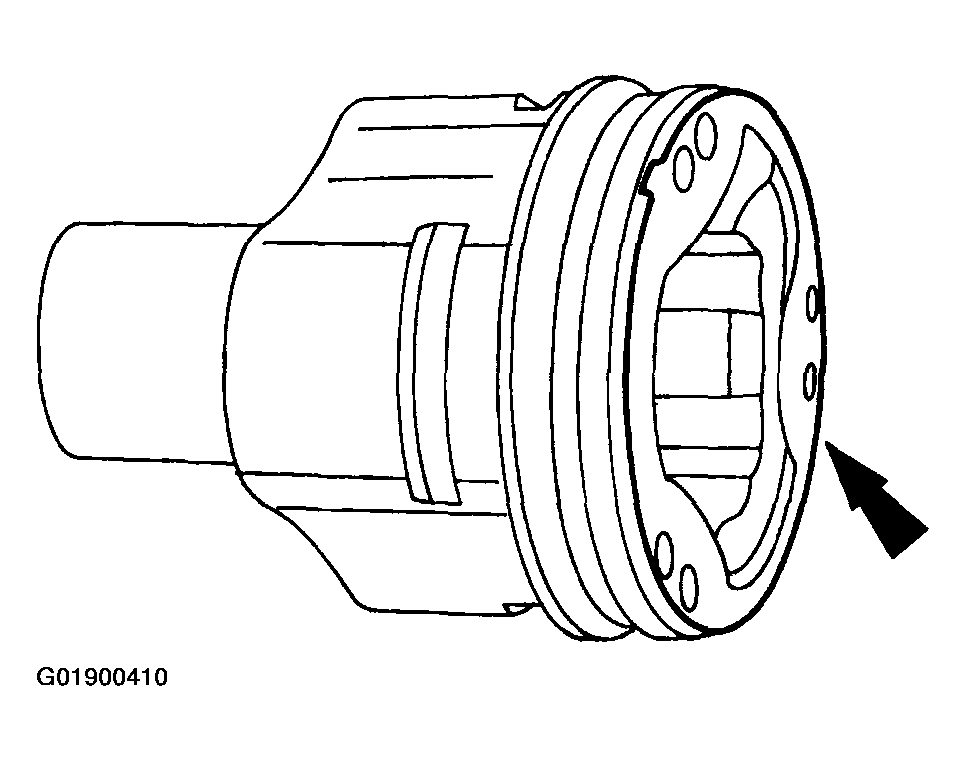

      Fig 13: Filling Tripod Joint Housing With High Temp Constant Velocity Joint Grease
      G01900410Courtesy of MAZDA MOTORS CORP.
  13. Fill the tripod joint housing with high temp constant velocity joint grease.

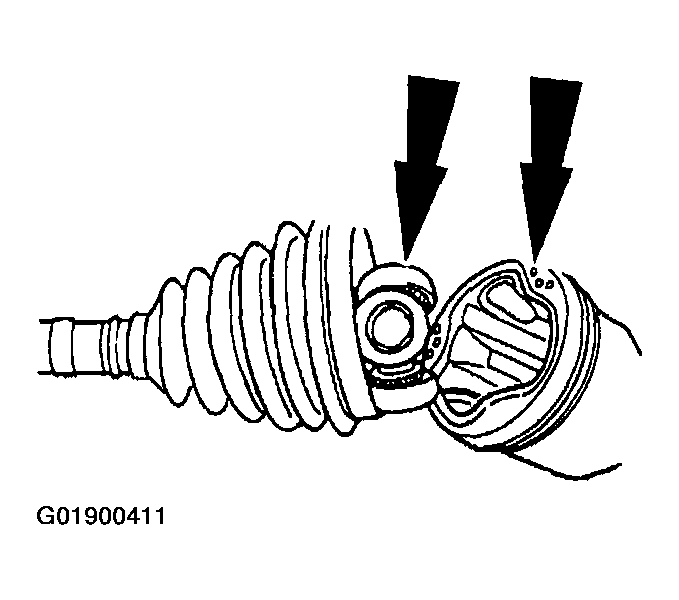

    Fig 14: Positioning Tripod Housing Onto Tripod
    G01900411Courtesy of MAZDA MOTORS CORP.
  14. Position the tripod housing onto the tripod.

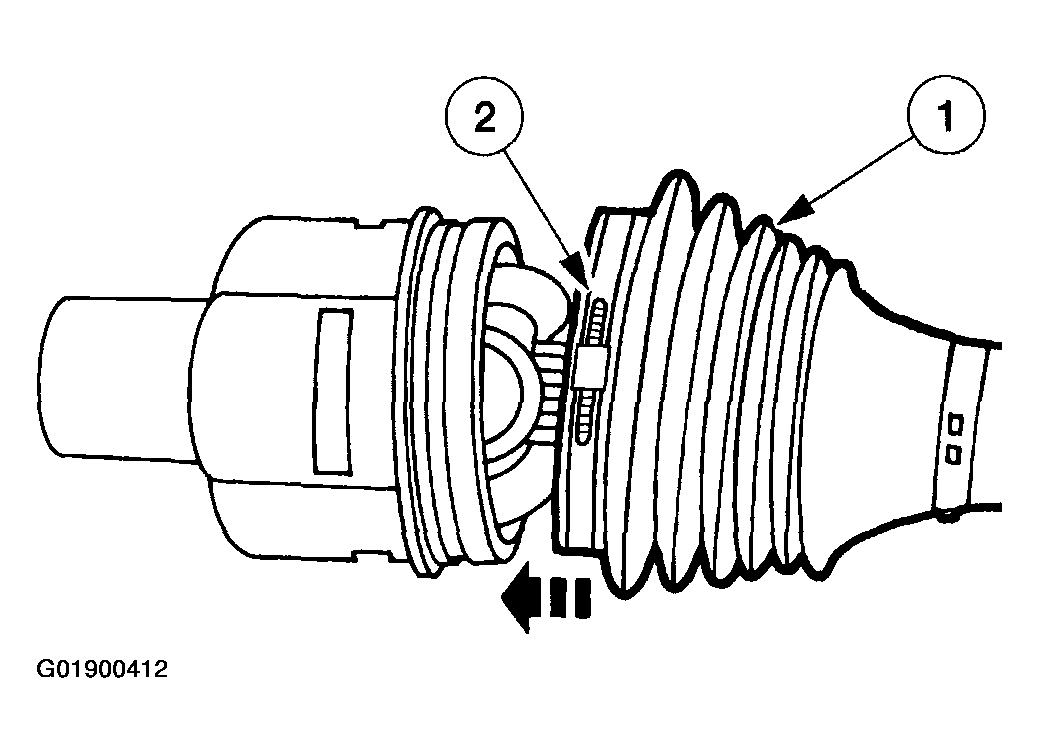

    Fig 15: Positioning Inboard Halfshaft Boot
    G01900412Courtesy of MAZDA MOTORS CORP.
  15. Position the inboard halfshaft boot.
    1. Position the inboard halfshaft boot.
    2. Position the inboard halfshaft boot clamp.

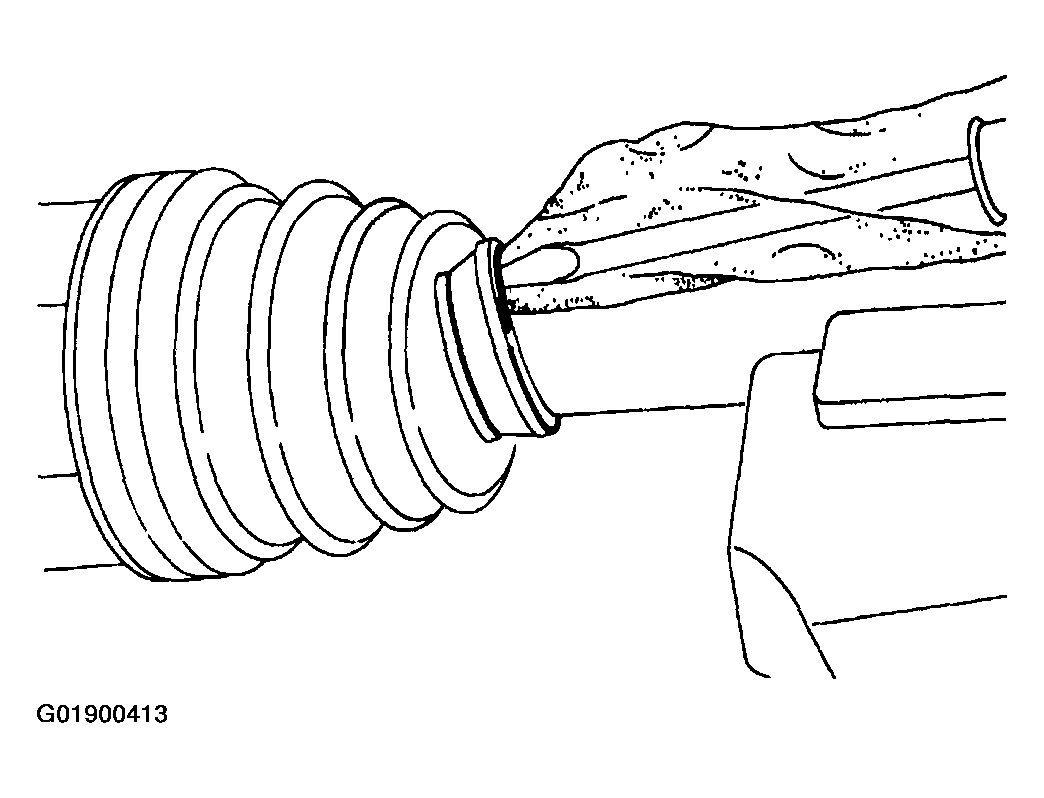

      Fig 16: Removing Excess Air Trapped In Halfshaft Boot
      G01900413Courtesy of MAZDA MOTORS CORP.
  16. Remove any excess air trapped in the halfshaft boot using a cloth covered screwdriver after adjusting the halfshaft boot spacing.

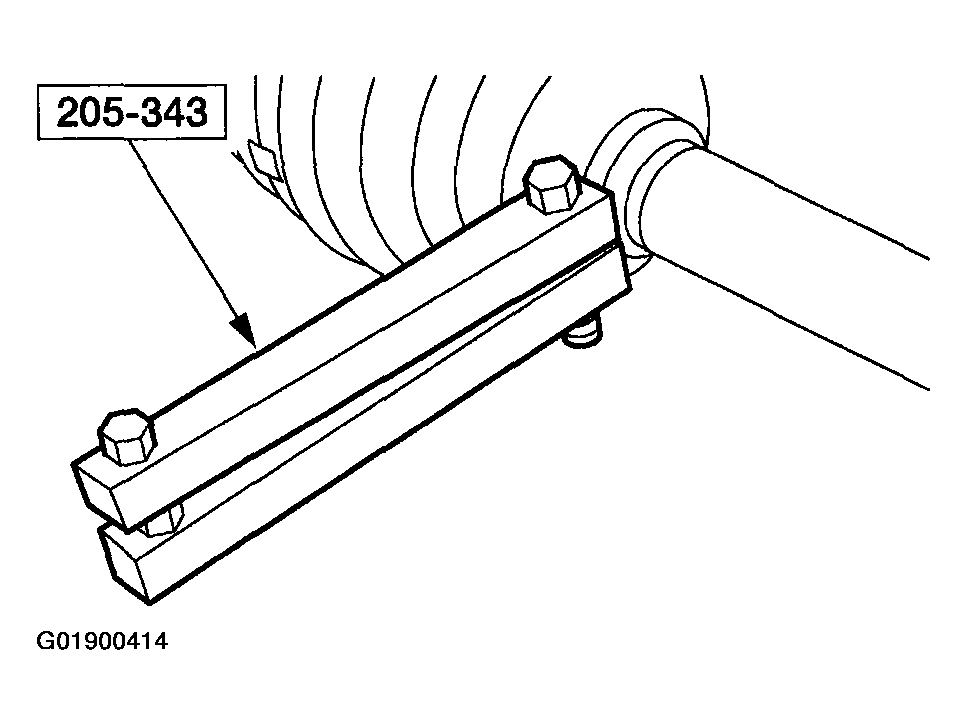

    Fig 17: Installing Outboard Joint Boot Clamps Using Special Tool
    G01900414Courtesy of MAZDA MOTORS CORP.
  17. Using the special tool, install two new outboard joint boot clamps.

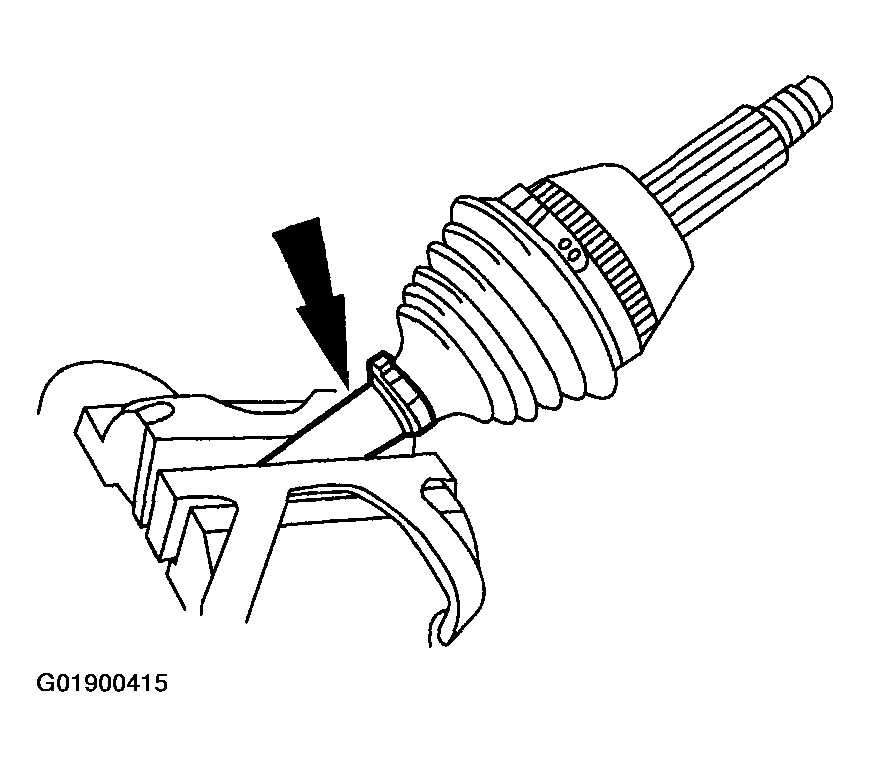

    Fig 18: Removing Halfshaft From Vise
    G01900415Courtesy of MAZDA MOTORS CORP.
  18. Remove the halfshaft from the vise.
  19. Install the front wheel halfshaft. Refer to HALFSHAFT - FRONT  .
