Bolt Removal Note
WARNING: This page is about a different car, the 2005 Mazda 6. However, it is still accessible from the selected car via links, so may be relevant.

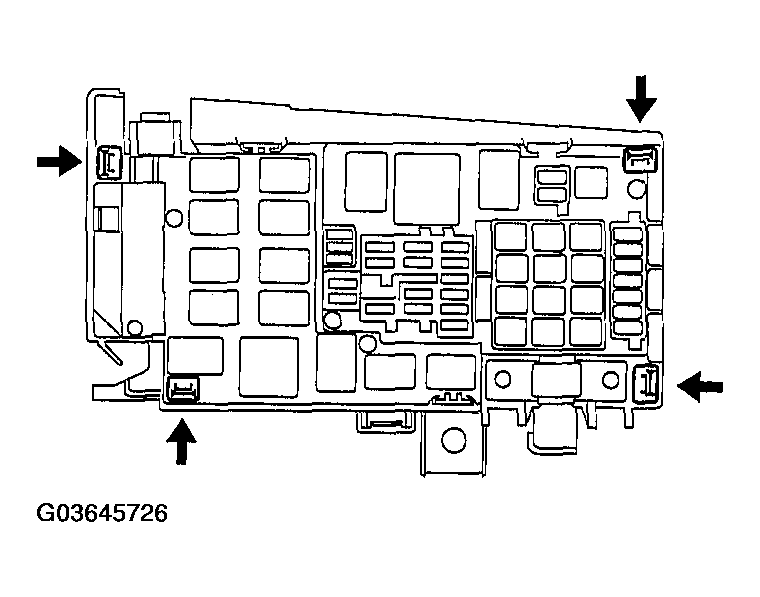

- Press and remove the tabs on the main fuse block at the positions indicated by the arrows.
Courtesy of MAZDA MOTORS CORP.

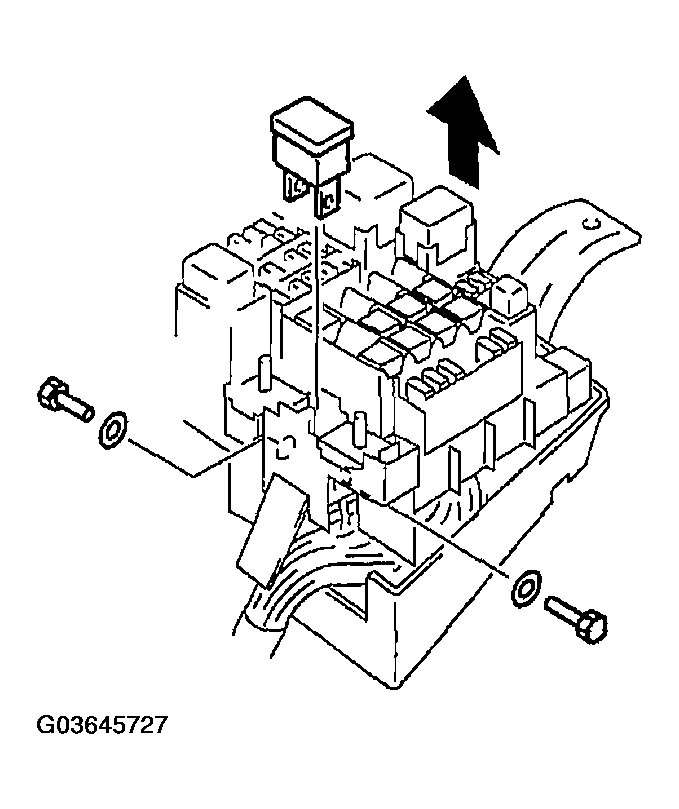

- Lift up the main fuse block and remove the bolts.
Courtesy of MAZDA MOTORS CORP.
