Basic System Location Index

WARNING: This page is about a different car, the 2005 Mazda MPV. However, it is still accessible from the selected car via links, so may be relevant.

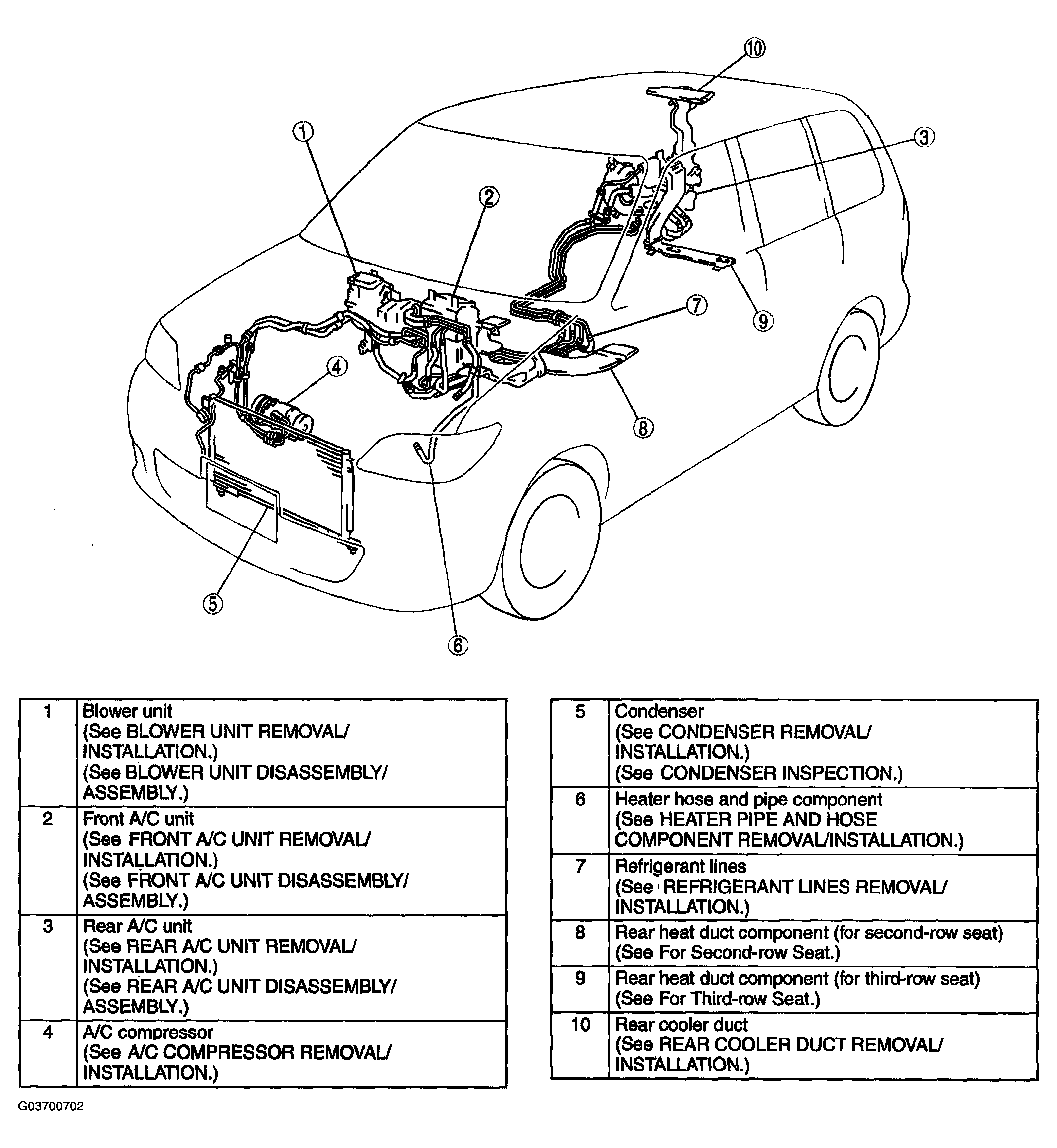

Fig 1: Identifying HVAC Basic System Components
G03700702Courtesy of MAZDA MOTORS CORP.
