Abs HU/Cm Removal/Installation: Notes

WARNING: This page is about a different car, the 2005 Mazda RX-8. However, it is still accessible from the selected car via links, so may be relevant.

CAUTION:

The internal parts of the ABS HU/CM could be damaged if dropped. Be careful not to drop the ABS HU/CM. Replace the ABS HU/CM if it is subjected to an impact.

Remove the front suspension tower bar. (See FRONT SUSPENSION TOWER BAR REMOVAL/INSTALLATION .)
Remove in the order indicated in the table.
Install in the reverse order of removal.

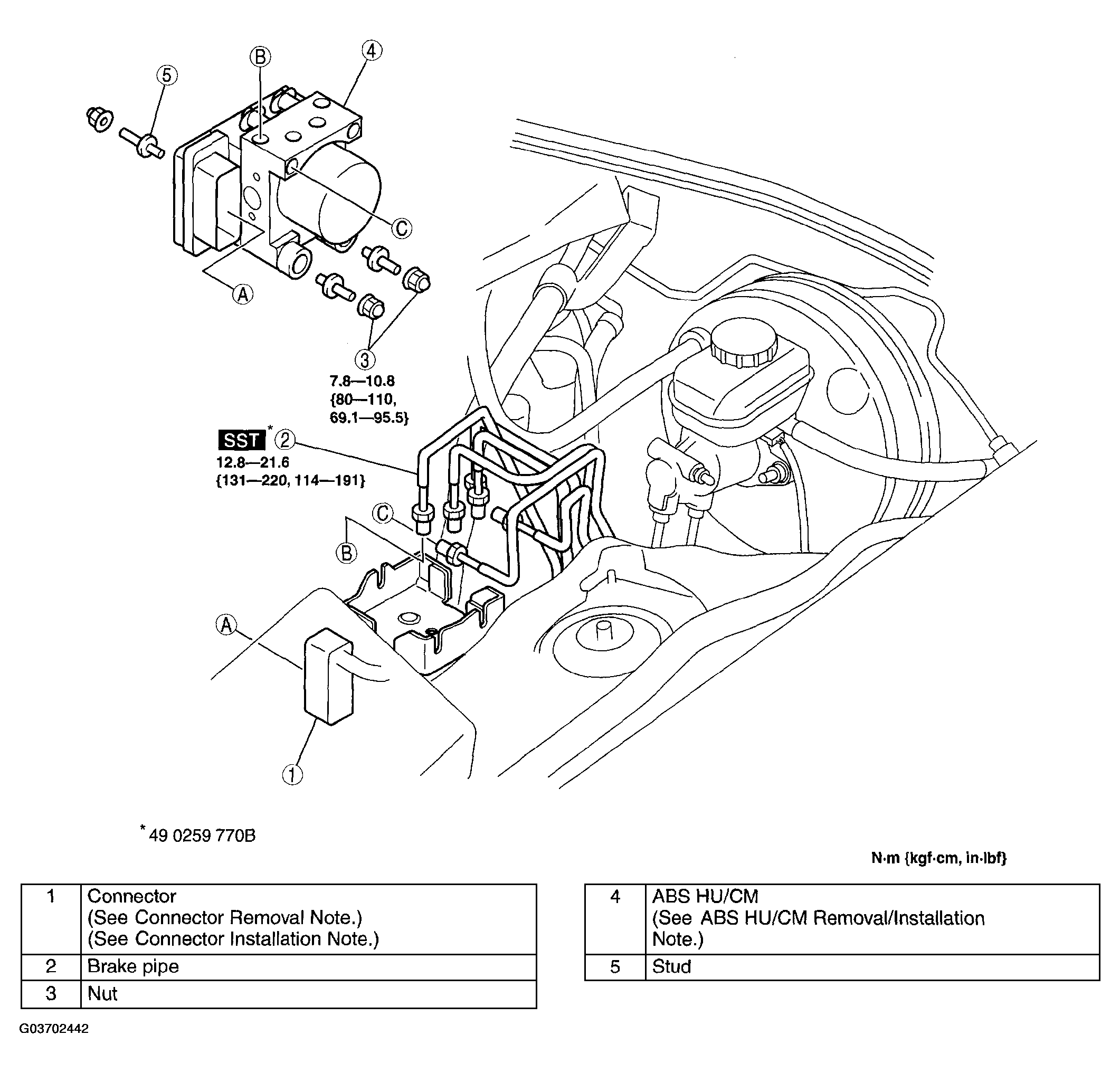

Fig 1: ABS HU/CM Removing Sequence With Torque Specifications
Courtesy of MAZDA MOTORS CORP.
