Power Window Regulator Removal/Installation

WARNING: This page is about a different car, the 2005 Mazda RX-8. However, it is still accessible from the selected car via links, so may be relevant.
  1. Disconnect the negative battery cable.
  2. Remove the following parts:
    1. Inner garnish (See INNER GARNISH REMOVAL/INSTALLATION .)
    2. Front door trim (See FRONT DOOR TRIM REMOVAL/INSTALLATION .)
    3. Front door speaker (See FRONT DOOR SPEAKER REMOVAL/INSTALLATION .)
    4. Front door glass (See FRONT DOOR GLASS REMOVAL/INSTALLATION .)
    5. Power window motor (See POWER WINDOW MOTOR REMOVAL/INSTALLATION .)
  3. Remove the nuts.

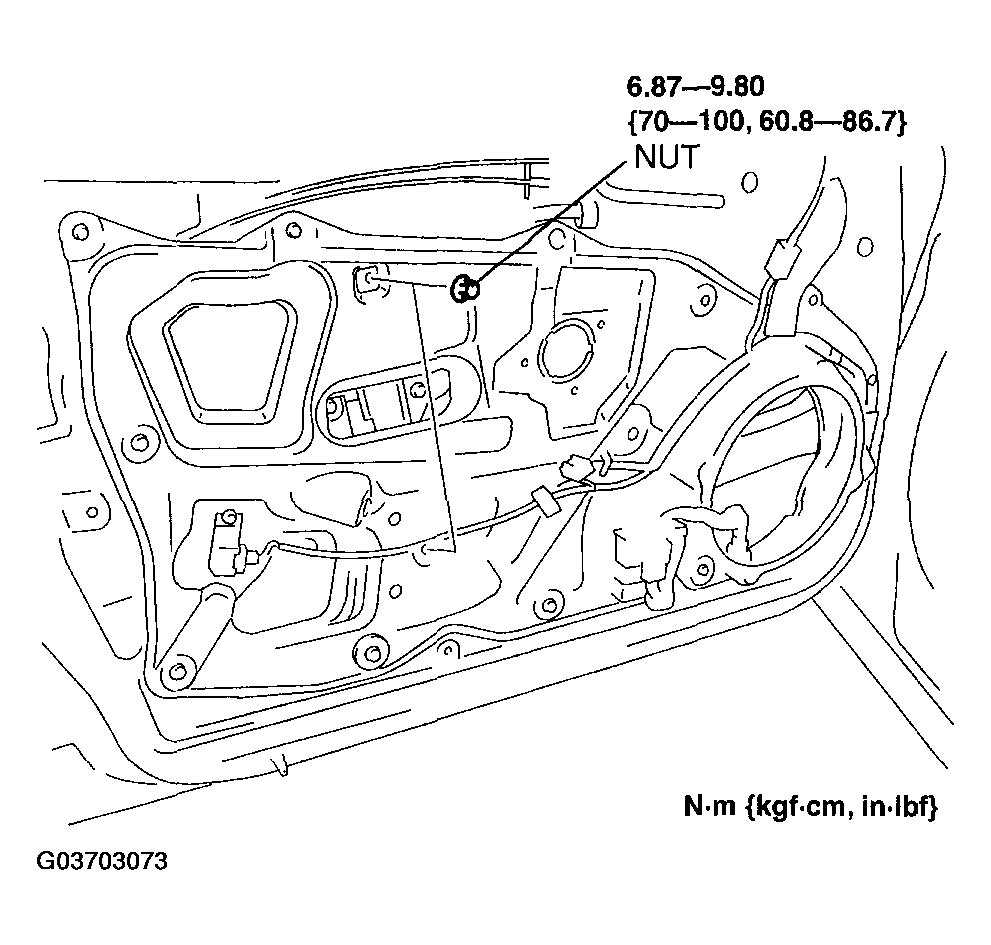

    Fig 1: Removing Power Window Regulator Nuts Torque Specifications
    G03703073Courtesy of MAZDA MOTORS CORP.
  4. Insert hand through the front speaker installation hole, rotate the drum housing in the direction shown in the figure and remove the drum housing from the door unit connection tabs.

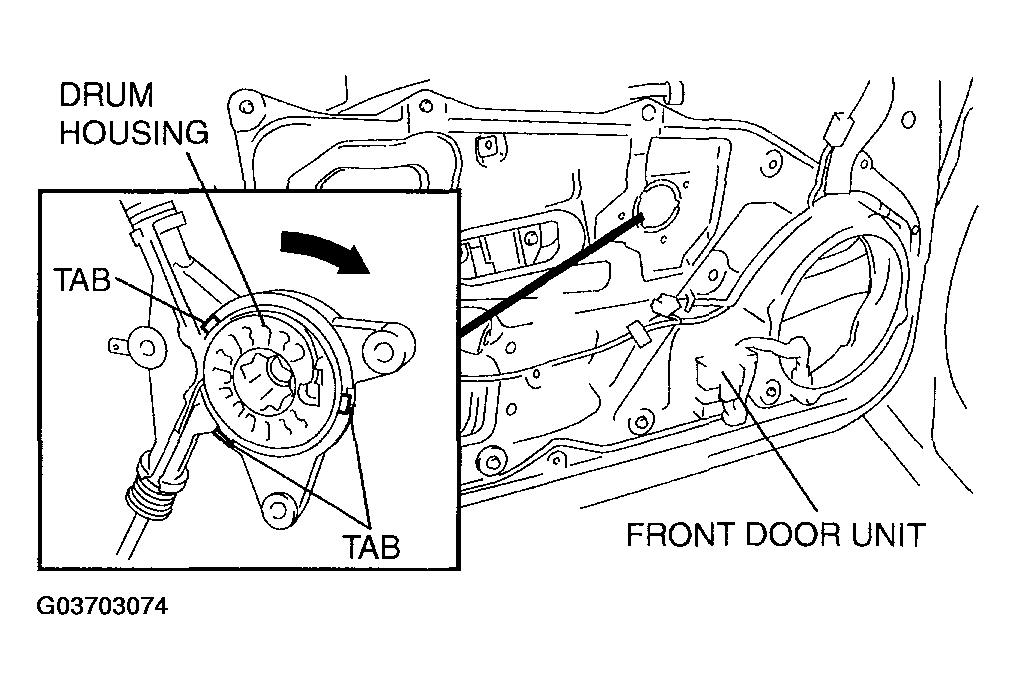

    Fig 2: Removing Drum Housing
    G03703074Courtesy of MAZDA MOTORS CORP.
  5. Remove the power window regulator from the speaker installation hole.
  6. Install in the reverse order of removal.
    CAUTION:
    • Make sure the cable does not un-spool from the drum housing when installing.

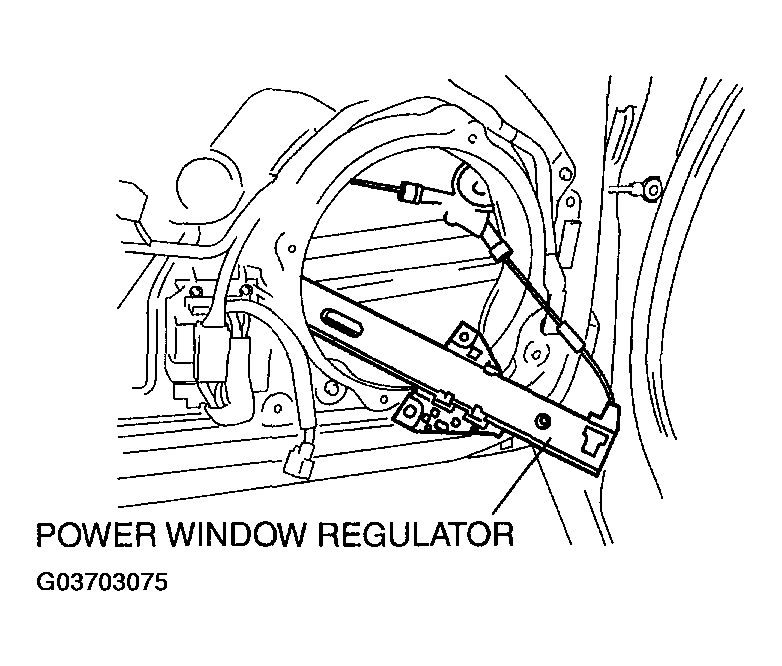

    Fig 3: Identifying Power Window Regulator
    G03703075Courtesy of MAZDA MOTORS CORP.
