Front Upper Arm: Removal/Installation: Notes

WARNING: This page is about a different car, the 2004 Mazda RX-8. However, it is still accessible from the selected car via links, so may be relevant.
CAUTION: Performing the following procedures without first removing the ABS wheel-speed sensor may possibly cause an open circuit in the wiring harness if it is pulled by mistake. Before performing the following procedures, remove the ABS wheel-speed sensor (axle side) and fix it to an appropriate place where the sensor will not be pulled while servicing the vehicle.
  1. Remove in the order indicated in the illustration.

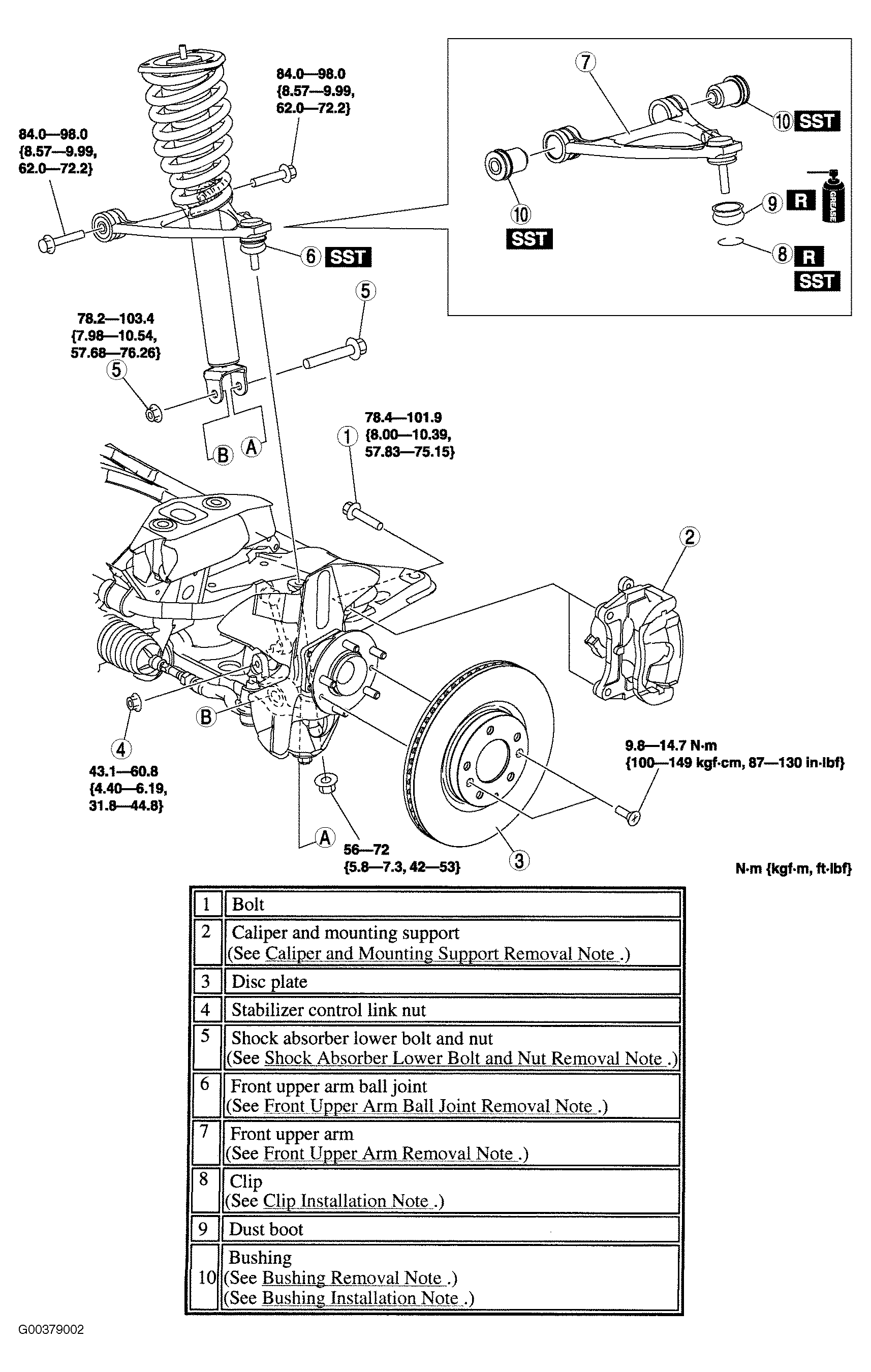

    Fig 1: Removing Front Upper Arm
    G00379002Courtesy of MAZDA MOTORS CORP.
  2. Install in the reverse order of removal.
  3. Inspect the front wheel alignment. See FRONT WHEEL ALIGNMENT .
