Intermediate Speed Sensor

NOTE: Intermediate speed sensor is mounted internally in transaxle. Information for replacement of sensor is not available from manufacturer.

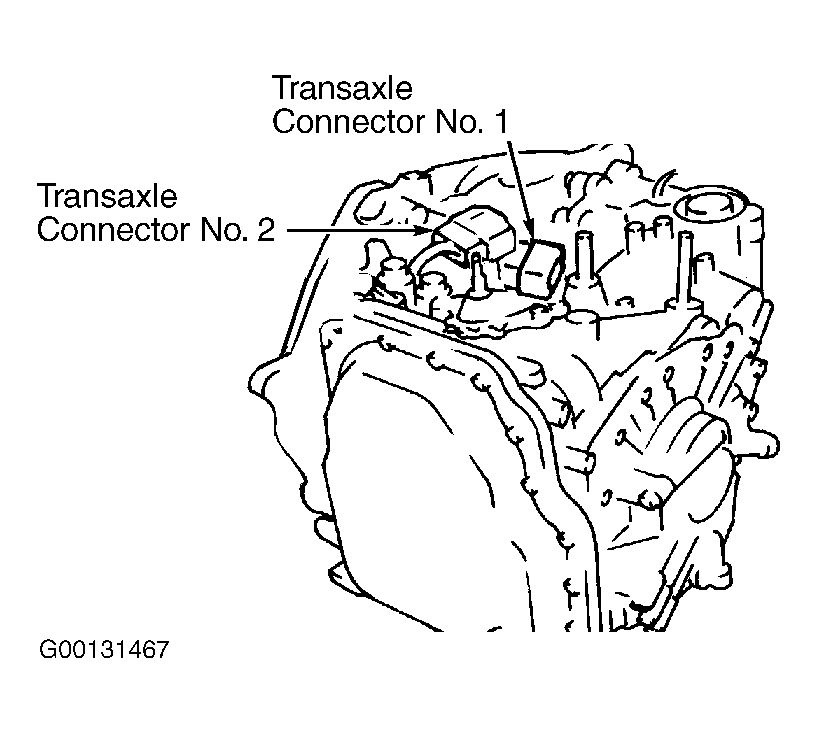

Disconnect transaxle connector No. 2 (8-pin). See Figure. Measure resistance between terminals "C" and "D" on transaxle side of connector. See Figure. Resistance should be 513-627 ohms at 68°F (20°C). If resistance is not within specification, replace sensor.
