Bushing Assembly Note

  1. Align A and B and press a new bushing into the gear housing using the SST  until the bushing is fully seated.

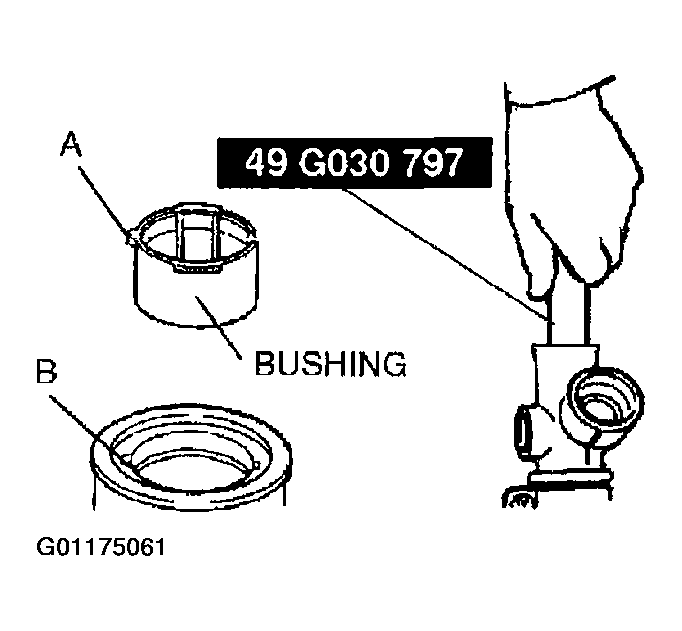

Fig 1: Assembling Bushing
G01175061Courtesy of MAZDA MOTORS CORP.
