Steering Rack Assembly Note

  1. Secure the mounting bracket in a vise.
  2. Apply grease to the rack bushing.
  3. Apply grease to the rack teeth and the sliding surface.
    CAUTION:
    • Do not plug the ventilation holes with the grease.
    CAUTION:
    • Installing the rack from the tube side can damage the rack bushing by dragging the rack teeth across it. When installing the rack, install it slowly and carefully.

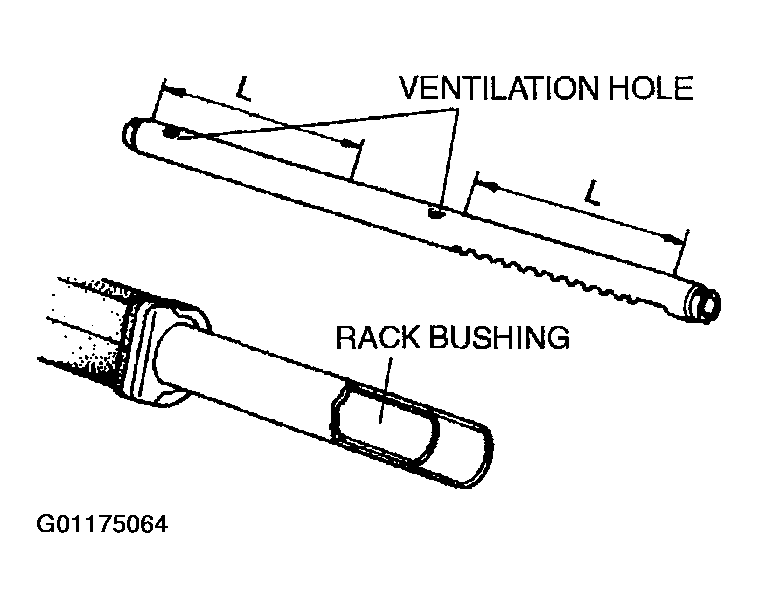

    Fig 1: Locating Ventilation Holes
    G01175064Courtesy of MAZDA MOTORS CORP.
  4. Slide the rack in from the tube side.

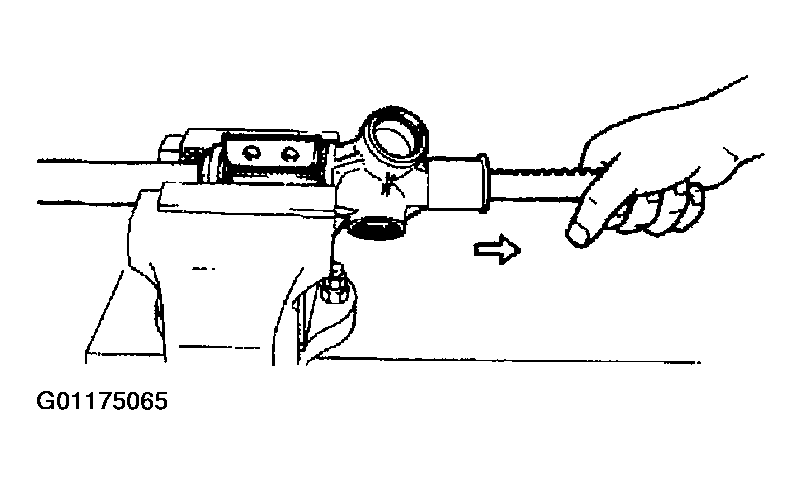

    Fig 2: Sliding Rack In From Tube Side
    G01175065Courtesy of MAZDA MOTORS CORP.
