Antilock Brake System Location Index

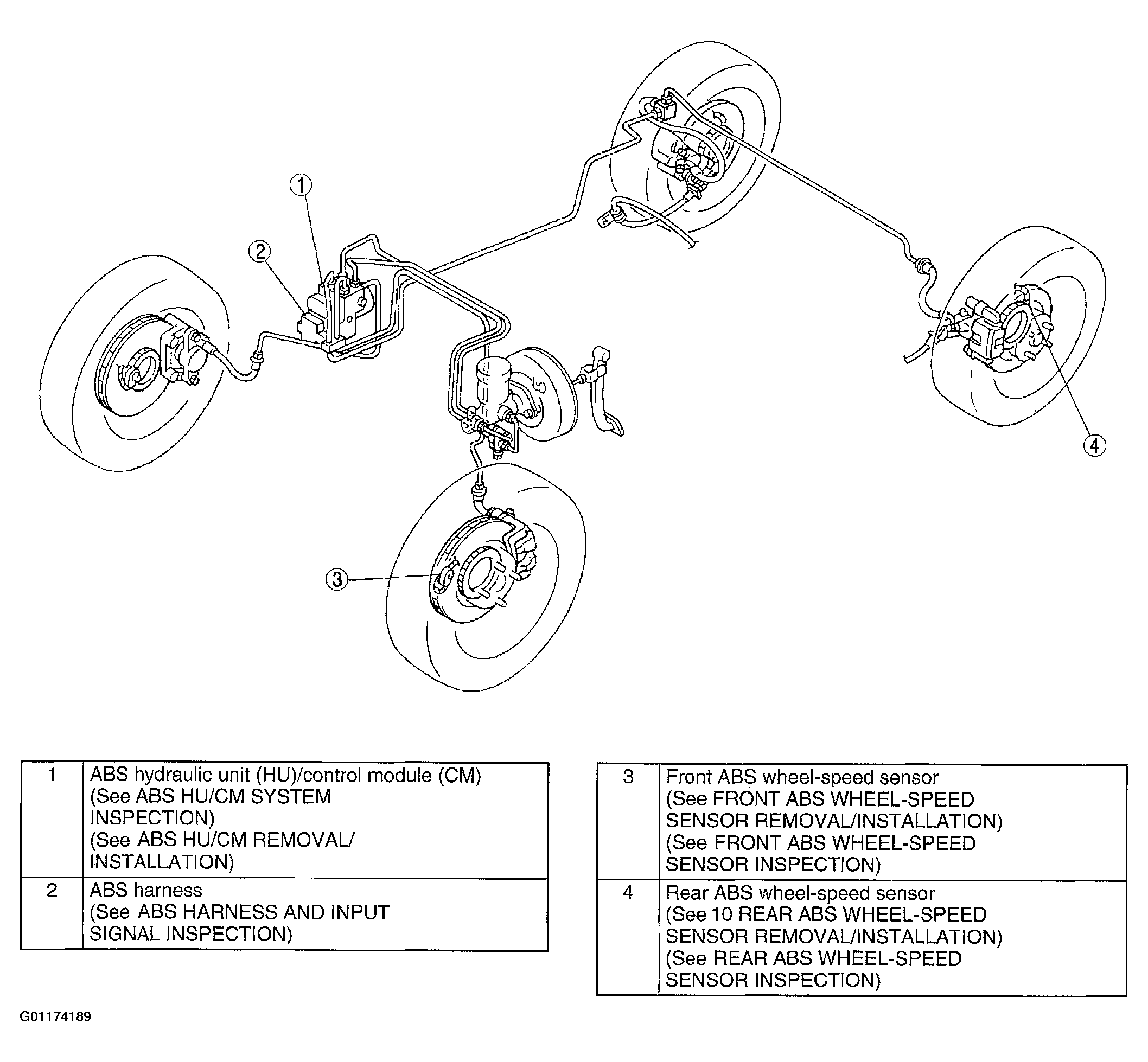

Fig 1: Locating Antilock Brake System Components
Courtesy of MAZDA MOTORS CORP.
Courtesy of MAZDA MOTORS CORP.
