Brakes Technical Data

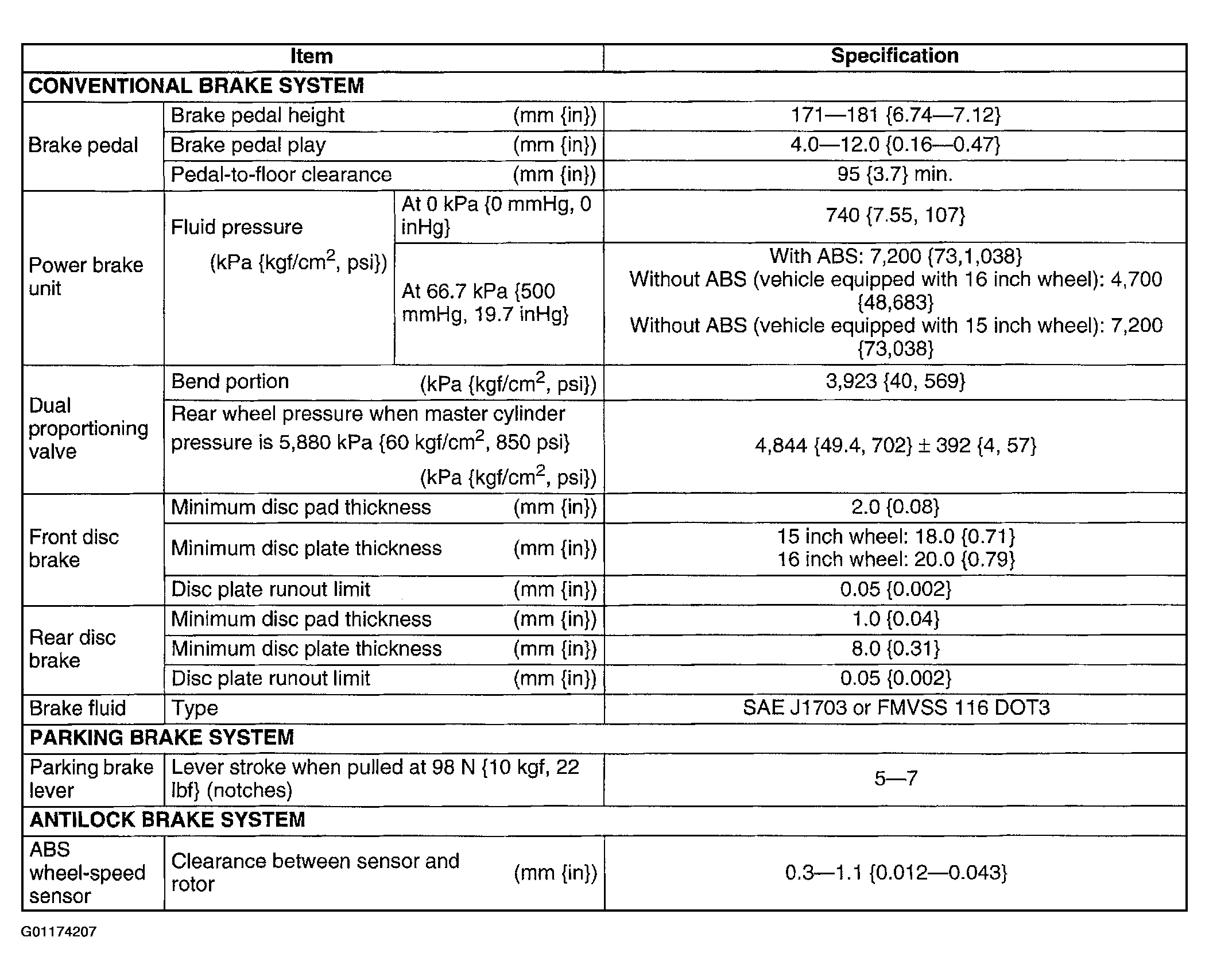

Fig 1: Brakes Technical Data Table
Courtesy of MAZDA MOTORS CORP.
Courtesy of MAZDA MOTORS CORP.
