Rotor Assembly Note

  1. Install the rotor-with the identification mark facing upward.

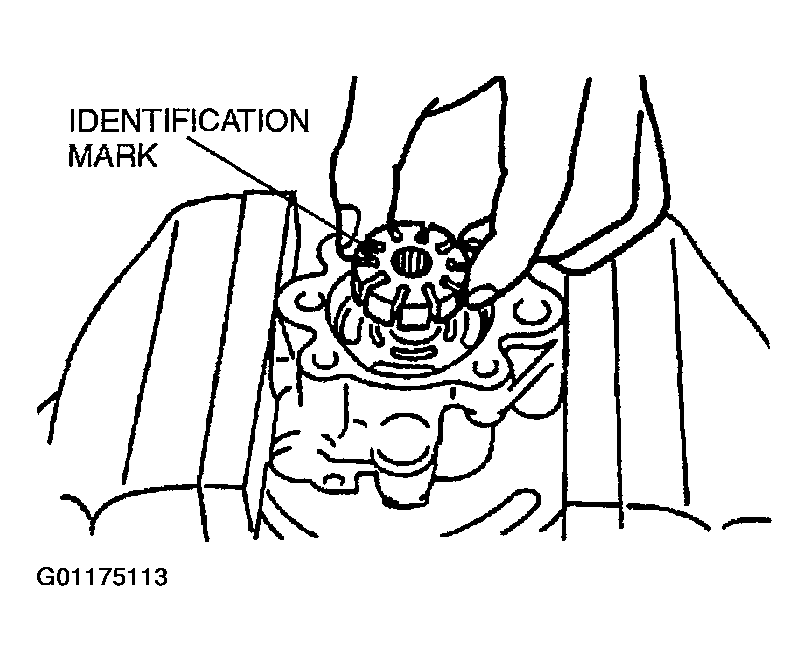

Fig 1: Assembling Rotor
G01175113Courtesy of MAZDA MOTORS CORP.
