Vane Assembly Note

  1. Place the vanes in the rotor with the rounded edges contacting the cam.

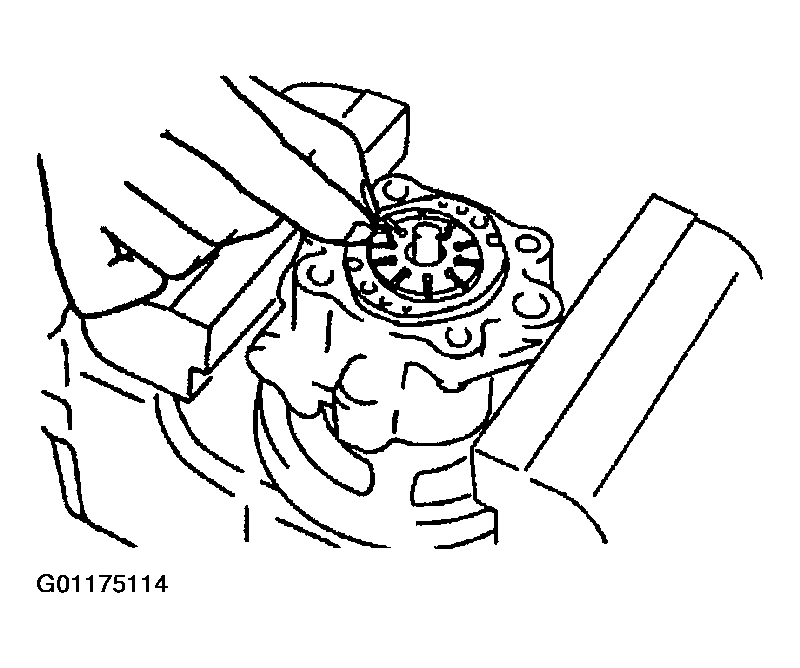

Fig 1: Assembling Vane
G01175114Courtesy of MAZDA MOTORS CORP.
