MBSP Installation Note

  1. Apply liquid gasket of SH780 or TB1207B to MBSP in a continuous bead as shown in the figure.
    1. Thickness phi2.5-3.5 mm {0.099-0.137 in}

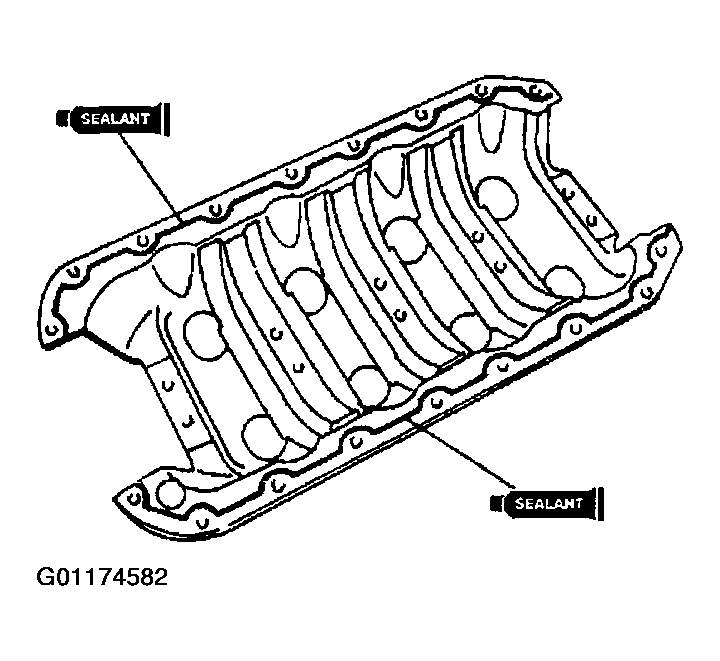

    Fig 1: Applying Liquid Gasket In A Continuous Bead
    G01174582Courtesy of MAZDA MOTORS CORP.
