Oil Pump Disassembly/Assembly: Notes

  1. Remove the oil pump. See OIL PUMP REMOVAL/INSTALLATION  .
  2. Disassemble in the order indicated in the table. See Fig 1 .
  3. Assemble in the reverse order of disassembly.
Fig 1: Oil Pump Disassembly Sequence Table
G01174594Courtesy of MAZDA MOTORS CORP.

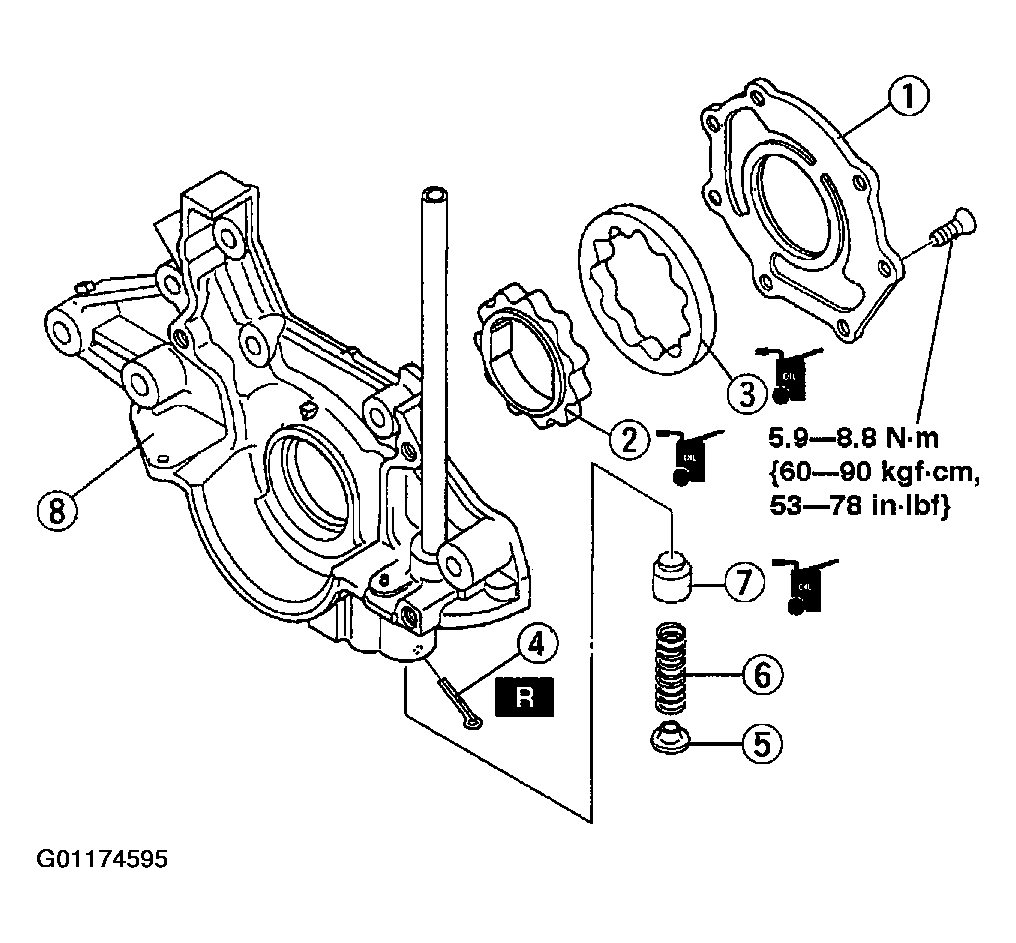

Fig 2: Identifying Oil Pump Components
G01174595Courtesy of MAZDA MOTORS CORP.
