Key Interlock System/Shift-Lock System

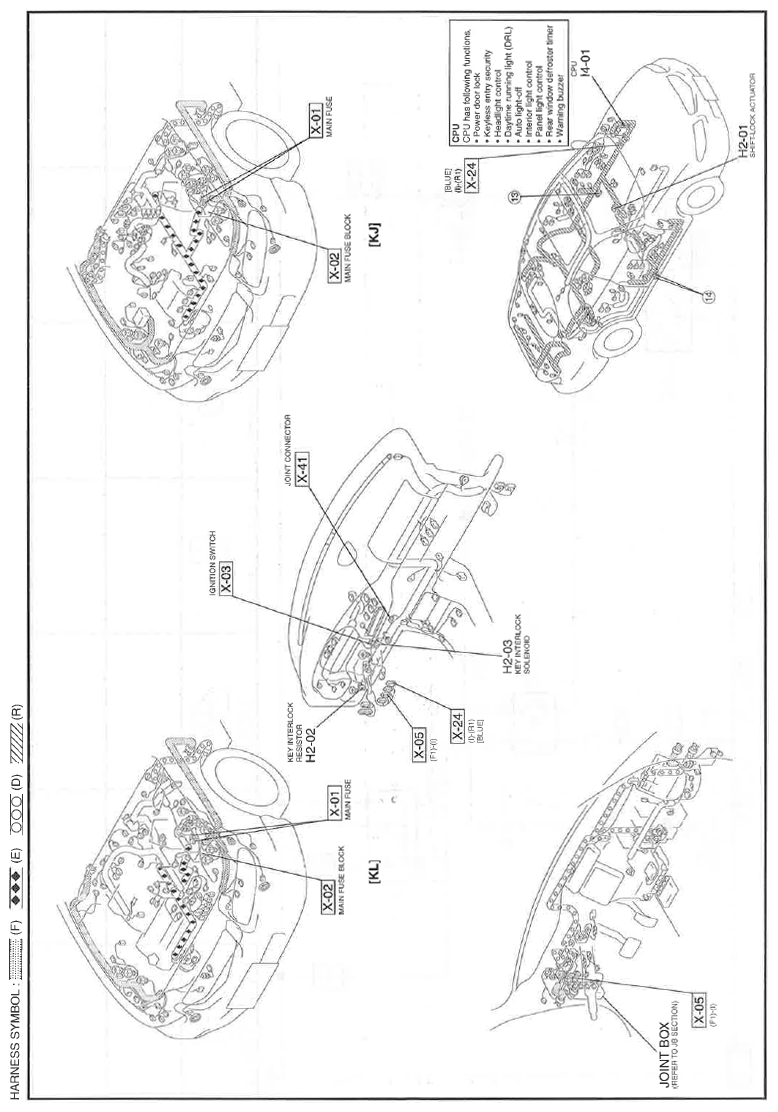

Fig 1: Key Interlock System/Shift-Lock System Wiring Diagram (H-2; 1 Of 2)
Courtesy of MAZDA MOTORS CORP.

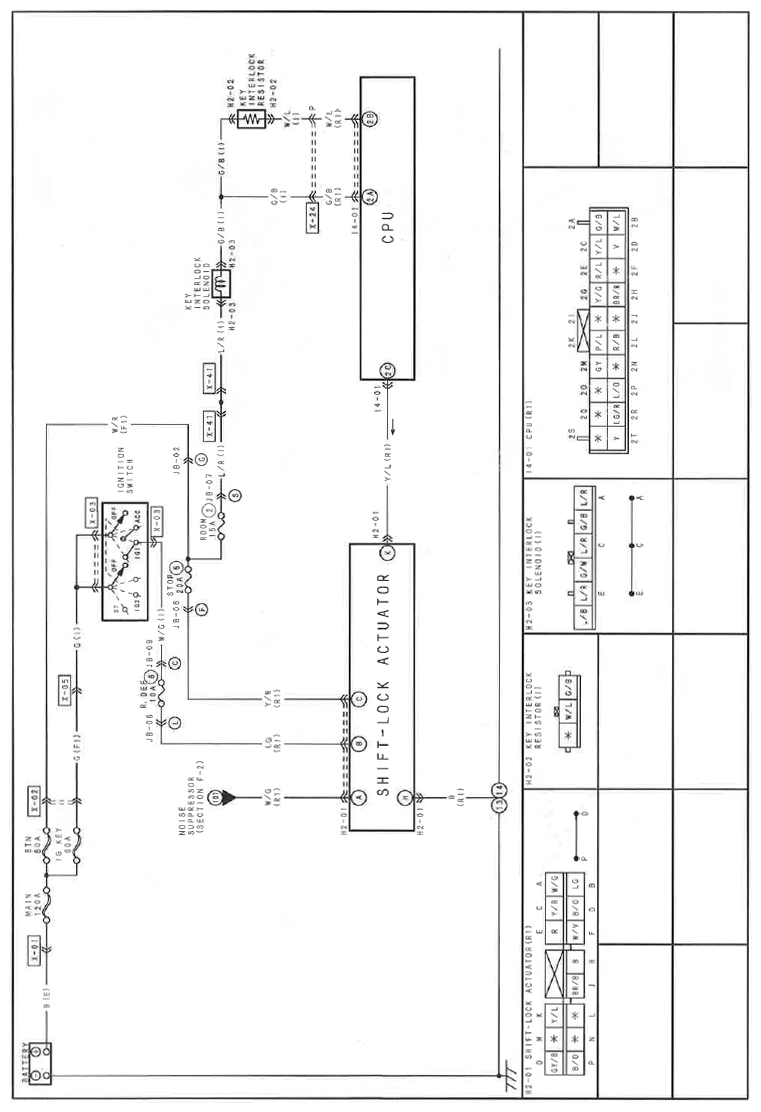

Fig 2: Key Interlock System/Shift-Lock System Wiring Diagram (H-2; 2 Of 2)
Courtesy of MAZDA MOTORS CORP.
