Front Power Window Regulator Removal/Installation: Notes

  1. Disconnect the negative battery cable.
  2. Remove the front door glass. See FRONT DOOR GLASS AND GUIDE REMOVAL/INSTALLATION  .
  3. Remove in the order indicated in the list.

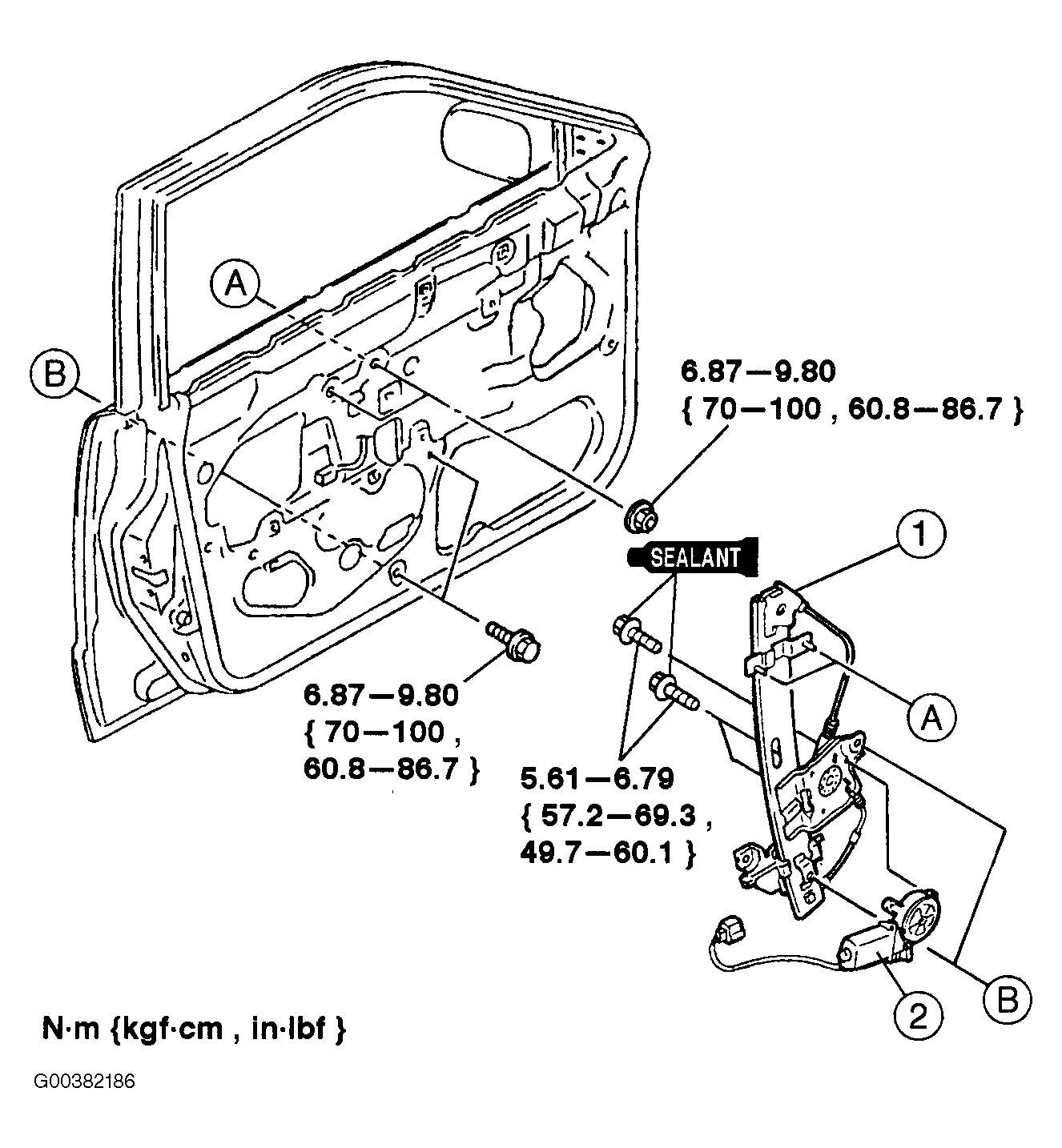

      Fig 1: Removing Front Window Regulator
      G00382186Courtesy of MAZDA MOTORS CORP.
    1. Front power window regulator.
    2. Front power window motor.
  4. Install in the reverse order of removal.
