Engine Coolant Level Inspection

WARNING: This page is about a different car, the 2003 Mazda 6. However, it is still accessible from the selected car via links, so may be relevant.

Verify that the coolant level in the coolant reservoir is between the F and L marks.
- If the engine coolant level is below L, remove the cooling system cap and add coolant. (See ENGINE COOLANT REPLACEMENT .)
Fig 1: Locating Cooling System Cap (L3)
Courtesy of MAZDA MOTORS CORP.

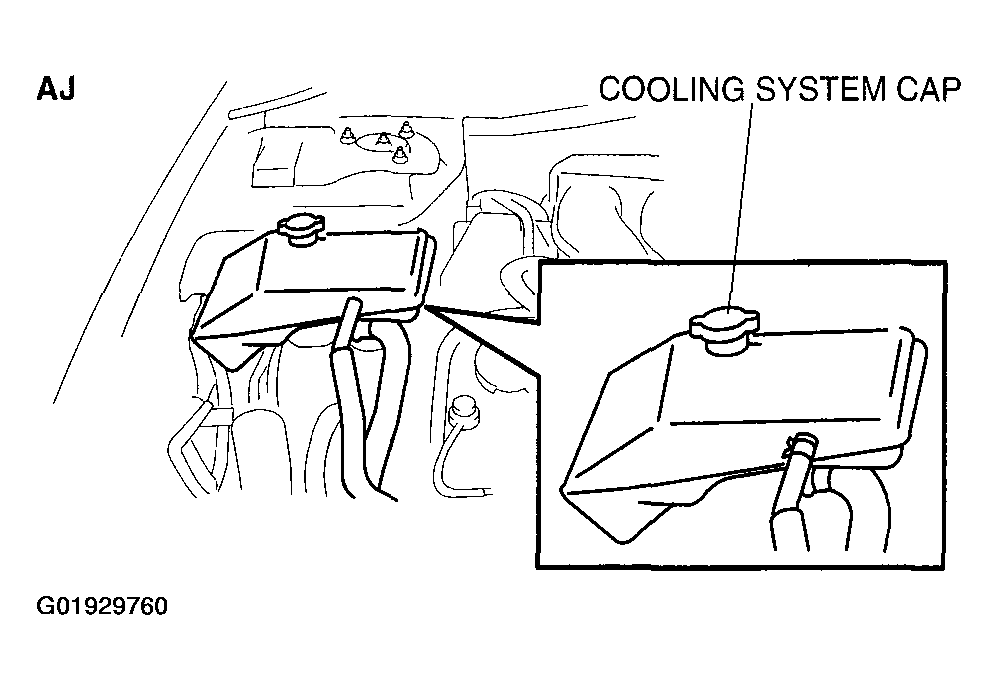

Fig 2: Locating Cooling System Cap (AJ)
Courtesy of MAZDA MOTORS CORP.
