Keyless Entry System Pre-Inspection

  1. Perform the following pre-inspection before troubleshooting.

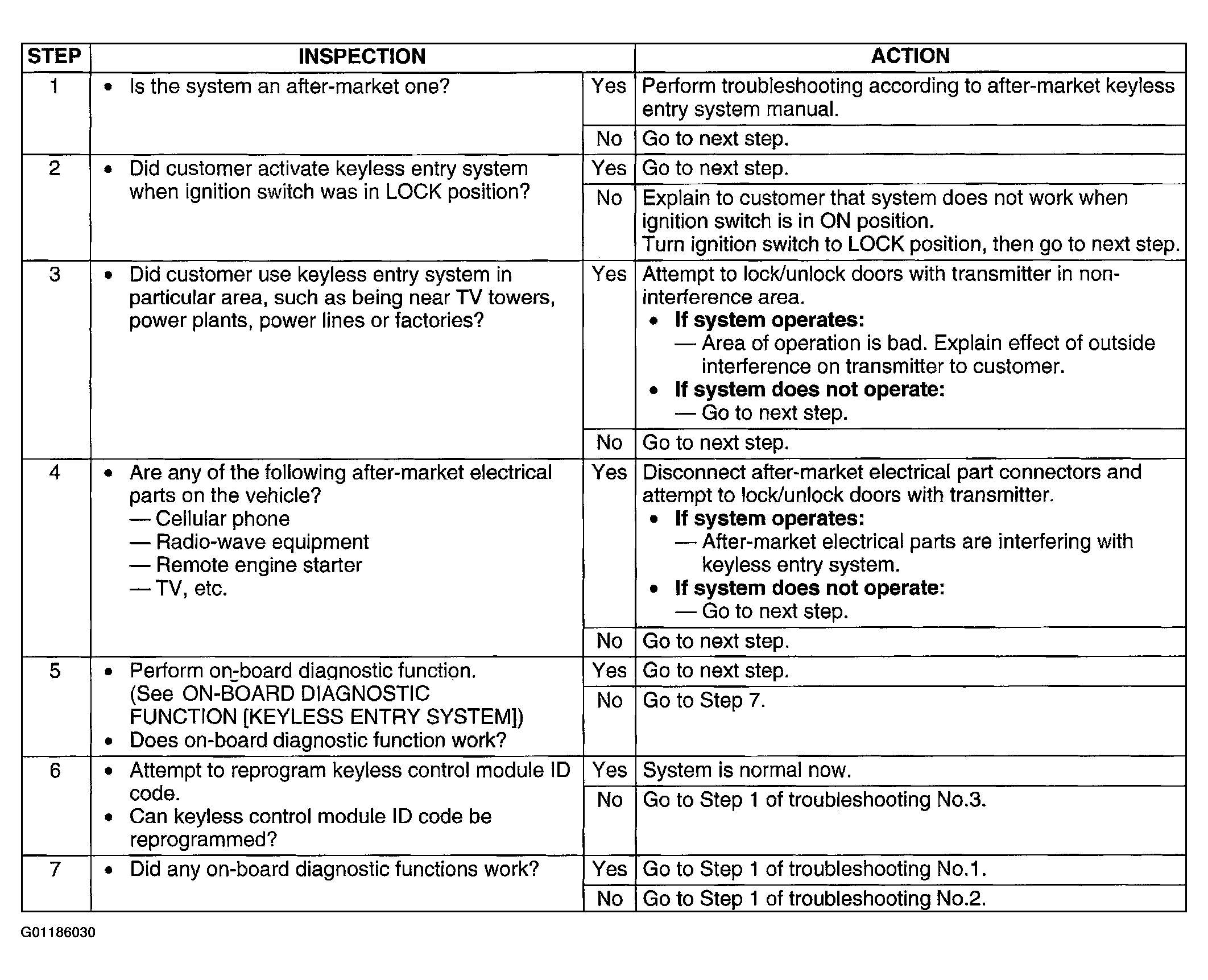

Fig 1: Keyless Entry Pre-Inspection
G01186030Courtesy of MAZDA MOTORS CORP.
