Keyless Entry System Check Sheet

NOTE:

Use the sheet below as a customer interview sheet when accepting a vehicle for service.
If the symptom is "Power door lock system does not operate with transmitter at all", find out how the customer uses the keyless entry system by following the check sheet.

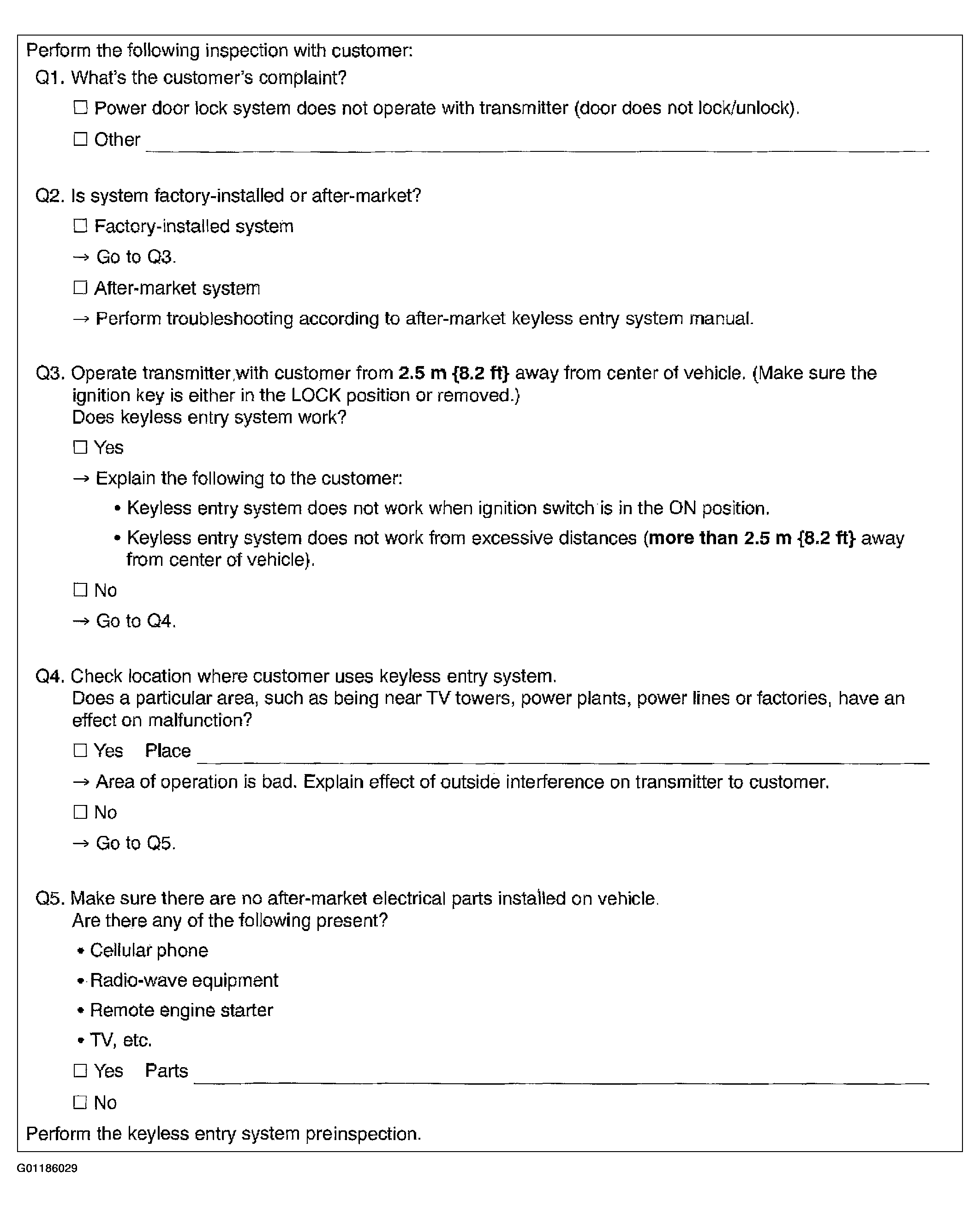

Fig 1: Keyless Entry Customer Check Sheet

Courtesy of MAZDA MOTORS CORP.
