Keyless Entry System Diagram

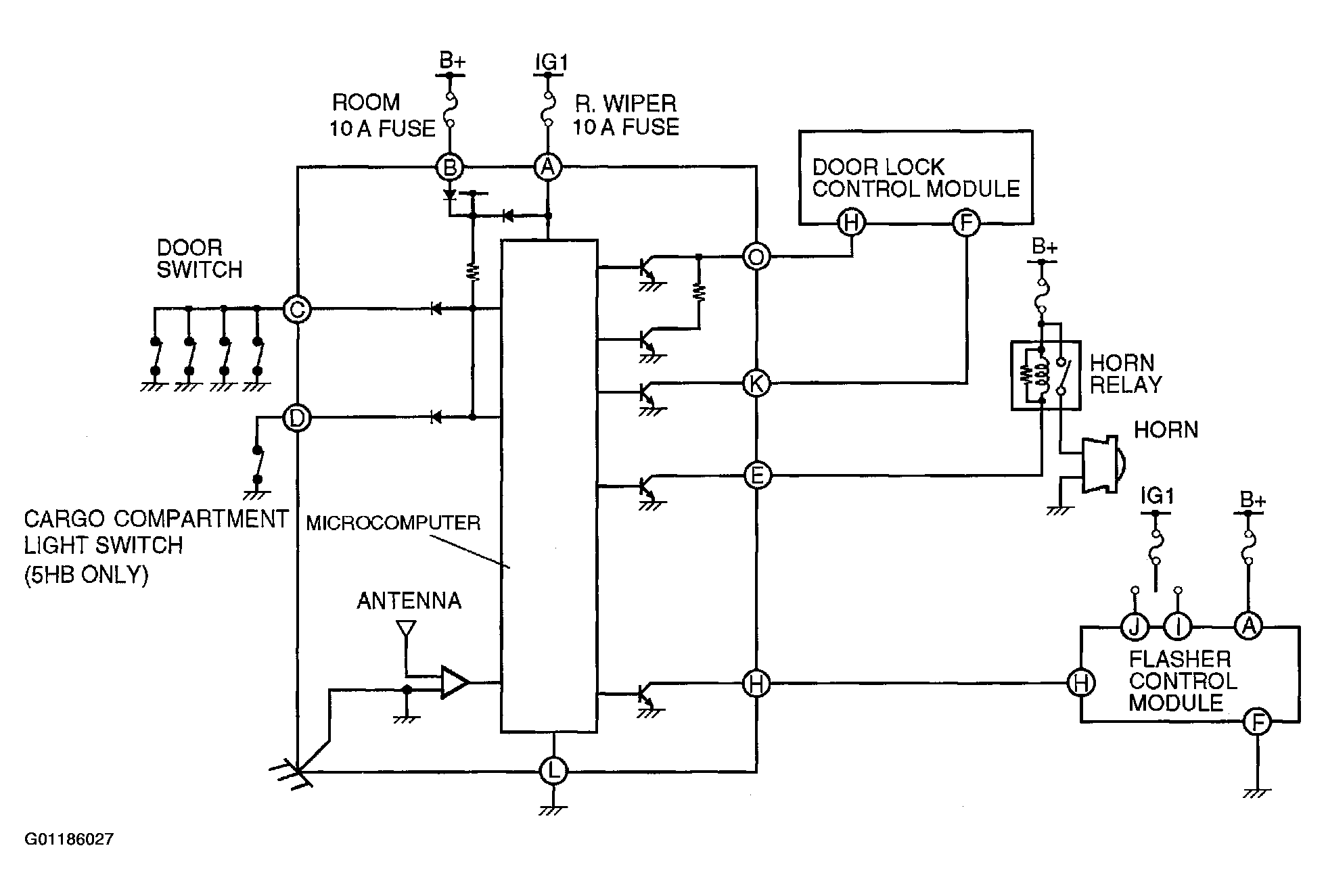

Fig 1: Keyless Entry System Diagram
Courtesy of MAZDA MOTORS CORP.
Courtesy of MAZDA MOTORS CORP.
