Combination Switch Removal/Installation: Notes

WARNING: This page is about a different car, the 2003 Mazda Protege5 and 2003 Mazda Protege. However, it is still accessible from the selected car via links, so may be relevant.
  1. Disconnect the negative battery cable.
  2. Remove the driver-side air bag module. (See DRIVER-SIDE AIR BAG MODULE .)
  3. Remove the steering wheel. (See STEERING WHEEL AND COLUMN REMOVAL/INSTALLATION .)
  4. Remove the column cover. (See COLUMN COVER REMOVAL/INSTALLATION .)
  5. Remove the clock spring. (See CLOCKSPRING .)
  6. Remove in the order indicated in the figure(s).

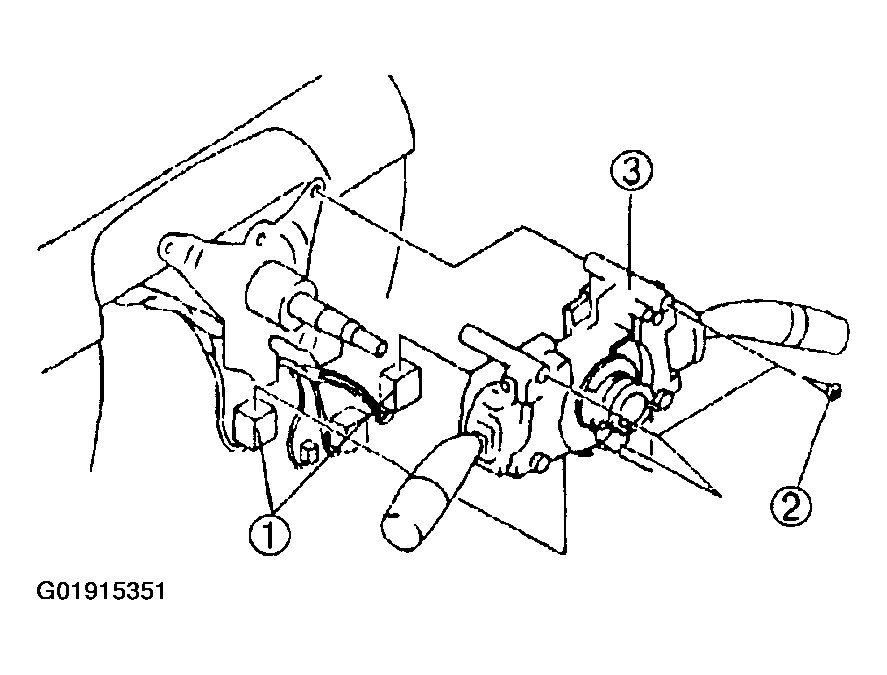

    Fig 1: Removing Combination Switch
    G01915351Courtesy of MAZDA MOTORS CORP.
    Fig 2: Combination Switch Removal Sequence
    G01915350Courtesy of MAZDA MOTORS CORP.
  7. Install in the reverse order of removal.
