Front Fog Light Switch Removal/Installation: Notes

WARNING: This page is about a different car, the 2003 Mazda Protege5 and 2003 Mazda Protege. However, it is still accessible from the selected car via links, so may be relevant.

Disconnect the negative battery cable.
Remove the left side panel from the dashboard.
Compress the tabs of the front fog light switch and pull the switch out of the dashboard.
Disconnect the connector to remove the front fog light switch.

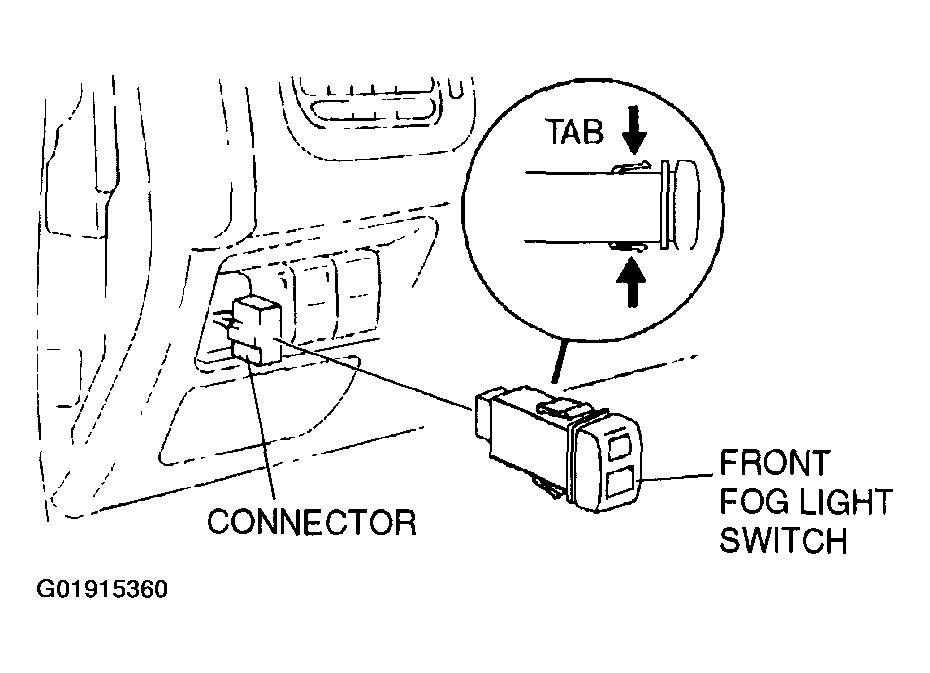

Fig 1: Removing Front Fog Light Switch
Courtesy of MAZDA MOTORS CORP.
Install in the reverse order of removal.
