Headlight Bulbs Removal/Installation: Notes
WARNING: This page is about a different car, the 2003 Mazda Protege5 and 2003 Mazda Protege. However, it is still accessible from the selected car via links, so may be relevant.
- Disconnect the negative battery cable.

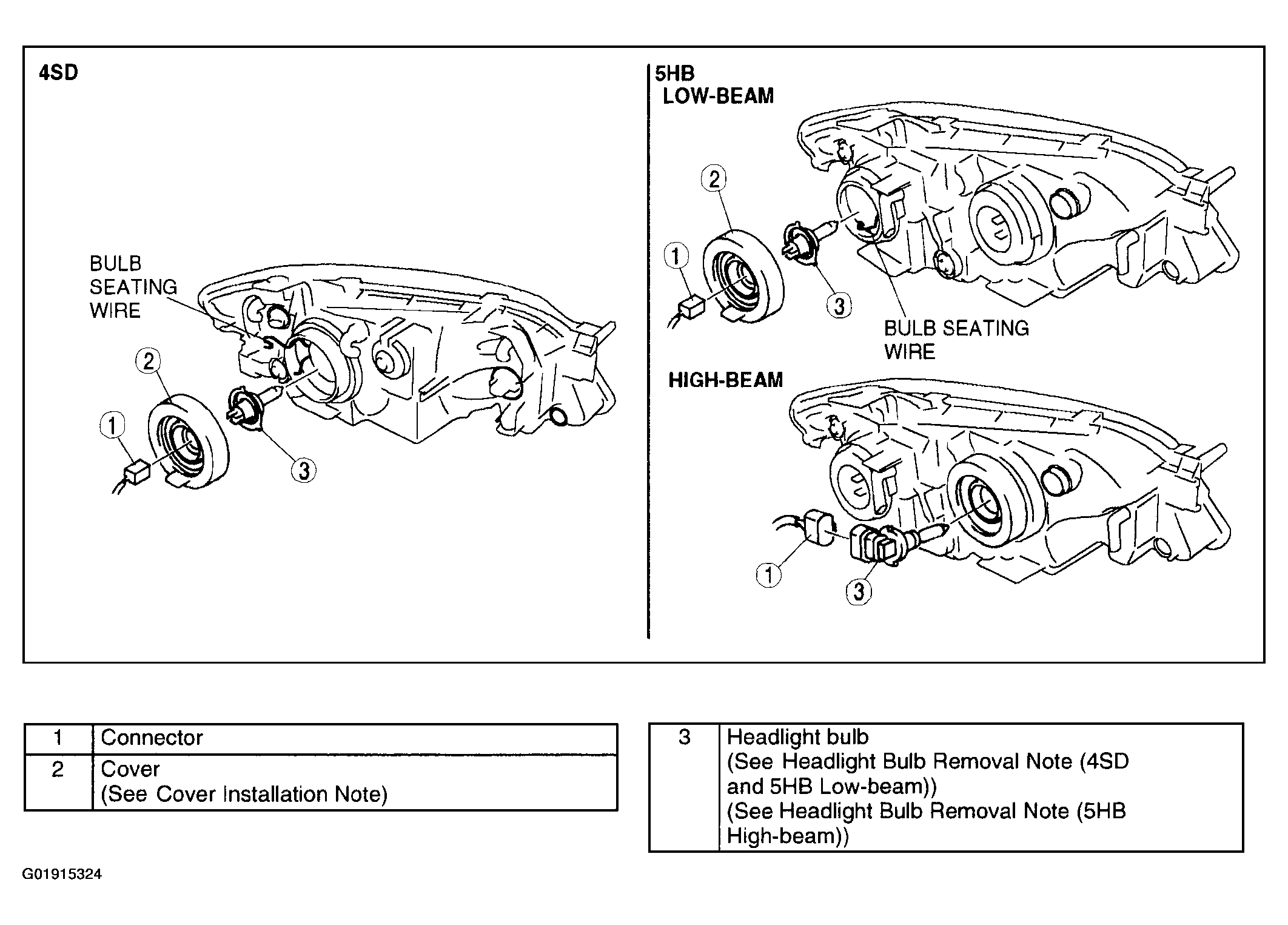

- Remove in the order indicated in the figure.CAUTION:
- A halogen bulb generates extremely high heat when it is used. If the surface of the bulb is dirty, excessive heat will build up and the light's life will be shortened. When replacing the bulb, hold the metal flange, not the glass.
- Install in the reverse order of removal.
