Interior And Map Light Removal/Installation: Notes

WARNING: This page is about a different car, the 2003 Mazda Protege5 and 2003 Mazda Protege. However, it is still accessible from the selected car via links, so may be relevant.

Disconnect the negative battery cable.
Remove in the order indicated in the figure(s).

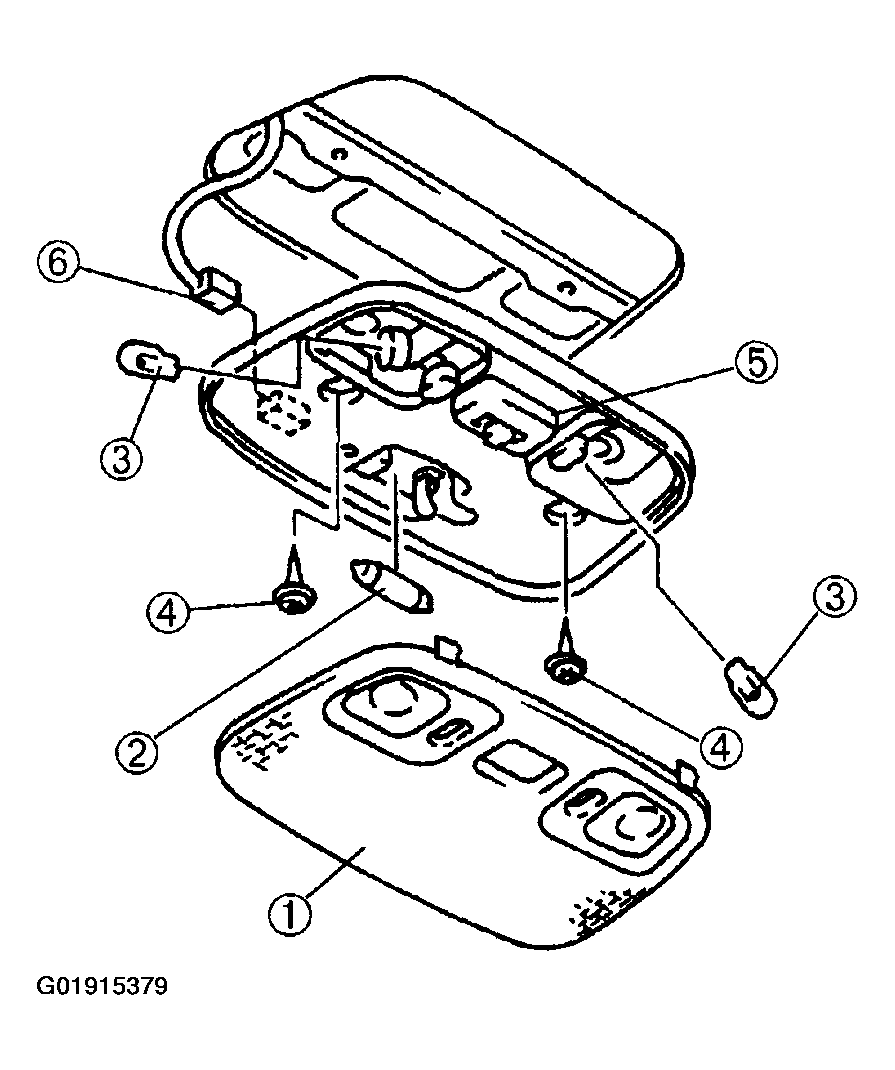

Fig 1: Removing Interior And Map Light
Courtesy of MAZDA MOTORS CORP.

Fig 2: Interior And Map Light Removal Sequence
Courtesy of MAZDA MOTORS CORP.
Install in the reverse order of removal.
