Keyless Entry System On-Board Diagnostic Function

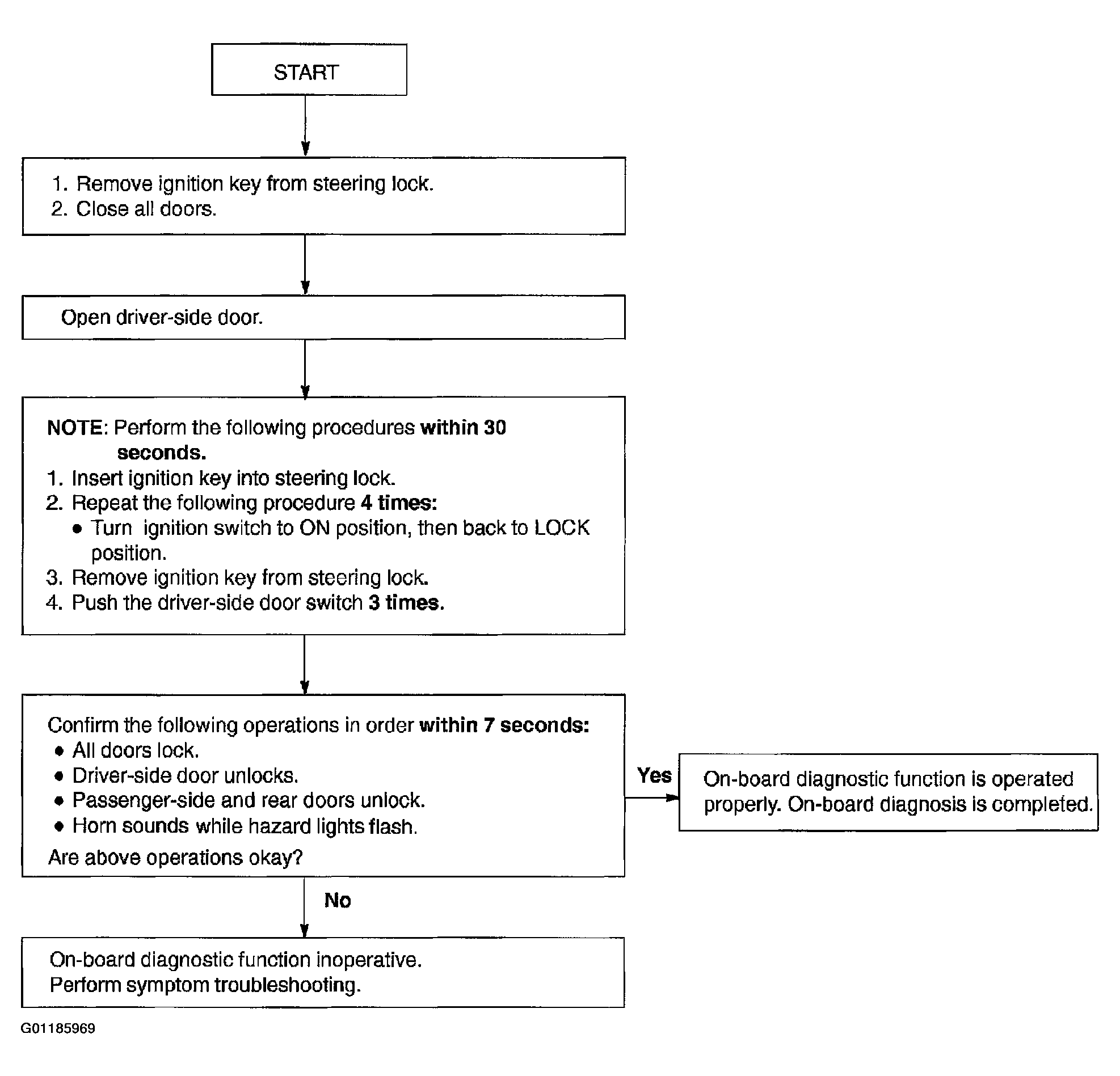

Fig 1: Keyless Entry Function Check
G01185969Courtesy of MAZDA MOTORS CORP.
