Cruise Control Switch Inspection

  1. Disconnect the negative battery cable.
  2. Remove the driver-side air bag module. See DRIVER-SIDE AIR BAG MODULE .
  3. Disconnect the cruise control switch connector.
  4. Measure the resistance and inspect for continuity between the cruise control switch terminals using an ohmmeter.

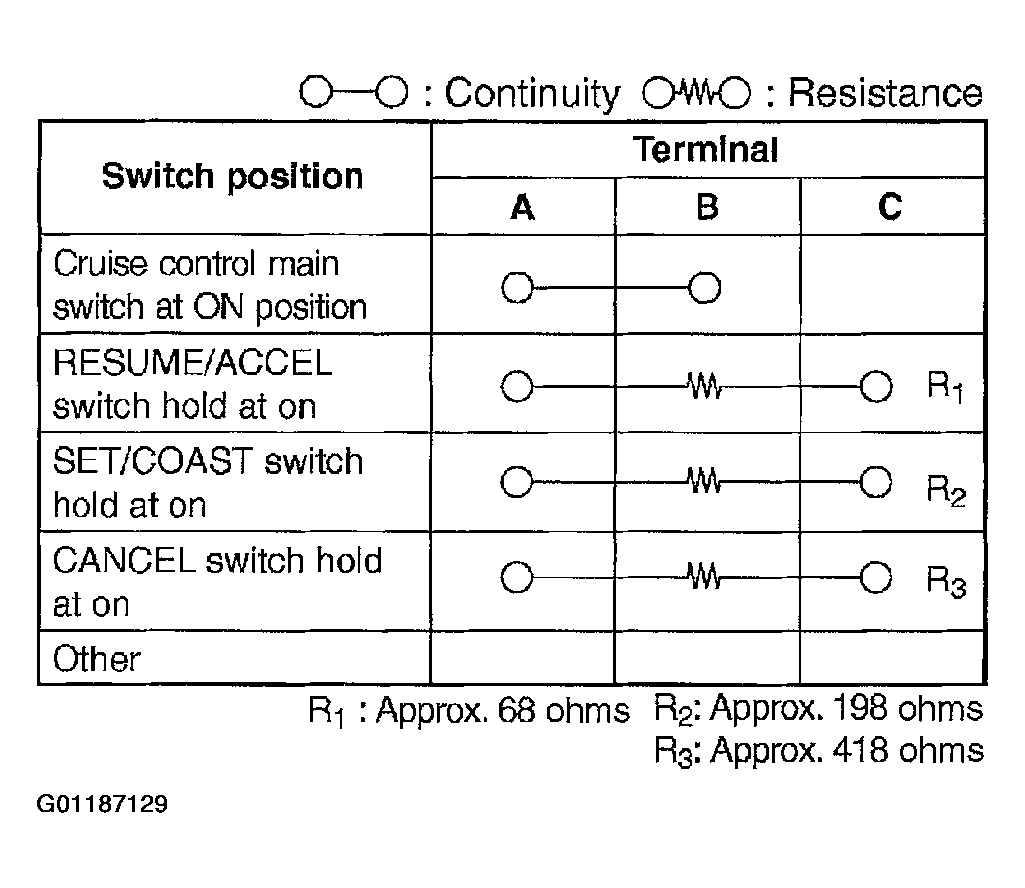

    Fig 1: Cruise Control Switch Continuity Check
    G01187129Courtesy of MAZDA MOTORS CORP.
    Fig 2: Identifying Cruise Control Switch Terminals & Circuits
    G01187130Courtesy of MAZDA MOTORS CORP.
