Cruise Control Switch Removal/Installation

  1. Disconnect the negative battery cable.
  2. Remove the driver-side air bag module. See DRIVER-SIDE AIR BAG MODULE .
  3. Disconnect the cruise control switch connector.
  4. Remove in the order indicated in the illustration.
    Fig 1: Removing/Installing Cruise Control Switch (1 Of 2)
    G01187127Courtesy of MAZDA MOTORS CORP.

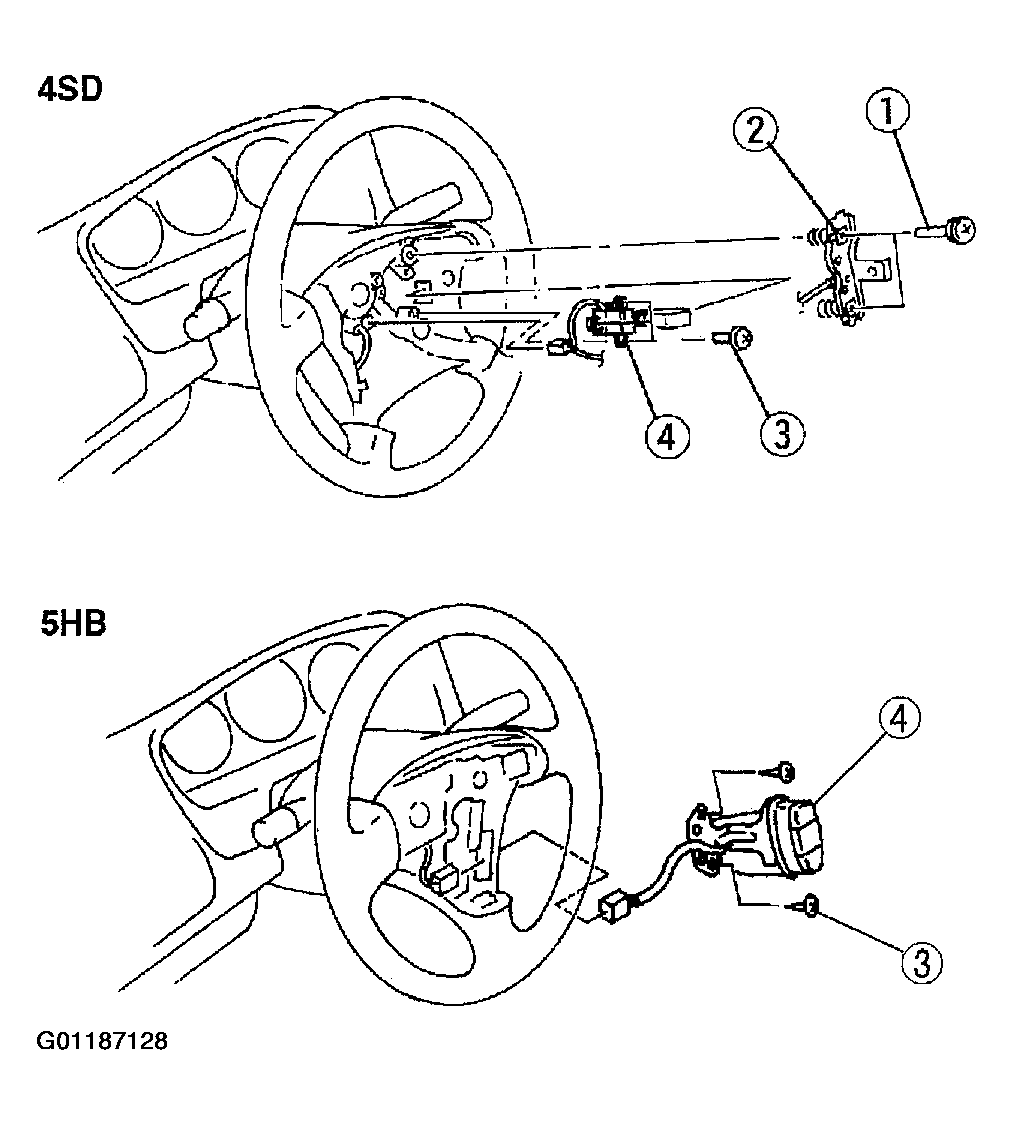

    Fig 2: Removing/Installing Cruise Control Switch (2 Of 2)
    G01187128Courtesy of MAZDA MOTORS CORP.
  5. Install in the reverse order of removal.
