Console Cover Removal Note

Disengage clip A using a tape-wrapped flathead screwdriver.

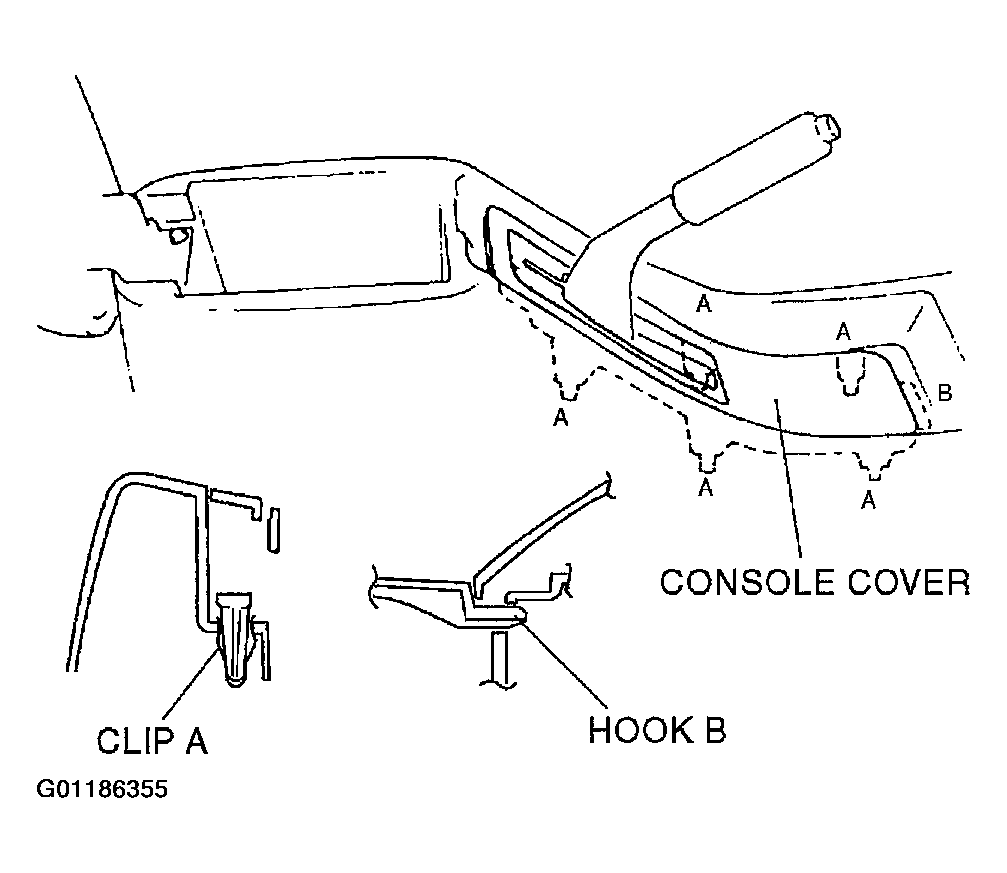

Fig 1: Locating Console Cover Clip A & Hook B
Courtesy of MAZDA MOTORS CORP.
Pull the console cover upward, then disengage hook B from the console.
