Dashboard Disassembly/Assembly

  1. Disassemble in the order indicated in the illustration.

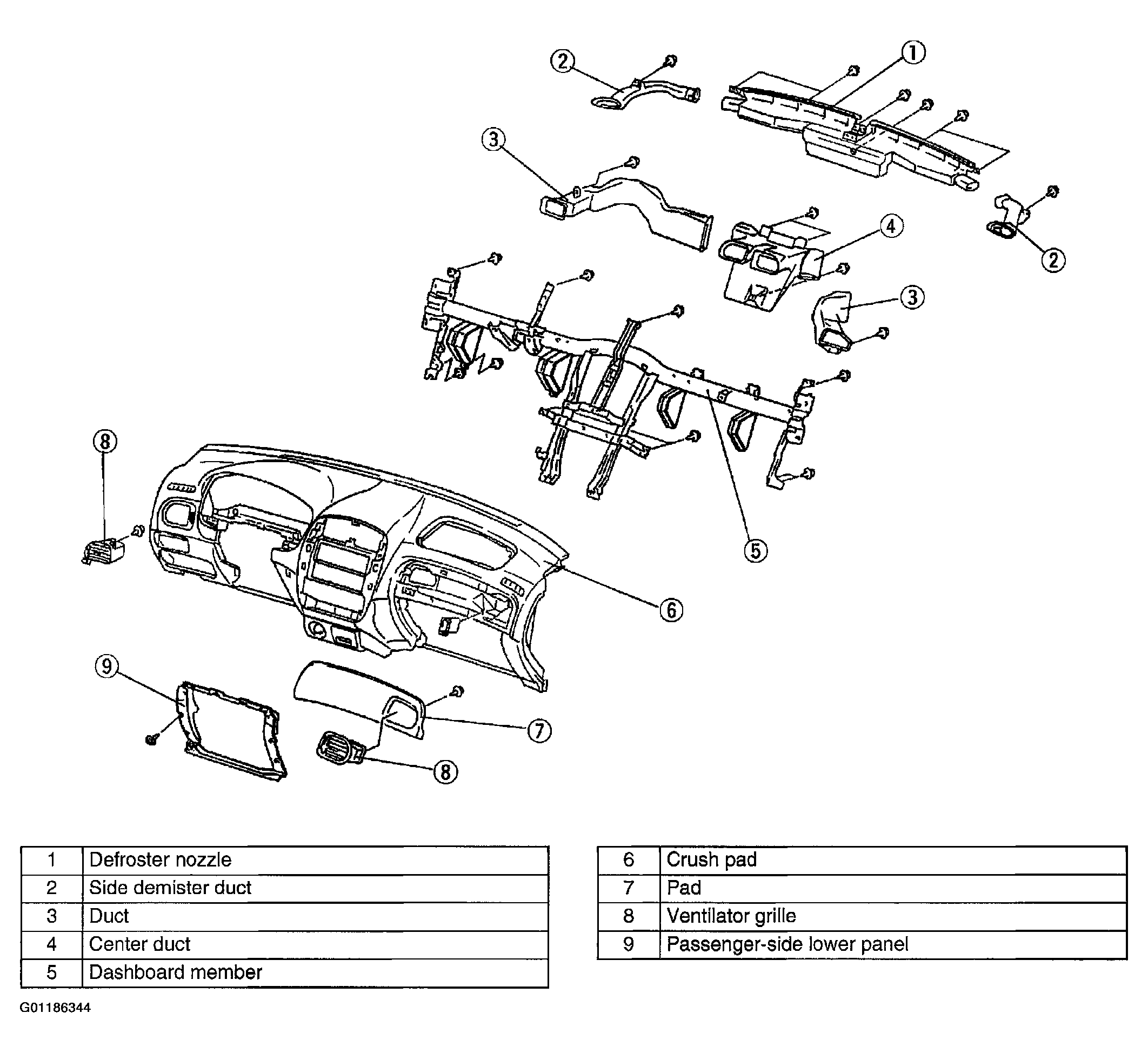

    Fig 1: Exploded View Of Dashboard Assembly
    G01186344Courtesy of MAZDA MOTORS CORP.
  2. Assemble in the reverse order of disassembly.
