Instrument Cluster Removal/Installation: Notes

  1. Disconnect the negative battery cable.
  2. Pull down the adjusting lever of the tilt steering wheel and push the steering wheel down.
  3. Remove the meter hood. See METER HOOD REMOVAL/INSTALLATION .
  4. Remove in the order indicated in the illustrations.
    Fig 1: Removing/Installing Instrument Cluster (1 Of 2)
    G01186616Courtesy of MAZDA MOTORS CORP.

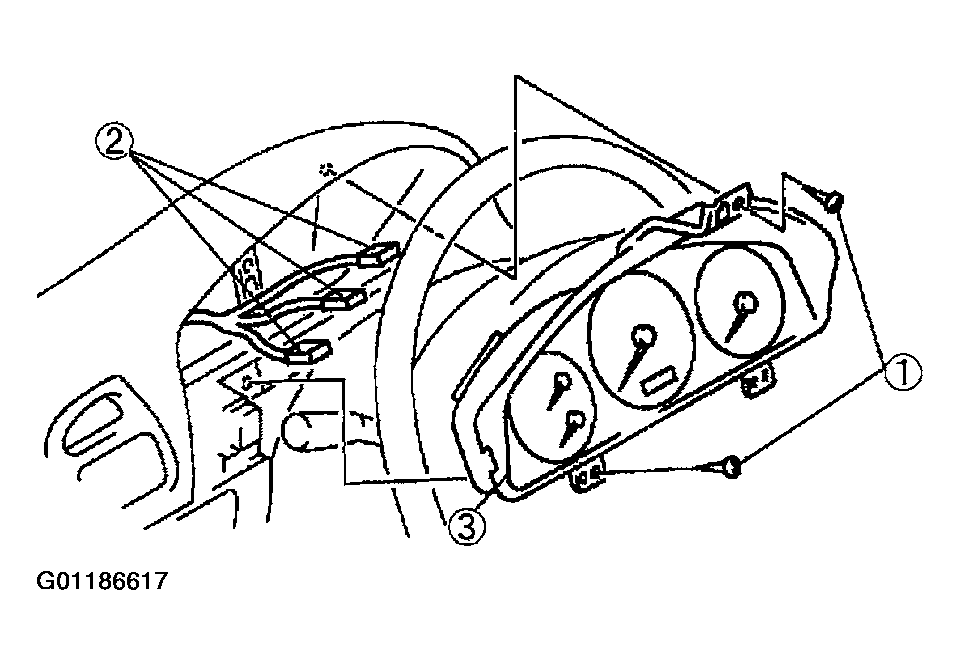

    Fig 2: Removing/Installing Instrument Cluster (2 Of 2)
    G01186617Courtesy of MAZDA MOTORS CORP.
  5. Install in the reverse order of removal.
