1: No Communication With the Module-ABS Control Module

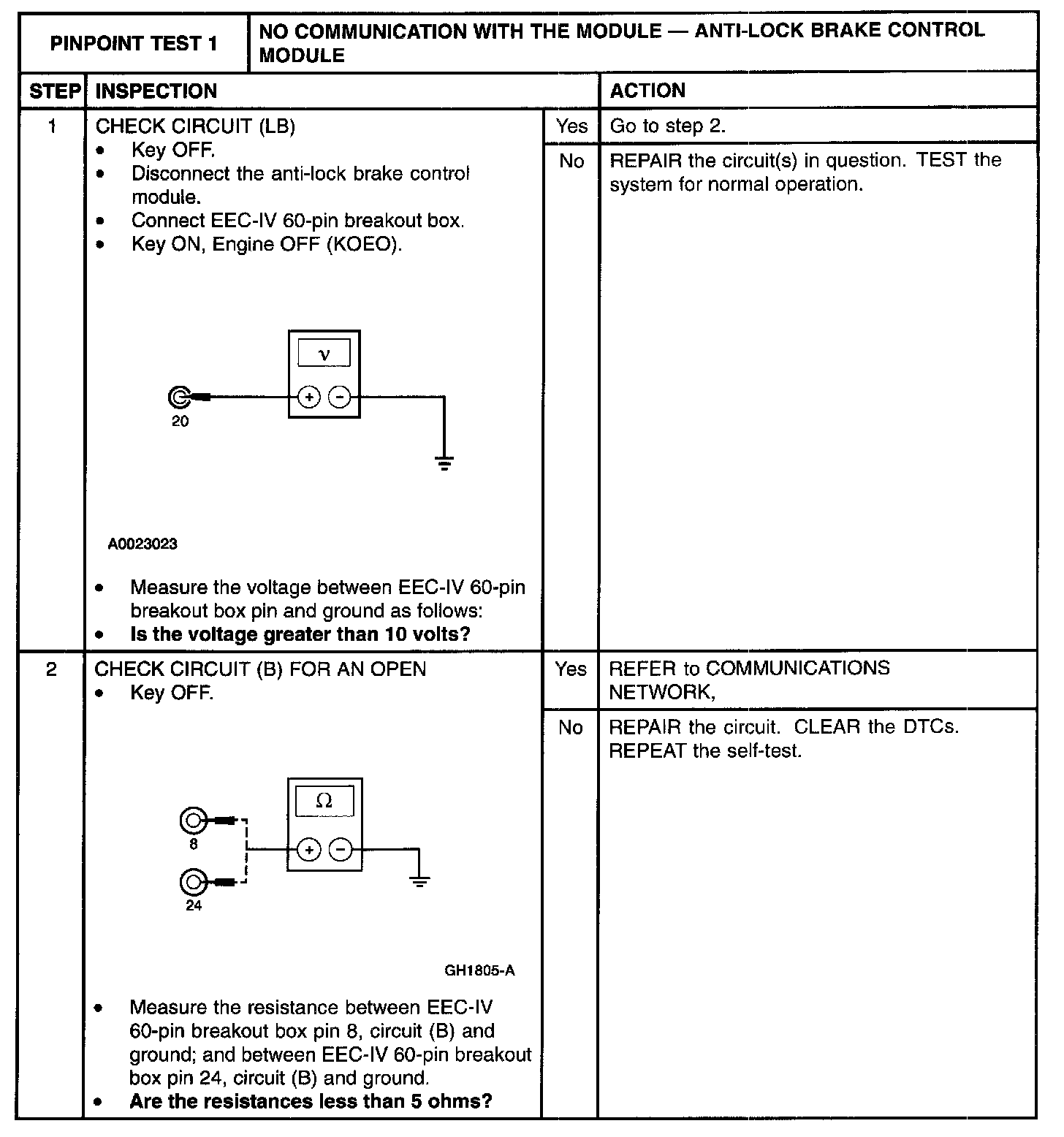

PINPOINT TEST 1: NO COMMUNICATION WITH THE MODULE-ANTI-LOCK BRAKE CONTROL MODULE





1 of 2





2 of 2
