Exploded Views

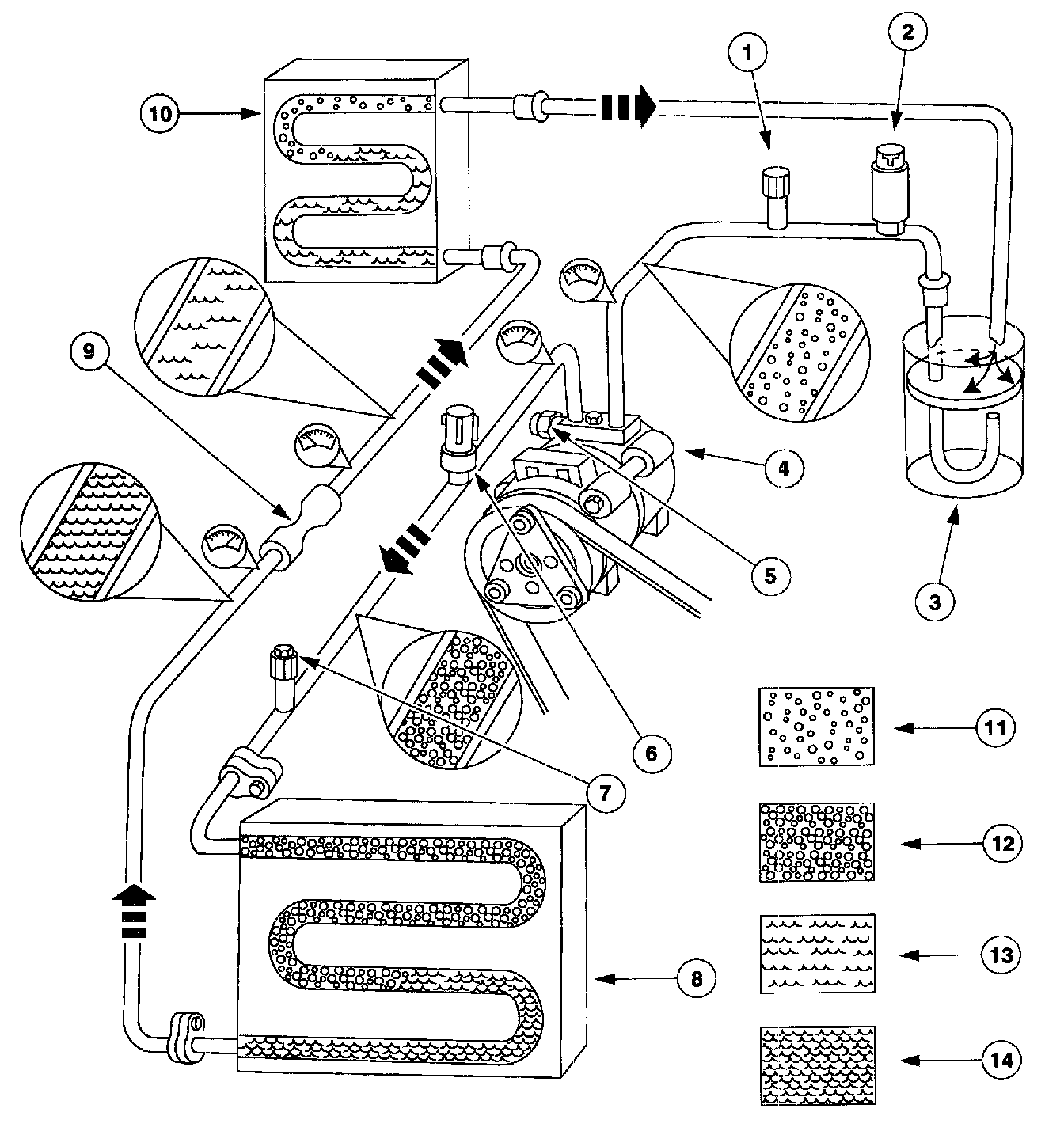

Clutch Cycling Orifice Tube Type Refrigerant System:

1. A/C charge valve port (low side)
2. A/C cycling switch
3. Suction accumulator/drier
4. A/C compressor
5. A/C compressor pressure relief valve
6. Dual pressure switch
7. A/C charge valve port (high side)
8. A/C condenser core
9. A/C evaporator core orifice
10. A/C evaporator core
11. Low pressure vapor
12. High pressure vapor
13. Low pressure liquid
14. High pressure liquid
