Generic Electronic Module (GEM)

Troubleshooting Index - Generic Electronic Module (GEM):

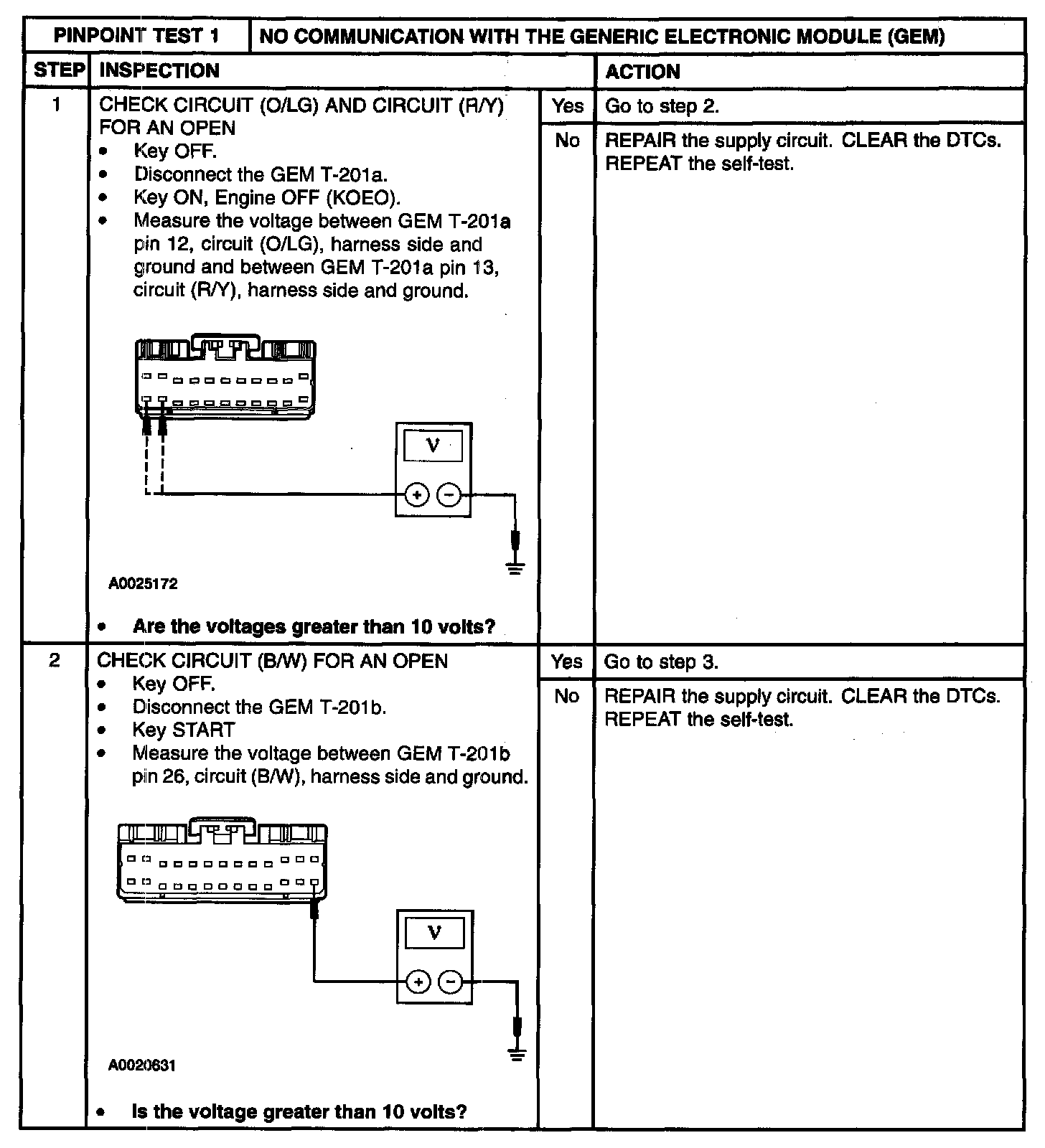

Step 1 - 2:

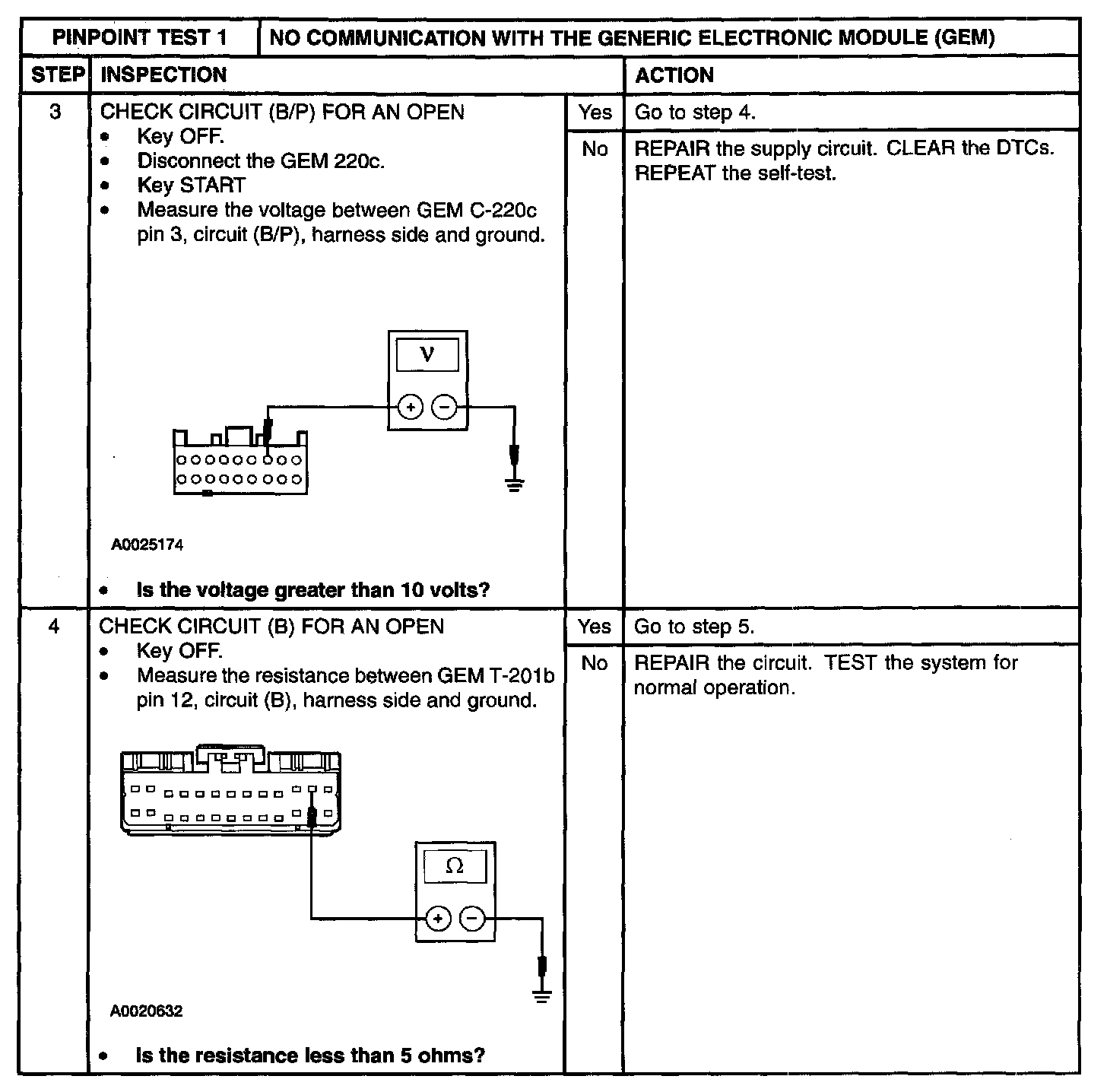

Step 3 - 4:

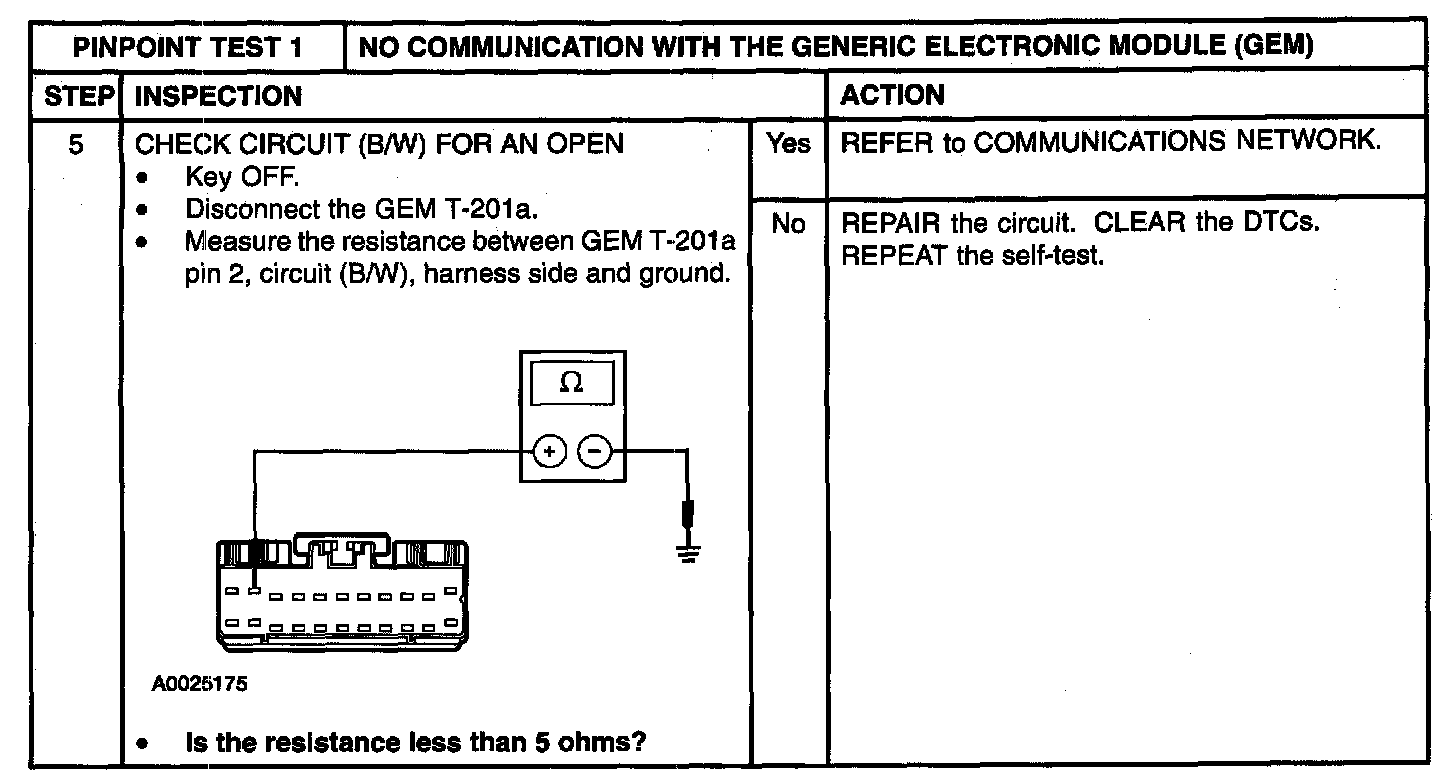

Step 5:
