Connector Locations

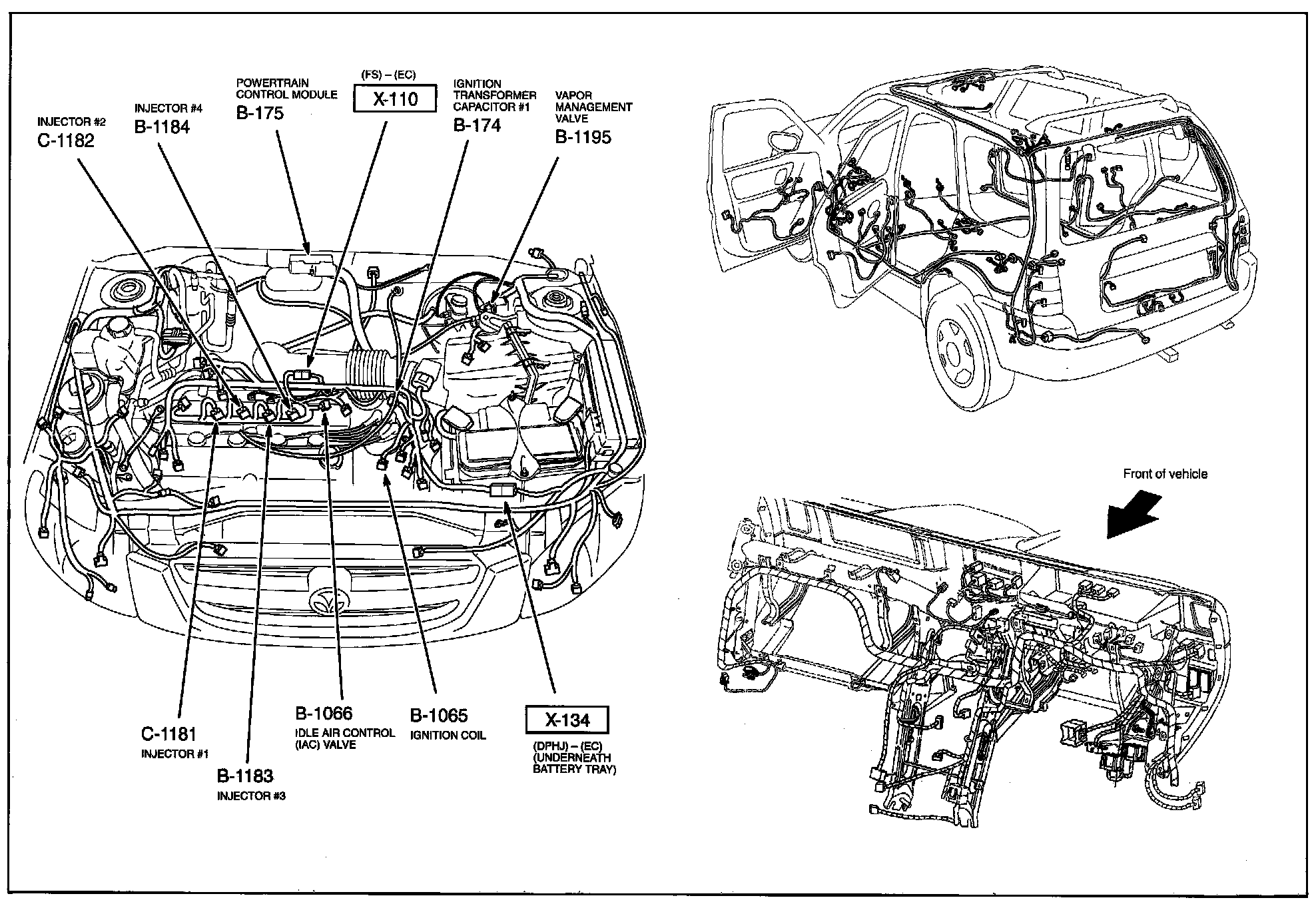

B-1a - Engine Control System Harness/Connector Symbols:

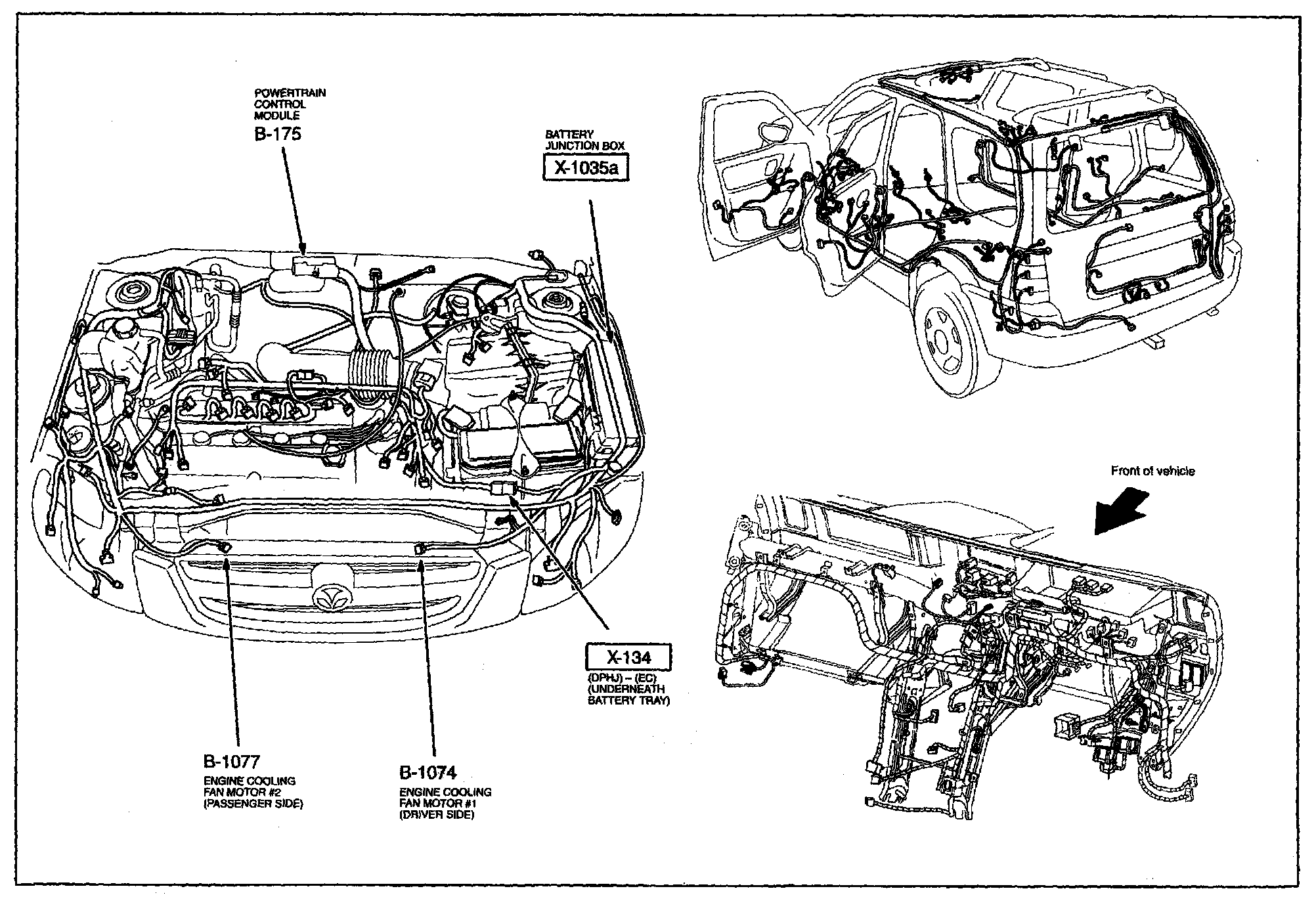

B-1b - Engine Control System Harness/Connector Symbols:

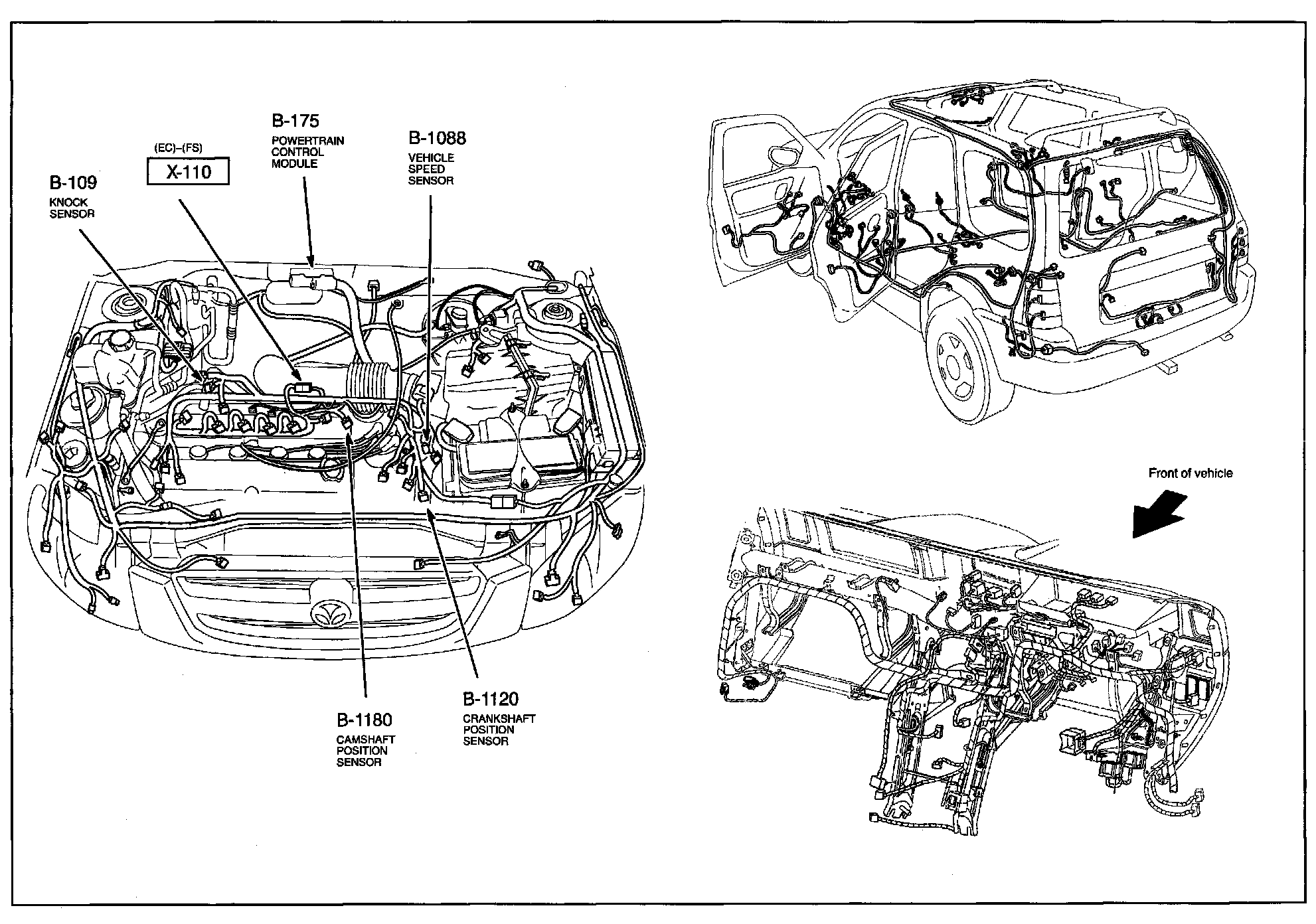

B-1c - Engine Control System Harness/Connector Symbols:

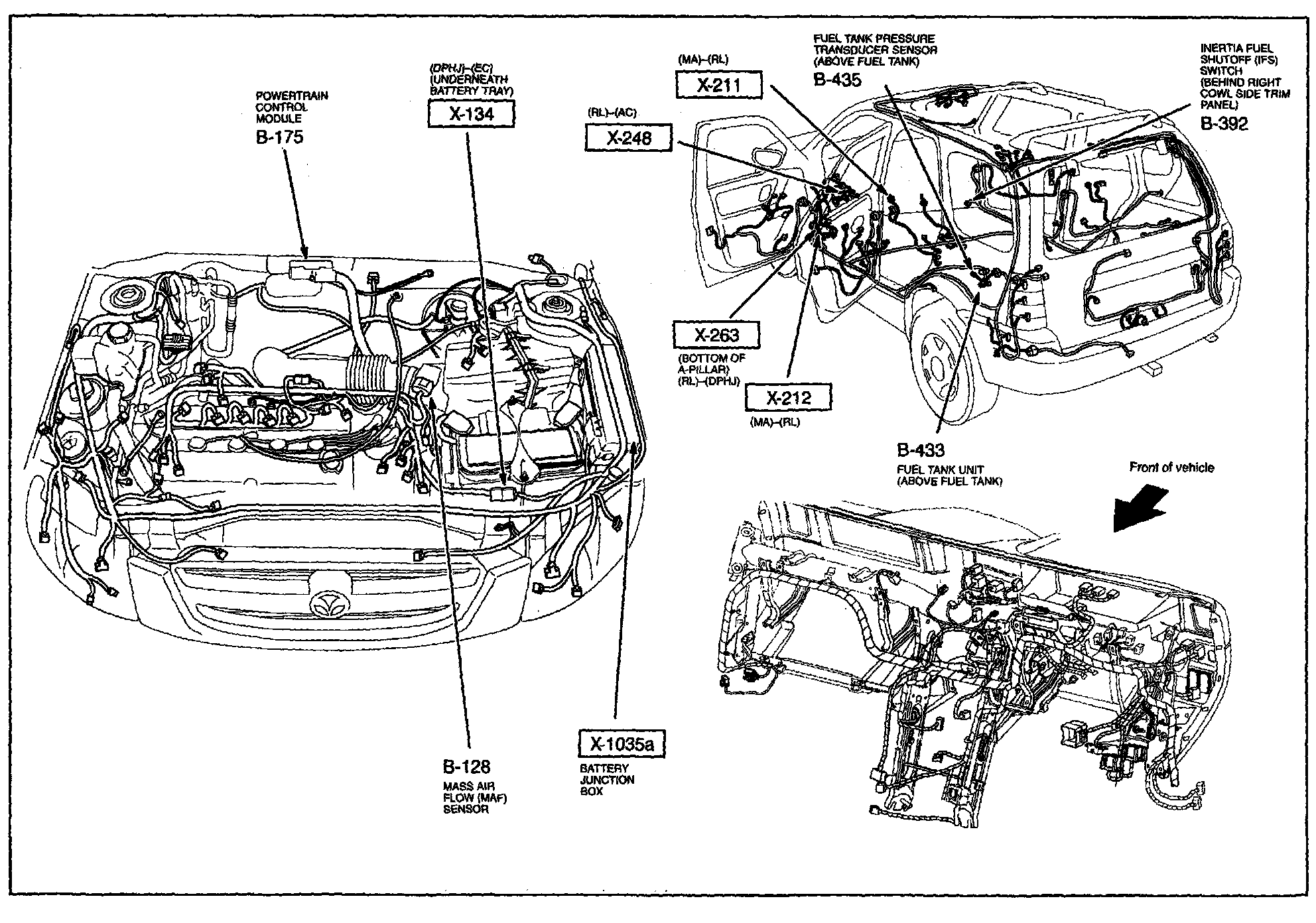

B-1d - Engine Control System Harness/Connector Symbols:

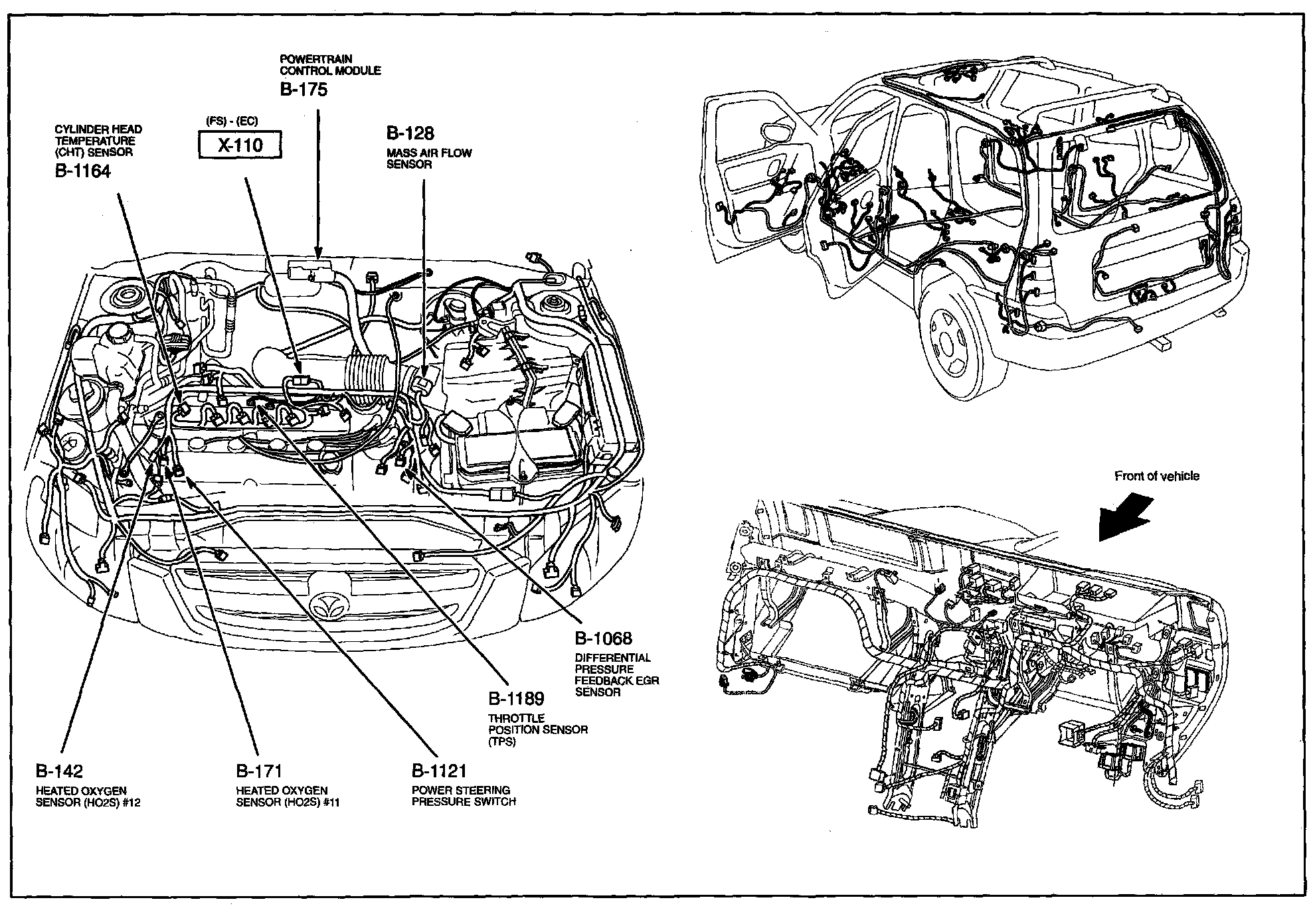

B-1e - Engine Control System Harness/Connector Symbols:

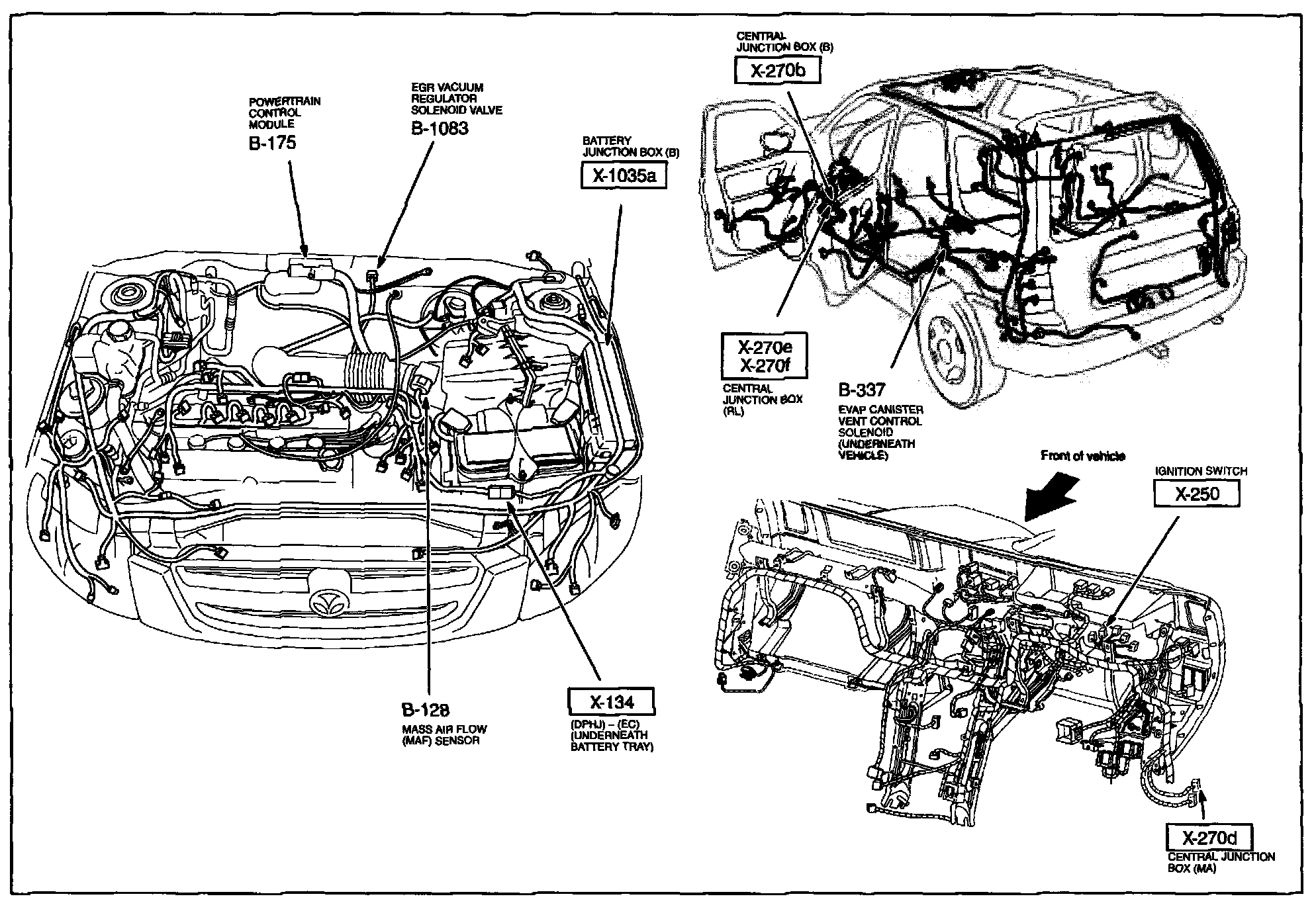

B-1f - Engine Control System Harness/Connector Symbols:
