Test 15: Ignition Scope Test

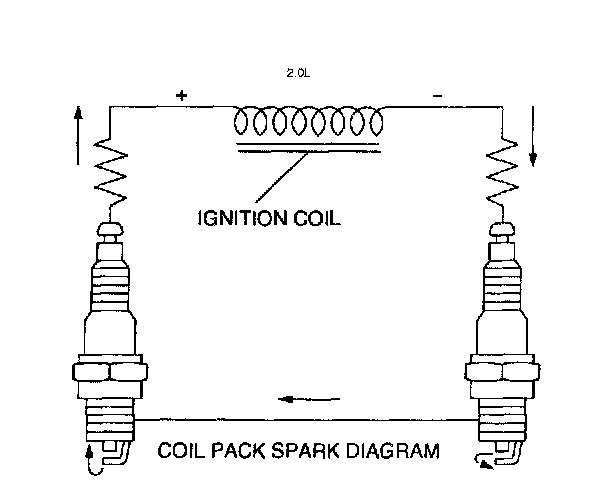

2.0L:

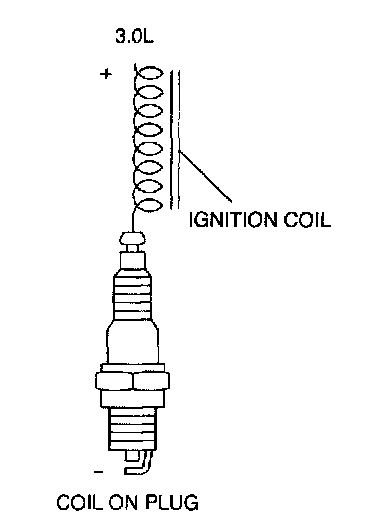

3.0L:

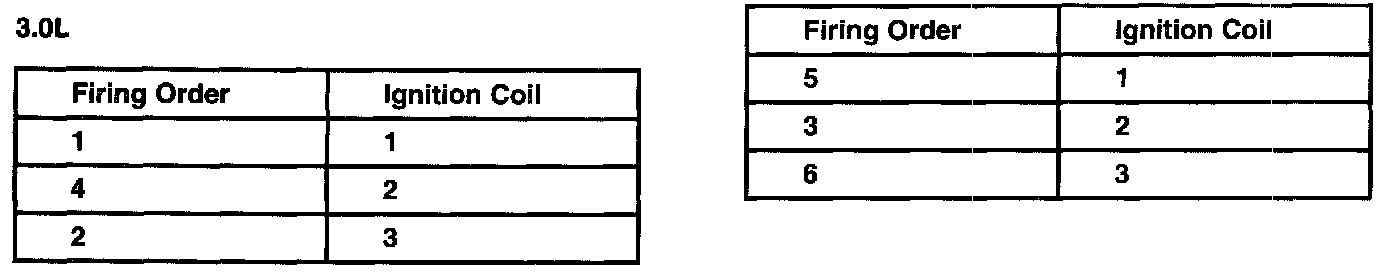

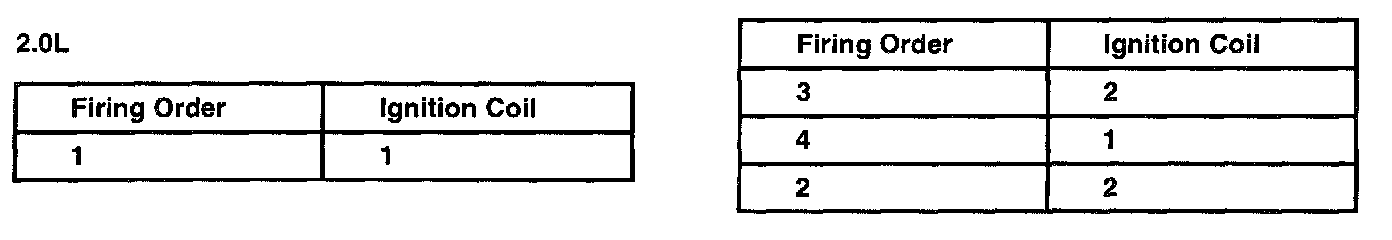

Firing Order (2.0L):

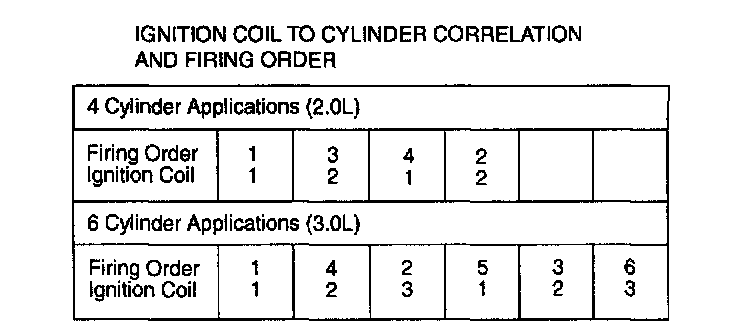

Ignition Coil To Cylinder Correlation And Firing Order (2.0L And 3.0L):

CAUTION: Fouled plugs or a damaged ignition may cause high catalyst temperatures. Check components next to the catalyst and muffler for heat damage.

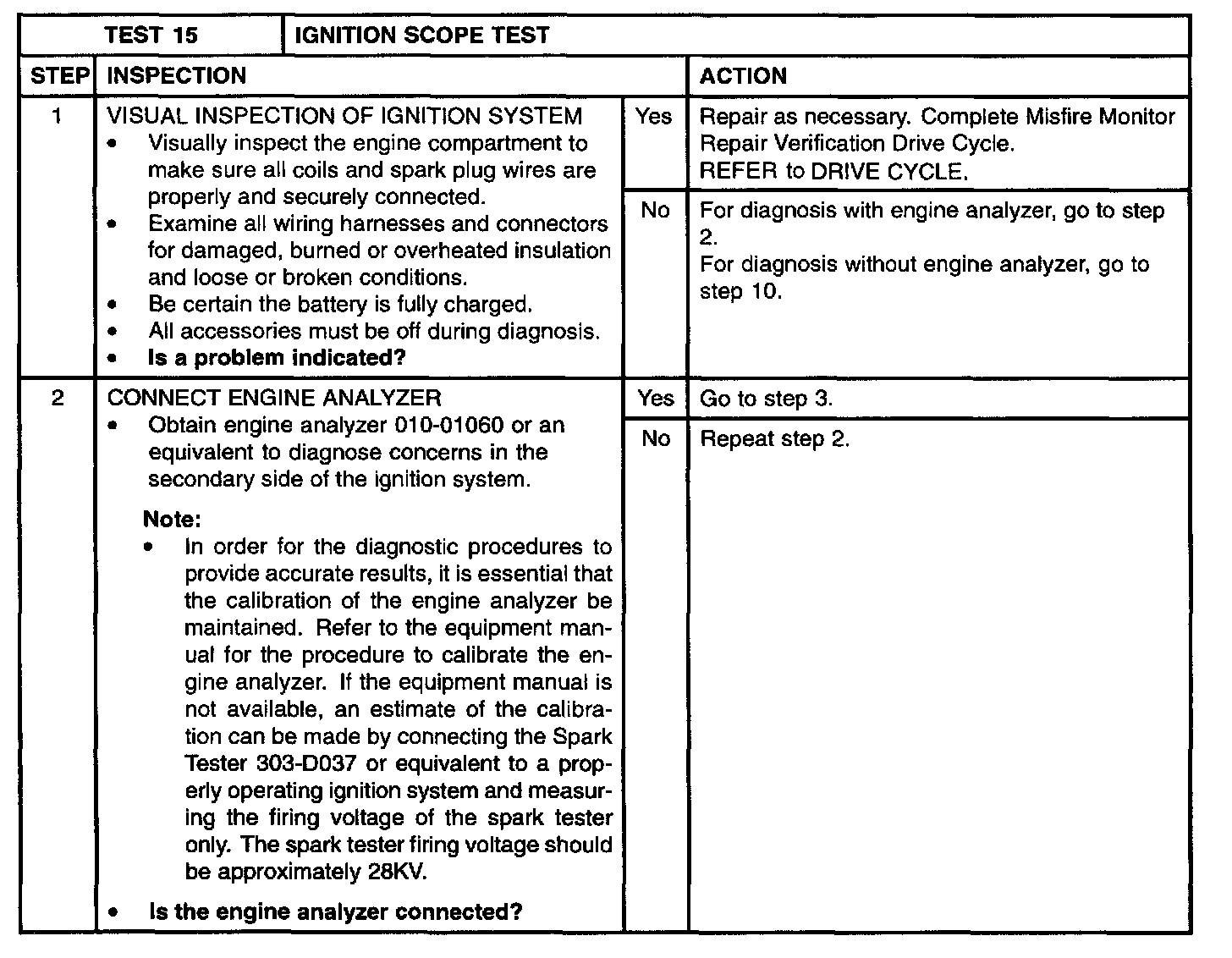

Step 1 - 2:

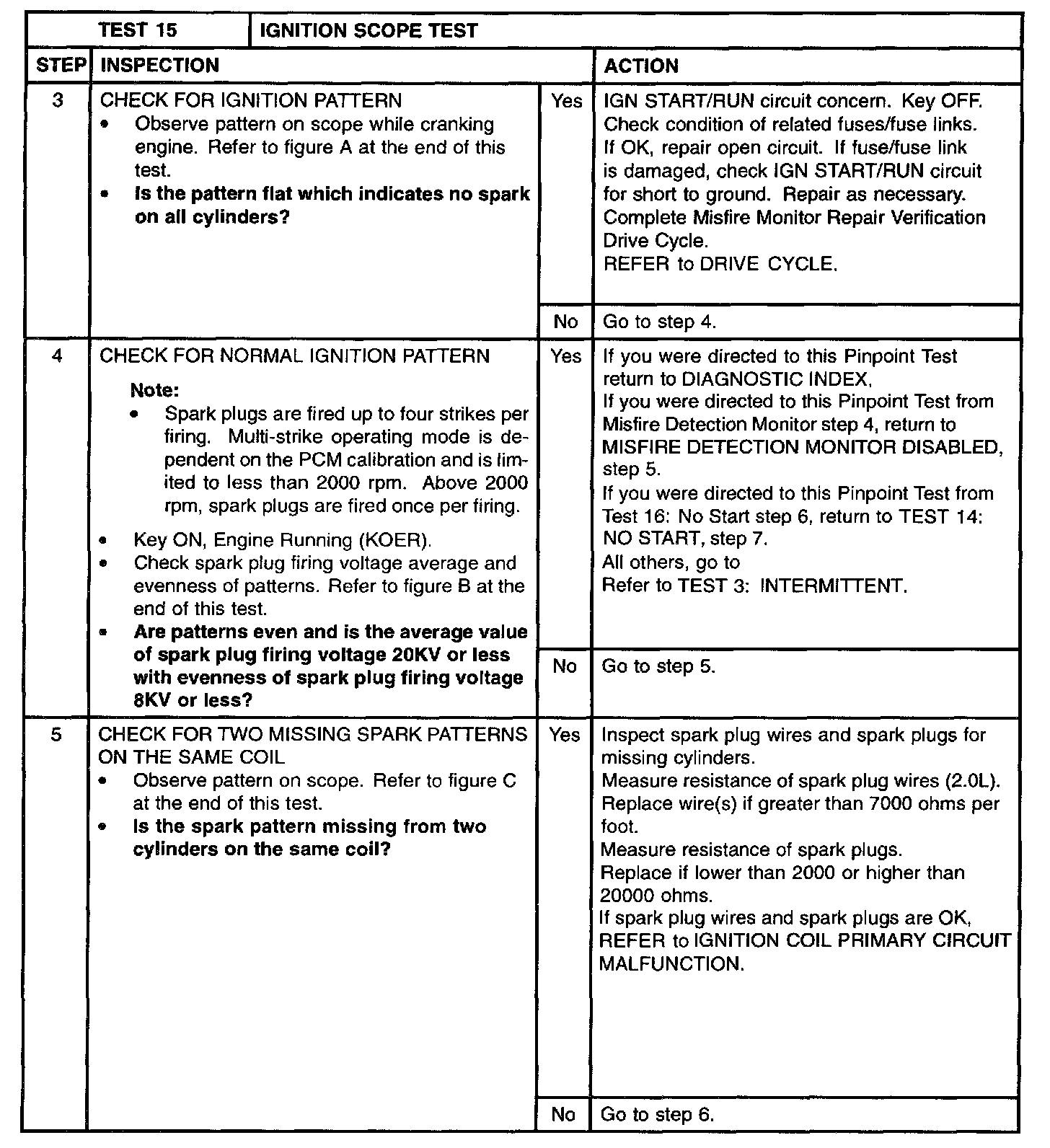

Step 3 - 5:

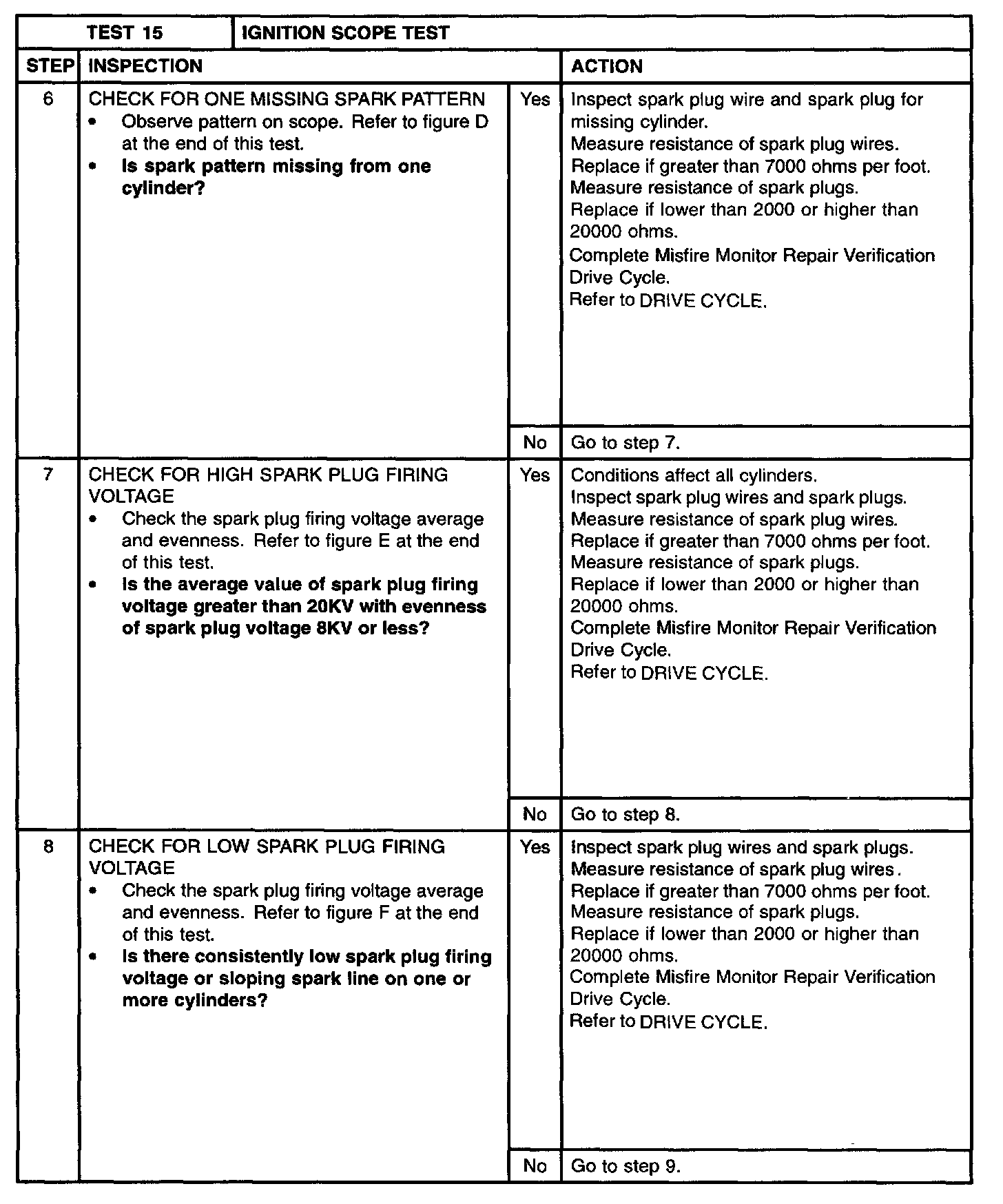

Step 6 - 8:

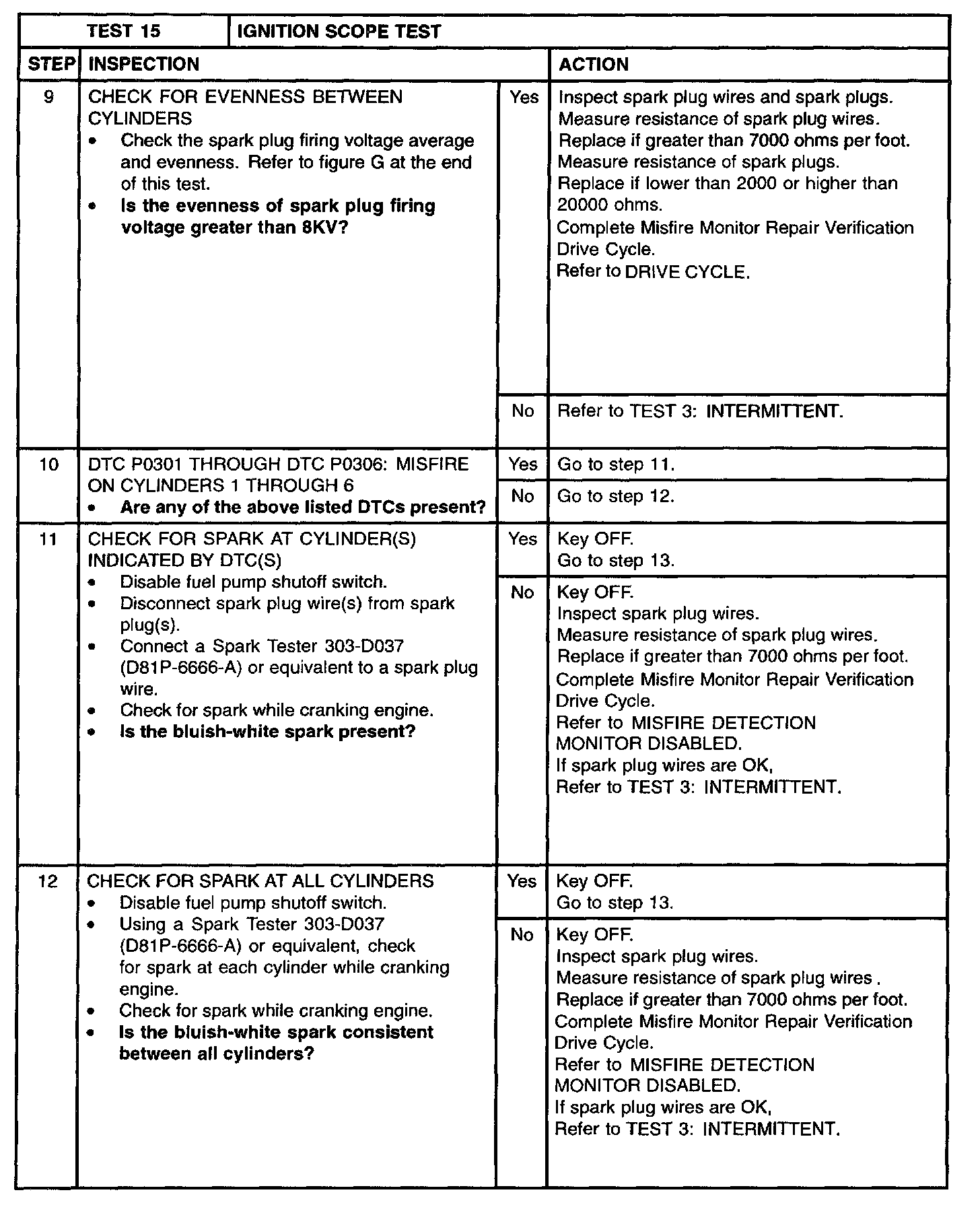

Step 9 - 12:

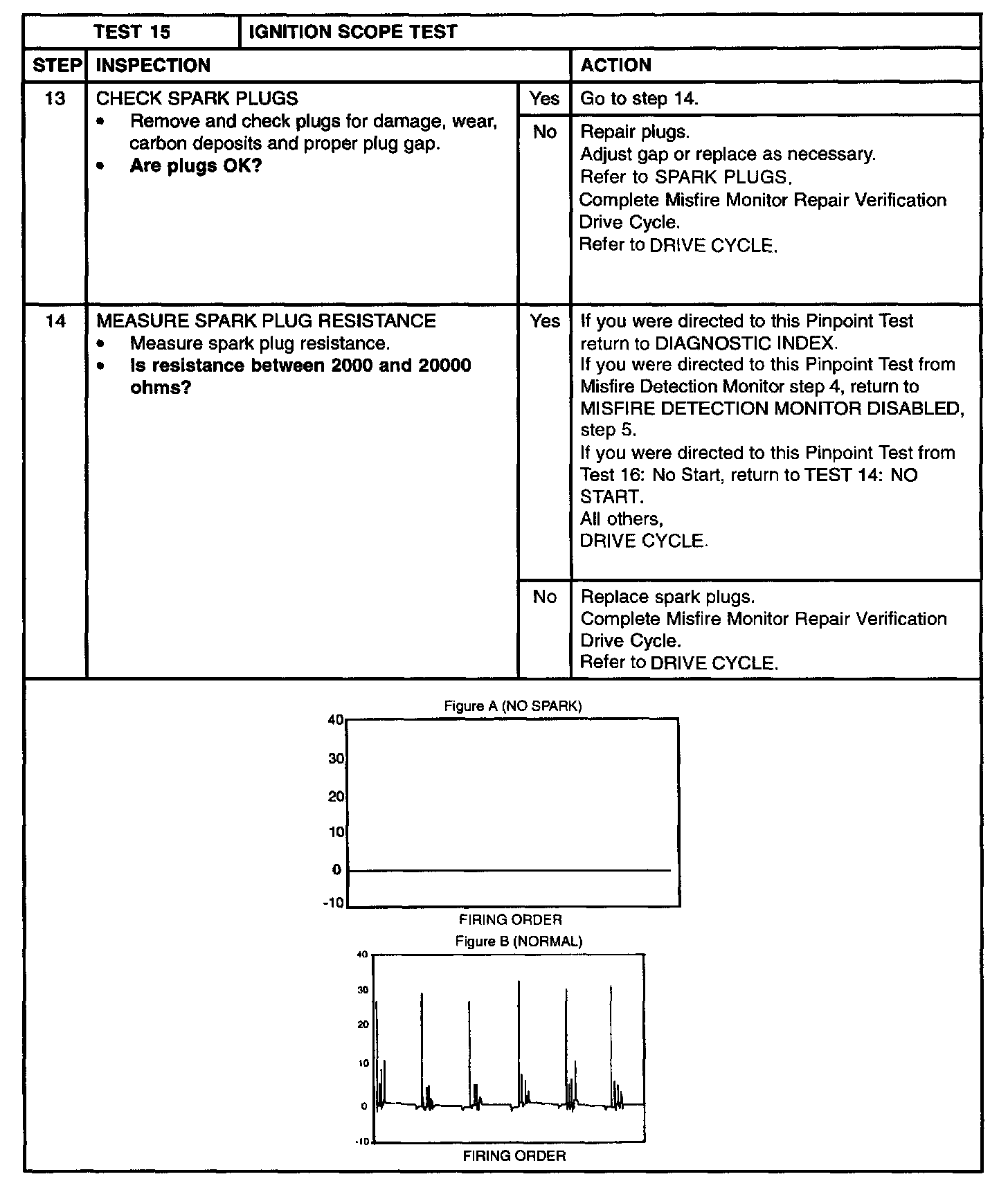

Step 13 - 14:

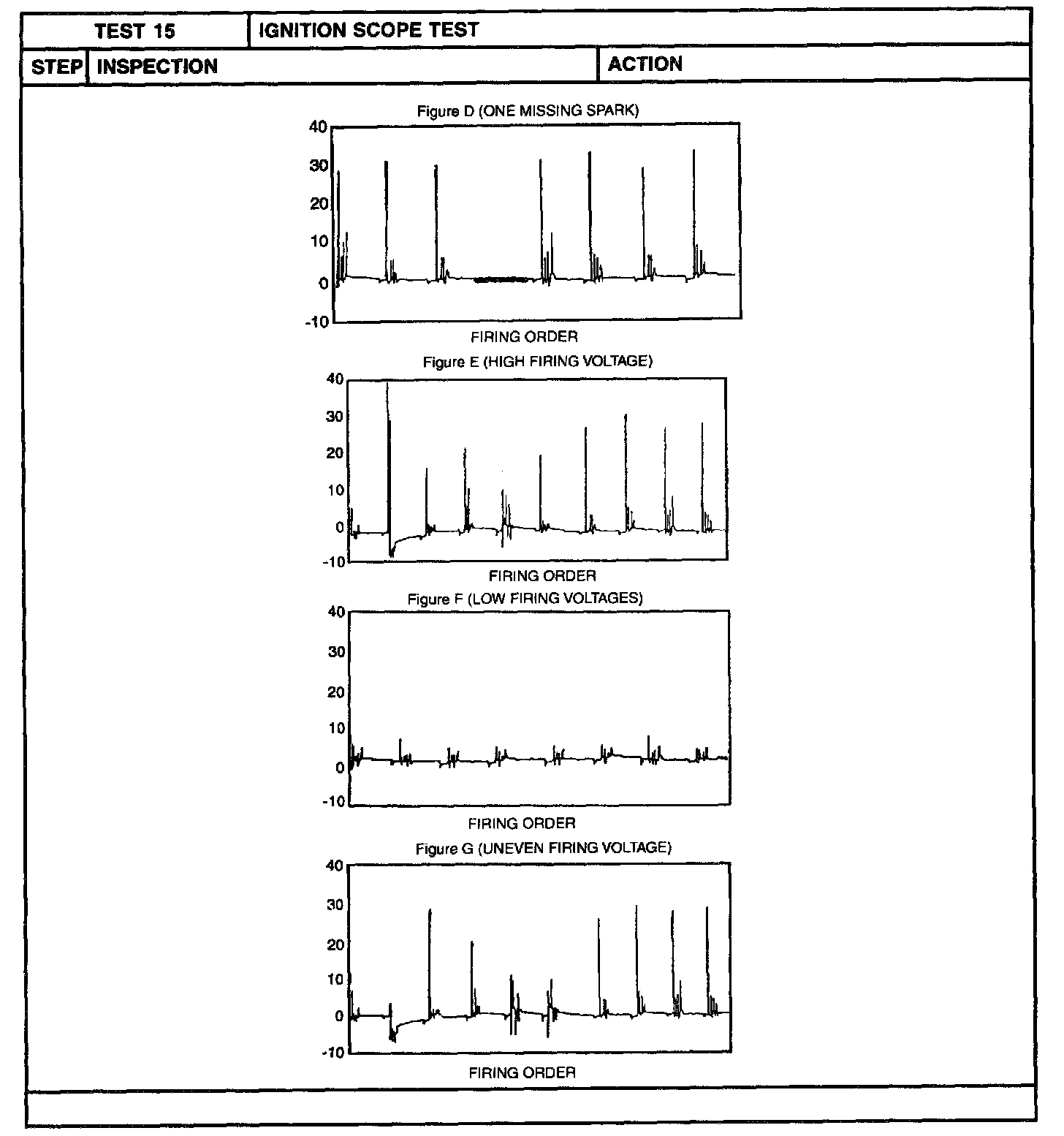

Step 14 (Contd.):
